Inputs and Outputs
22
7.2 Product Sensor / Encoder (CON2)

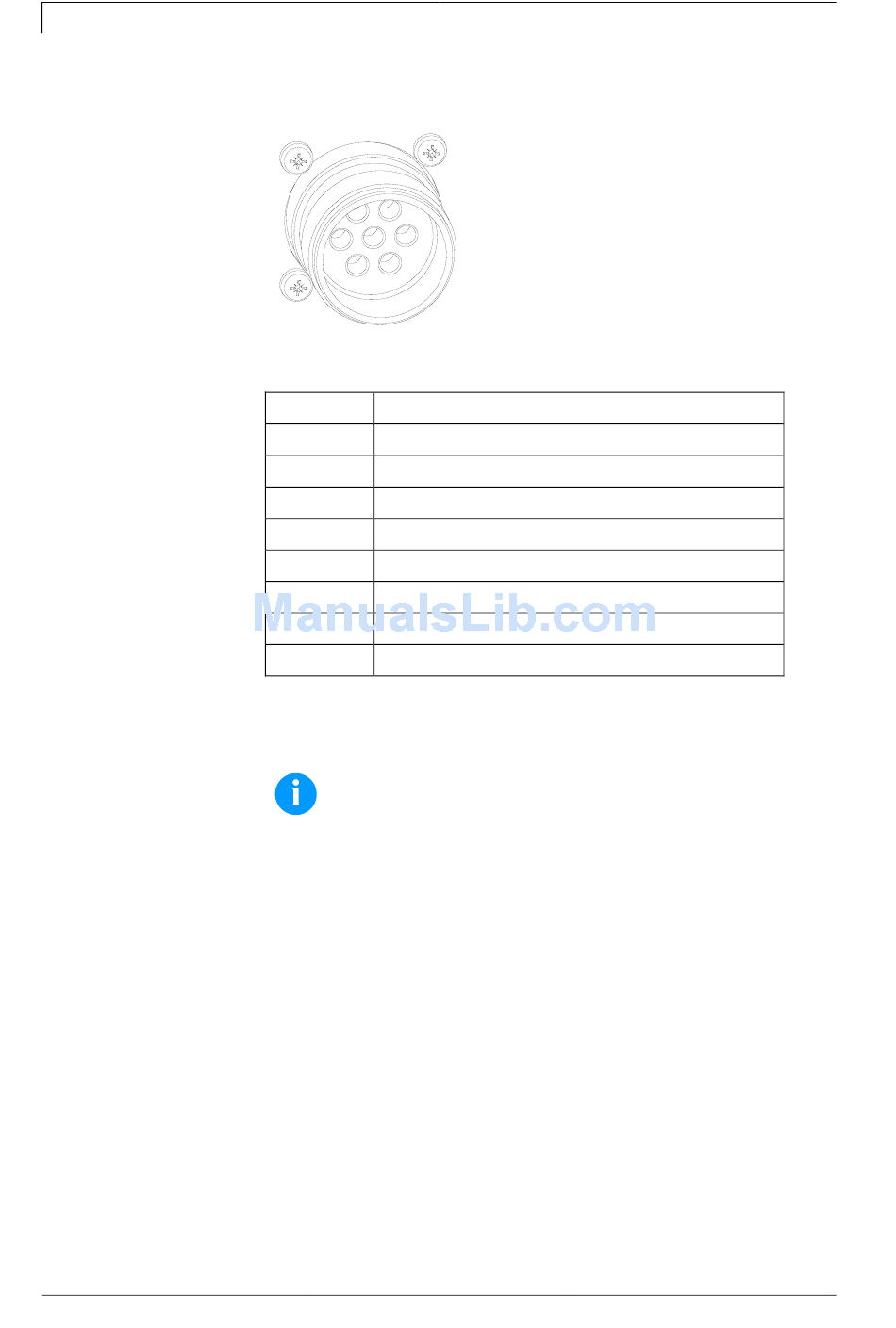

Figure 9
Pin
Description
1
GND internal
2
GND external
3
Encoder lane A
4
+ UB external (max. 30 VDC)
5
+ UB internal (approx. 24 VDC)
Input product sensor (PS)/Print start – Port 1
6
7
Encoder lane B
Casing
Shielding
Max. load current: 100 mA
NOTICE!
Pin 1 and Pin 2 must be bypassed if the encoder and/or
product sensor should be operated with the voltage supply of
the control unit.
See connection examples page 24 and 25.
Operating Manual
Dynacode IP Series
08.16
