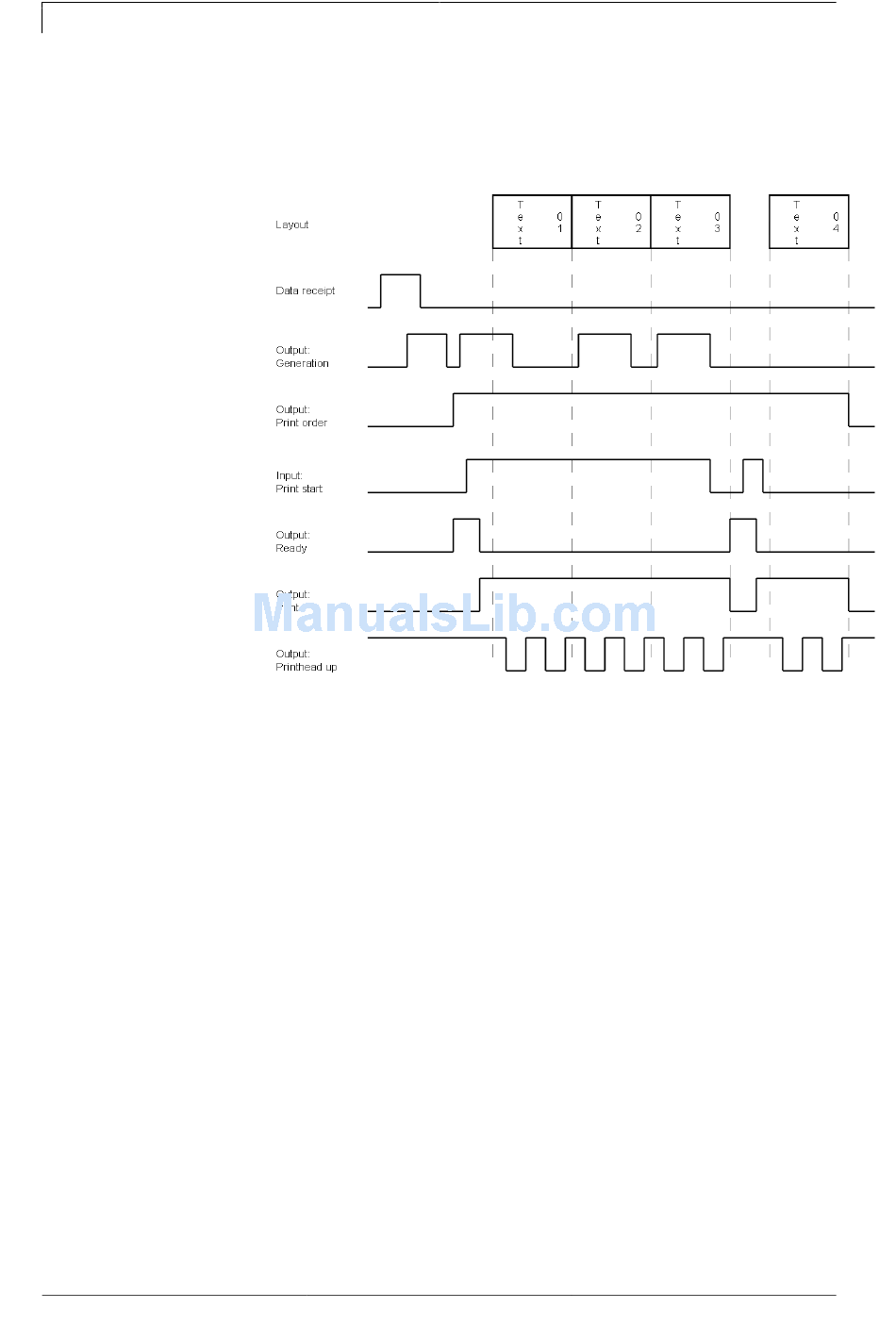

Signal Diagrams
Dispensing Mode:
Static
Layout
Print start/print
94
Number of layouts per print order: 4
Data memory: Off/standard/extended
Ribbon save: On
Trigger input print start: level High
4 layouts with counter.
In 'dispensing mode: static' the level of the start impulse is recognised
as valid start signal. In case the level is activated then the print is
continued immediately if the following layout is already generated.
After deleting the signal, the machine prints until the end of the current
layout and then the direct print module waits for the next start impulse.
