Dynacode IP Series
Unpack the direct
print module
Scope of delivery
08.16
8

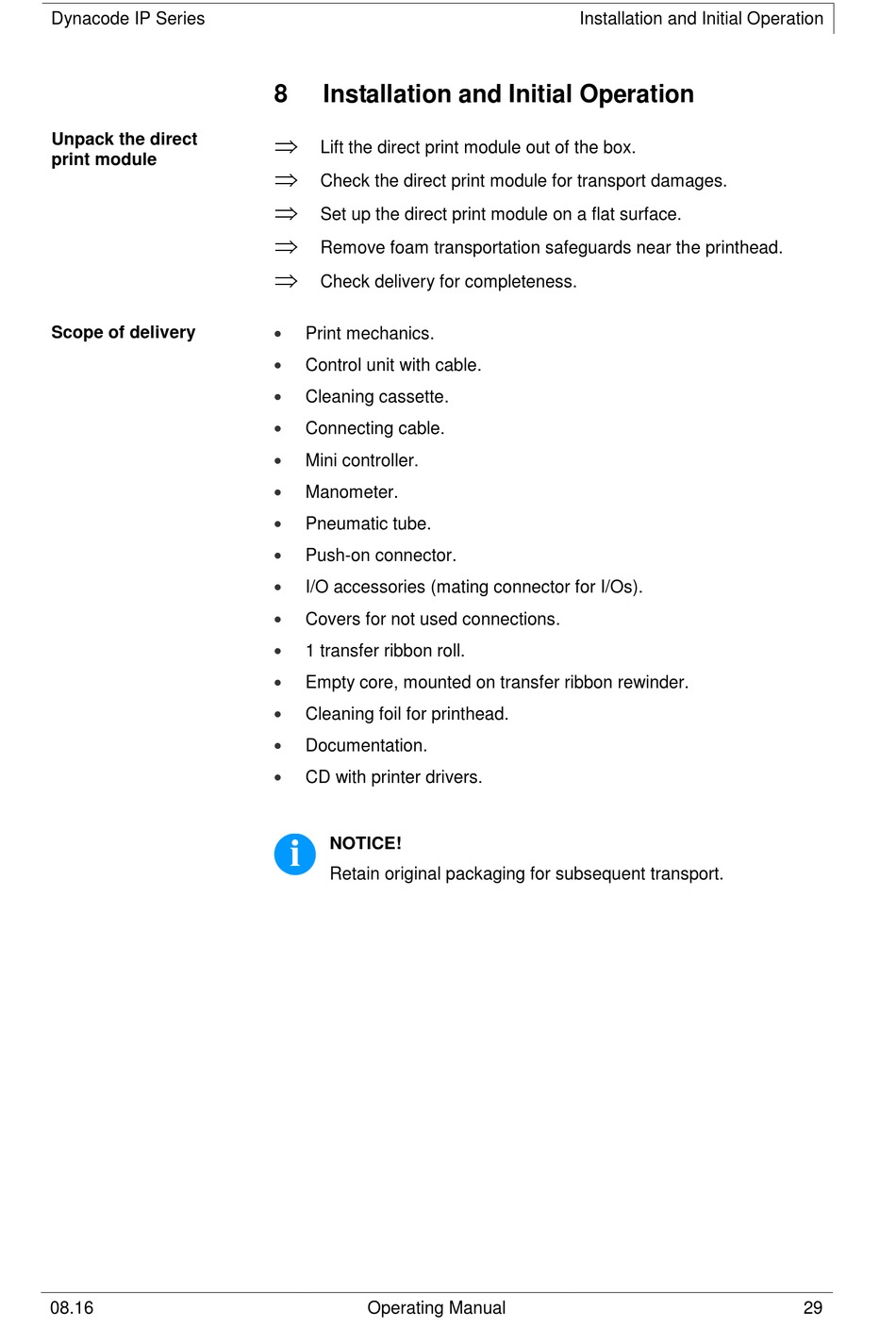

Installation and Initial Operation


Lift the direct print module out of the box.

Check the direct print module for transport damages.

Set up the direct print module on a flat surface.

Remove foam transportation safeguards near the printhead.

Check delivery for completeness.

Print mechanics.

Control unit with cable.

Cleaning cassette.

Connecting cable.

Mini controller.

Manometer.

Pneumatic tube.

Push-on connector.

I/O accessories (mating connector for I/Os).

Covers for not used connections.

1 transfer ribbon roll.

Empty core, mounted on transfer ribbon rewinder.

Cleaning foil for printhead.

Documentation.

CD with printer drivers.
NOTICE!
Retain original packaging for subsequent transport.
Operating Manual
Installation and Initial Operation
29
