Dynacode IP Series
Print offset
Print position
Layouts/cycle
Check speed on start
08.16
Press key to arrive the next menu item.

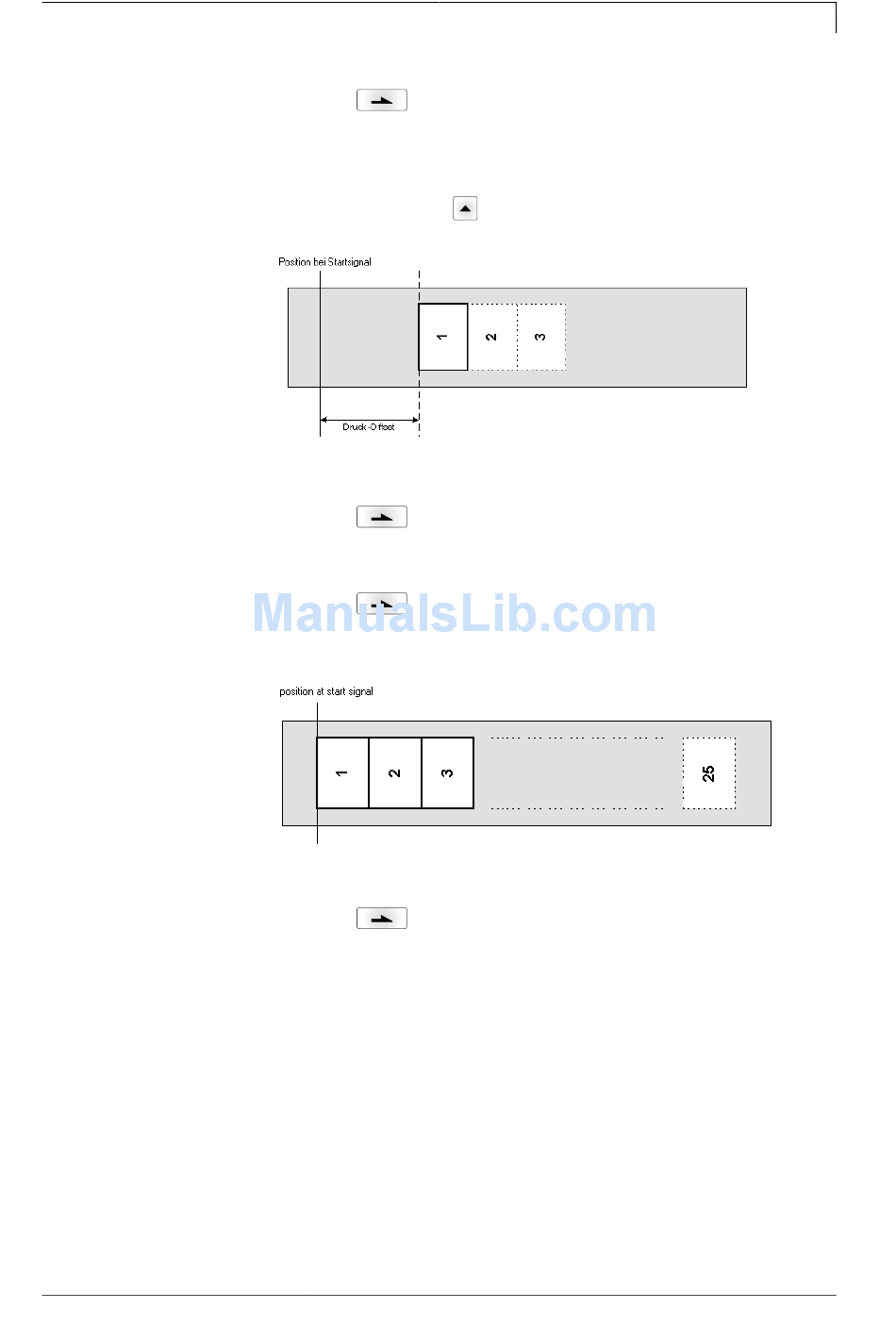

Indication of distance of the layout (res. the first layout in case more
layouts per cycles are to be printed) to the zero point of machine.
Settings possible either in mm or ms. Place cursor at the mm and/or
ms position, press key
Value range: 1 ... 999 mm
Figure 30
Press key to arrive the next menu item.
Indication of position of print carriage in mm.
Value range: 12 ... 93 mm
Press key to arrive the next menu item.
Indication of number of printed layouts per print start (cycle).
Value range: 1 ... 25.
Figure 31
Press key to arrive the next menu item.
Check material speed at print start signal
Off (Default): Material speed is only checked if the set offset value is
taken into consideration. It is possible to activate print start signal
although the material is not yet in move. However, until the end the
material speed has to be inside the valid speed sector as otherwise
the print order is cancelled.
On: Material speed is checked at print start signal. Is the material
speed outside of the valid speed sector then the start signal is
ignored.
Operating Manual
to change between mm and ms.
Function Menu
