Dynacode IP Series

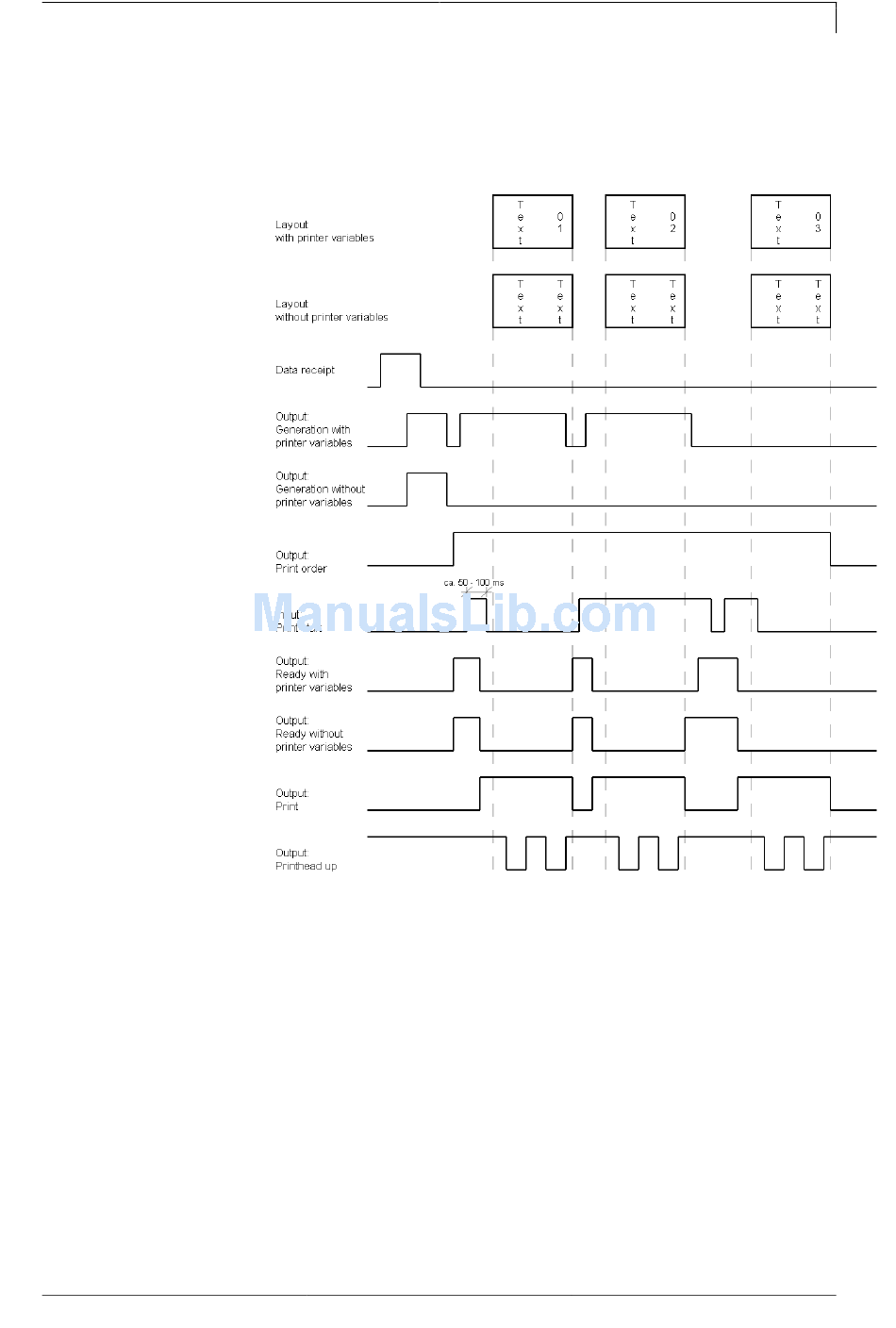

Layout/generation with
module variables
Layout/generation
without module
variables
Data receipt
Print order
Print start/print
08.16
Number of layouts per print order: 3
Data memory: Off/standard/extended
Ribbon save: On
Trigger input print start: increasing slope
The use of printer variables means that each layout is different and
the direct print module has to generate several parts of the layout
anew, e.g. variable counter.
Each of the 3 layouts which are to print are the same and therefore it
is only necessary to generate the layout once.
Because only 1 print order is send, the direct print module has only to
receive once.
As the print order consists of 3 layouts, the print order output is active
as long as all 3 layouts are printed.
In dispensing mode dynamic only the slope of the start impulse is
recognised as valid print start signal. However, the impulse should
have a minimum impulse width of 50 ms.
