Installation and Initial Operation
32

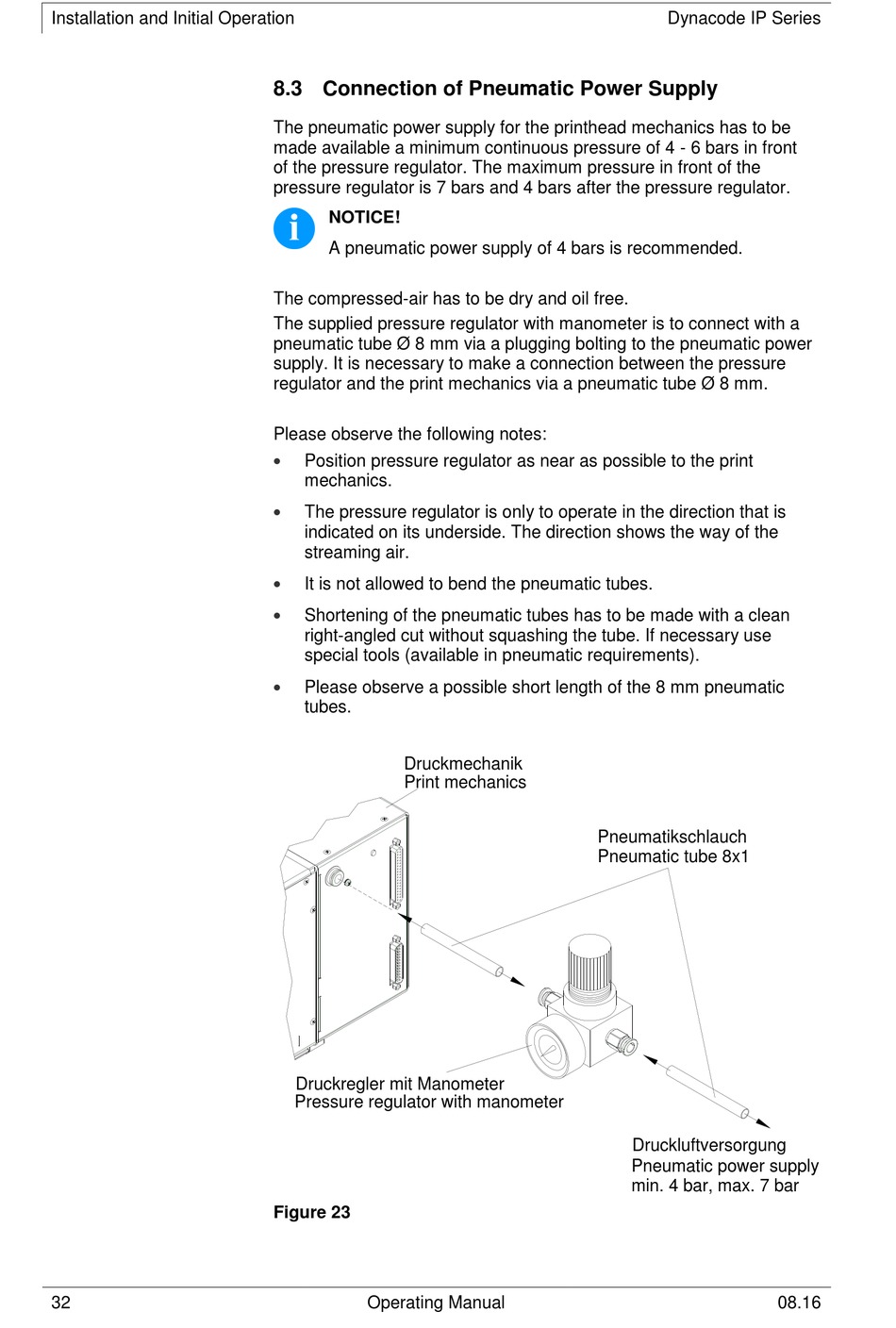

8.3 Connection of Pneumatic Power Supply

The pneumatic power supply for the printhead mechanics has to be
made available a minimum continuous pressure of 4 - 6 bars in front
of the pressure regulator. The maximum pressure in front of the
pressure regulator is 7 bars and 4 bars after the pressure regulator.
NOTICE!
A pneumatic power supply of 4 bars is recommended.
The compressed-air has to be dry and oil free.
The supplied pressure regulator with manometer is to connect with a
pneumatic tube Ø 8 mm via a plugging bolting to the pneumatic power
supply. It is necessary to make a connection between the pressure
regulator and the print mechanics via a pneumatic tube Ø 8 mm.
Please observe the following notes:

Position pressure regulator as near as possible to the print
mechanics.

The pressure regulator is only to operate in the direction that is
indicated on its underside. The direction shows the way of the
streaming air.

It is not allowed to bend the pneumatic tubes.

Shortening of the pneumatic tubes has to be made with a clean
right-angled cut without squashing the tube. If necessary use
special tools (available in pneumatic requirements).

Please observe a possible short length of the 8 mm pneumatic
tubes.
Druckmechanik
Print mechanics
Druckregler mit Manometer
Pressure regulator with manometer
Figure 23
Operating Manual
Dynacode IP Series
Pneumatikschlauch
Pneumatic tube 8x1
Druckluftversorgung
Pneumatic power supply
min. 4 bar, max. 7 bar
