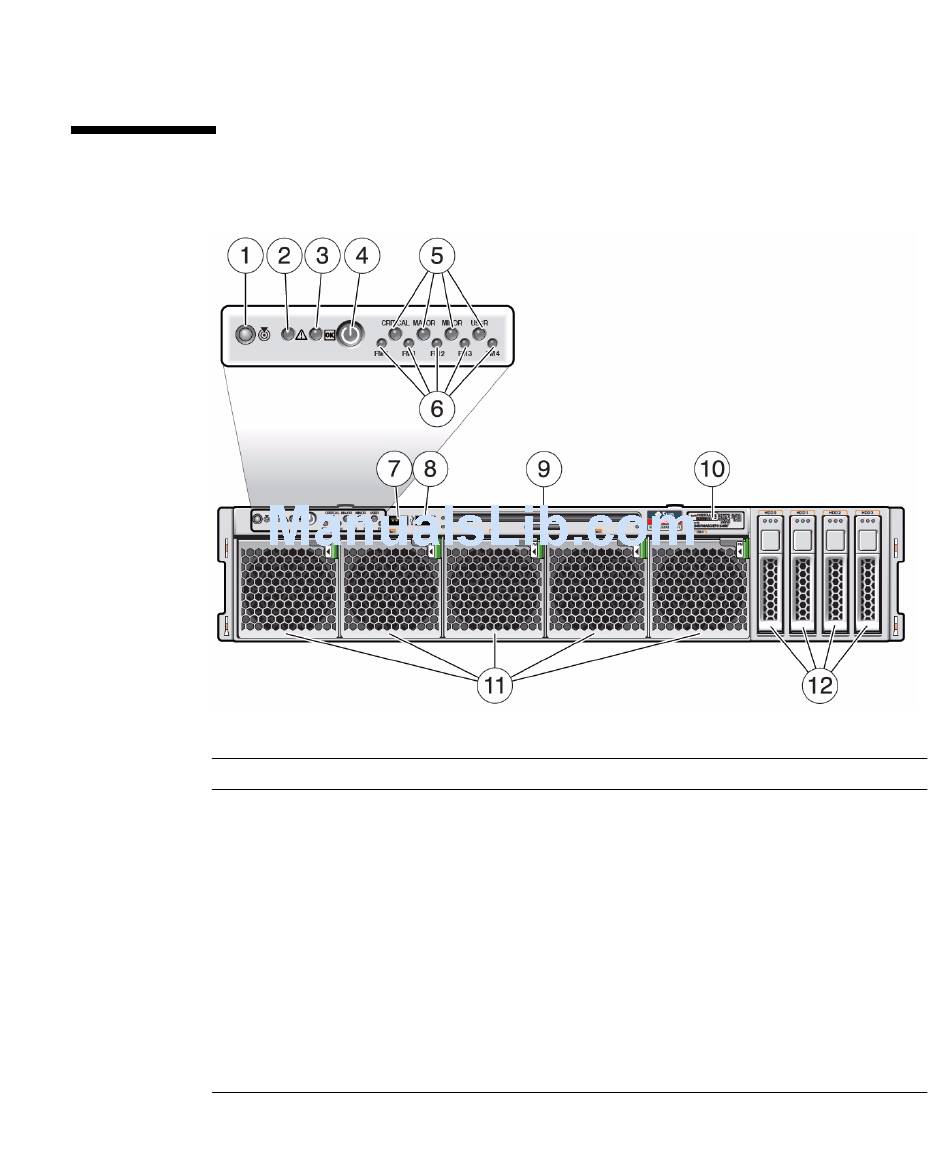

Front Panel Components
No.
Description
1
Locator LED/Locator button: white
2
Service Action Required LED: amber
3
Main Power/OK LED: green
4
Power button
5
Alarm LEDs: Critical (red), Major (red),
Minor (amber), and User (amber)
6
Fan Fault (FM 0 to FM4) LEDs: green
(normal), amber (fault)
7, 8
USB 2.0 port (USB 3, USB 4))
9
DVD drive
Link
Server Service, interpreting diagnostic LEDs
Server Service, interpreting diagnostic LEDs
Server Service, interpreting diagnostic LEDs
Server Service, interpreting diagnostic LEDs
"Alarm Port" on page 68
Server Service, serving the fan modules
"USB Ports" on page 72
Server Service, interpreting diagnostic LEDs
Understanding the Server
