Pin
Signal Description
1
RESET0+
2
RESET0-
3
RESET1+
4
RESET1-
5
ALARM0_NO
6
ALARM0_NC
7
ALARM0_COM
8
ALARM1_NO

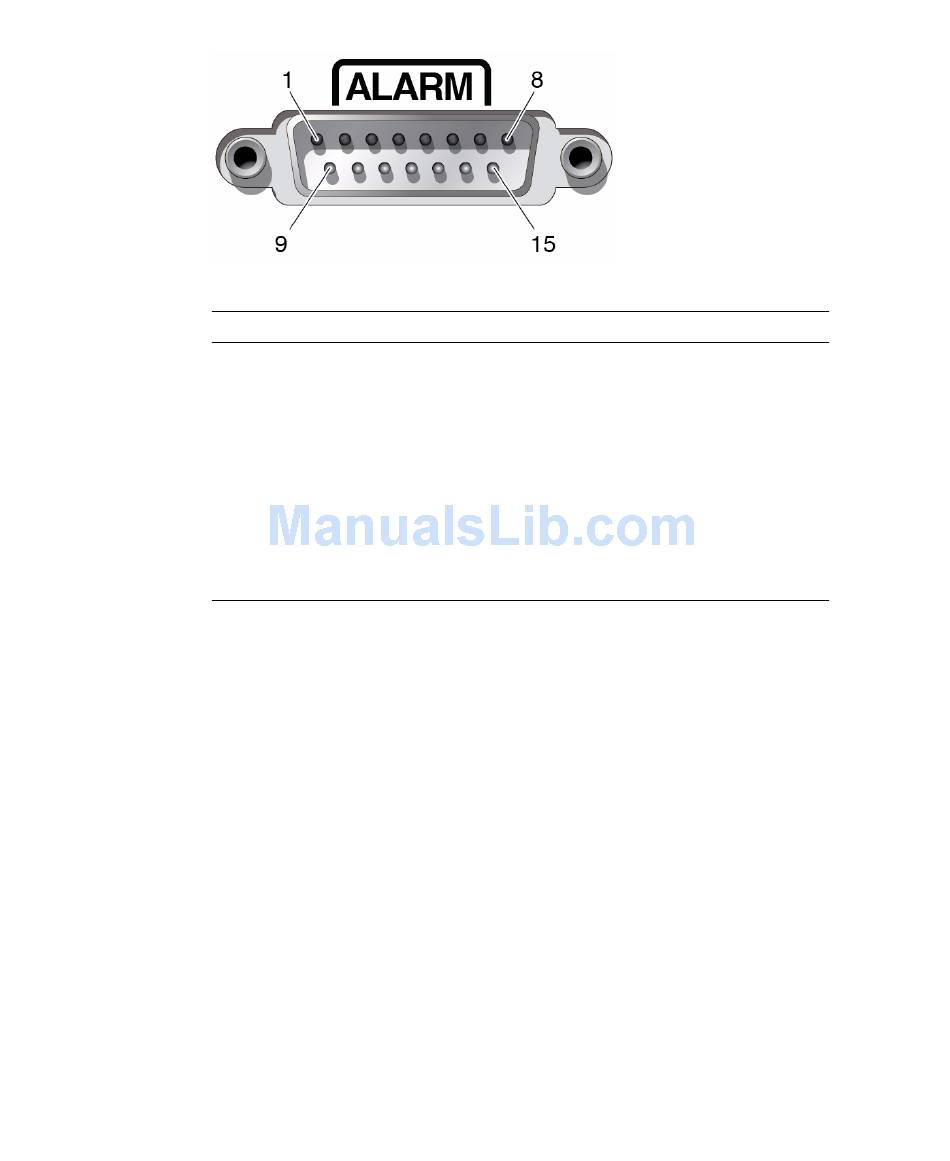

Each alarm has a corresponding alarm LED on the front panel:
ALARM0 and the Critical LED
■
ALARM1 and the Major LED
■
ALARM2 and the Minor LED
■
ALARM3 and the User LED
■
Related Information
"Rear Panel Components" on page 6
■
"Front Panel Components" on page 5
■
"Connect Other Data Cables" on page 77
■
Pin
Signal Description
9
ALARM1_NC
10
ALARM1_COM
11
ALARM2_NO
12
ALARM2_NC
13
ALARM2_COM
14
ALARM3_NO
15
ALARM3_COM
CHASSIS
FRAME GND
Connecting Cables
69
