Install The Server (19-Inch, 2-Post Hardmount Rackmount Kit) - Sun Oracle NETRA SPARC T4-1 Installation Manual

▼ Install the Server (19-Inch, 2-Post Hardmount
Rackmount Kit)
Note – The 19-inch, 2-post rackmount kit supports rack web thicknesses (the width
of the rack post) of 76.20 mm (3 in.), 101.6 mm (4 in.), and 127 mm (5 in.).
1. Read the Cautions for racks.
See

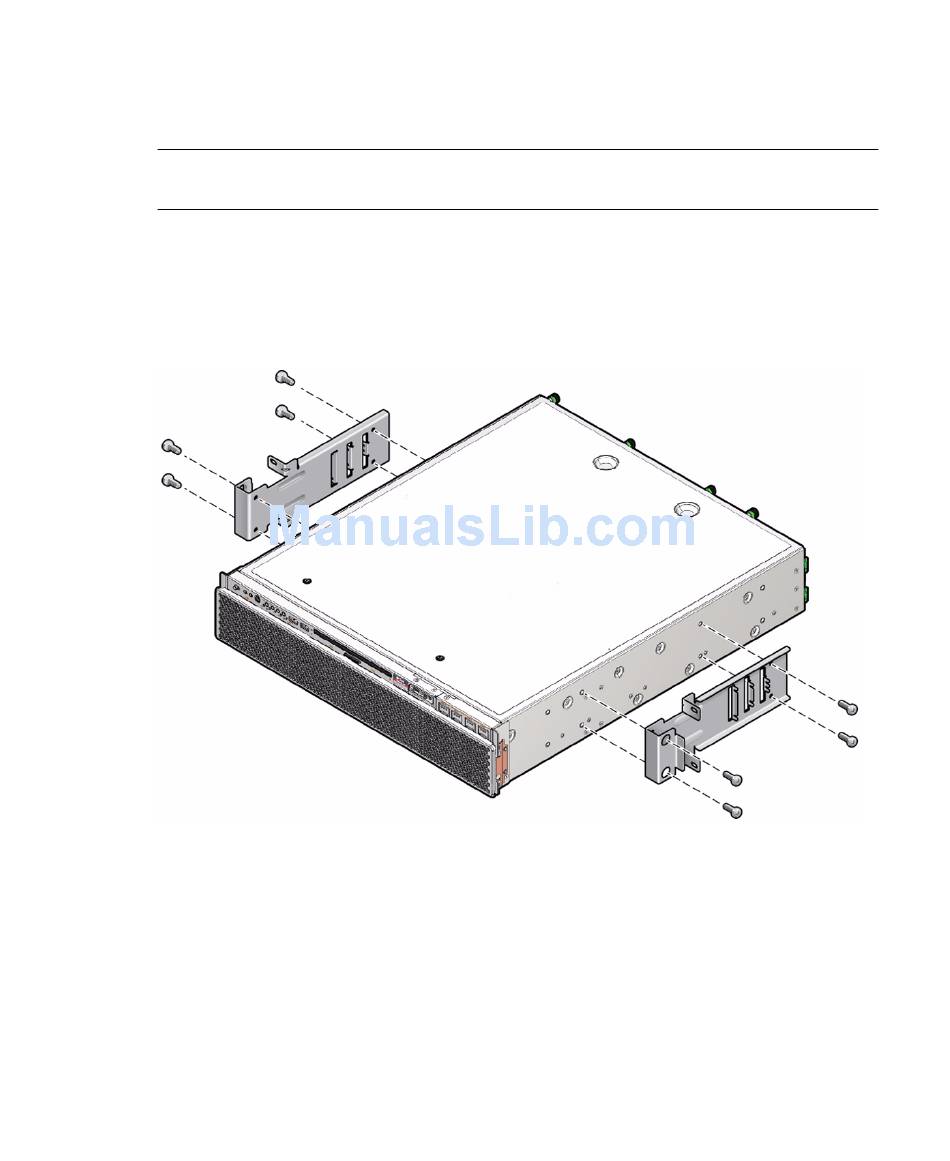

2. Using four of the M5 x 7 SEM screws for each side bracket, secure the side
brackets to the sides of the server.
3. Lift the server into the rack.
4. Using two screws for each bracket, secure the front of the server to the front of
the rack.
The size of the screws varies, depending on your rack.
54 Netra SPARC T4-1 Server Installation Guide • January 2013
"Rack Cautions" on page 24.
