▼ Install the Server (600-mm, 4-Post Hardmount
Rackmount Kit)
Note – The front-to-back rail spacing must be at least 392 mm (15.43 in.) and not
more than 504 mm (19.84 in.) from the outside face of the front rail to the outside face
of the back rail.
1. Read the Cautions for racks.
See

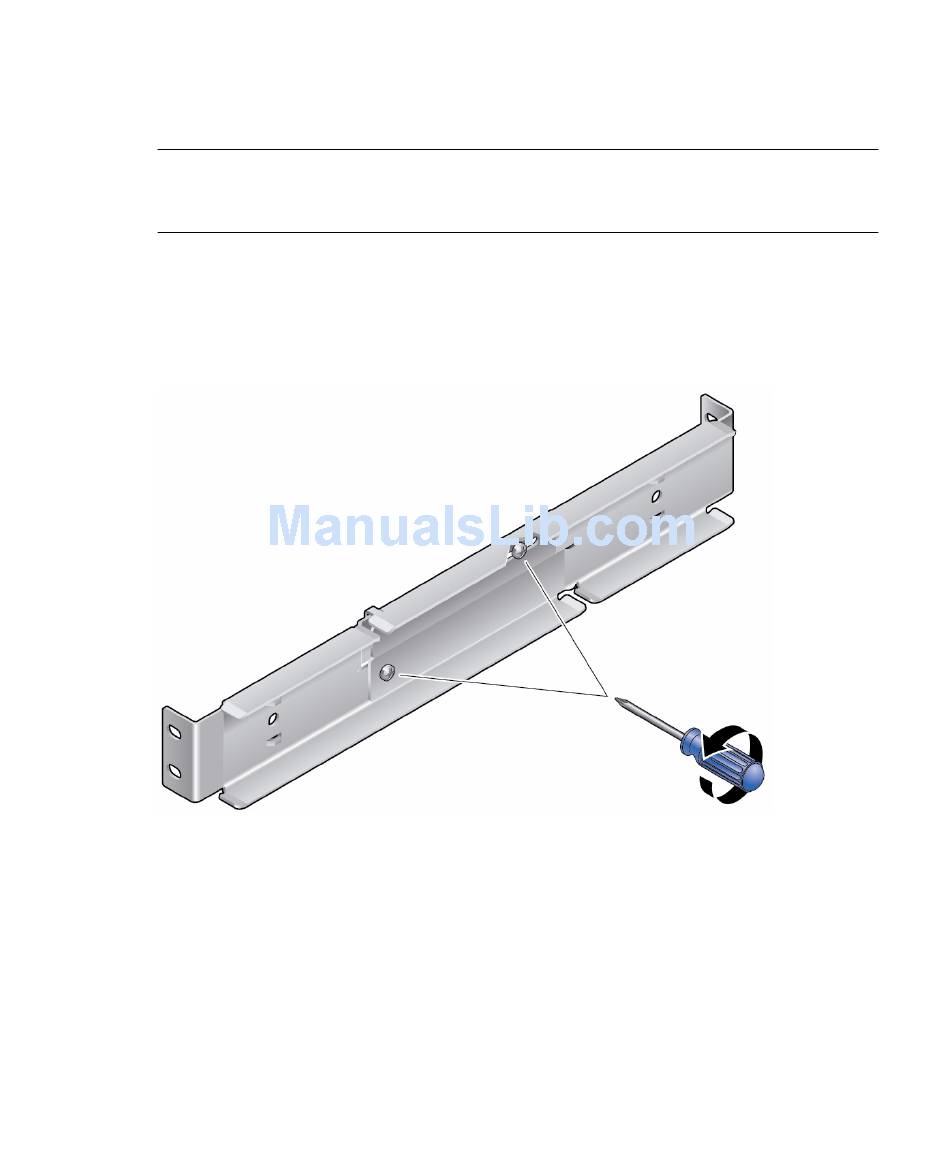

2. Loosen the two screws at the middle of each adjustable rail so that you can
extend the adjustable rail.
3. Lift one of the adjustable rails to the desired location in the rack.
Using two screws, secure the front of the rail in the rack. The size of the screws
varies, depending on your particular rack.
38 Netra SPARC T4-1 Server Installation Guide • January 2013
"Rack Cautions" on page 24.
