NOTE:
This download method requires firmware with the .prg extension FILENAME.prg.
1. Make sure the printer is powered up, in ONLINE mode, and that the Ethernet cable is connected.
2. Get the IP address from the front panel ONLINE screen (or under Network
in Settings
).
3. Enter the printer's IP address in your browser (e.g., http://10.224.5.21).
4. When prompted for a user name and password, enter "root" for user name and click OK.
5. Click "System" in the Configuration box.

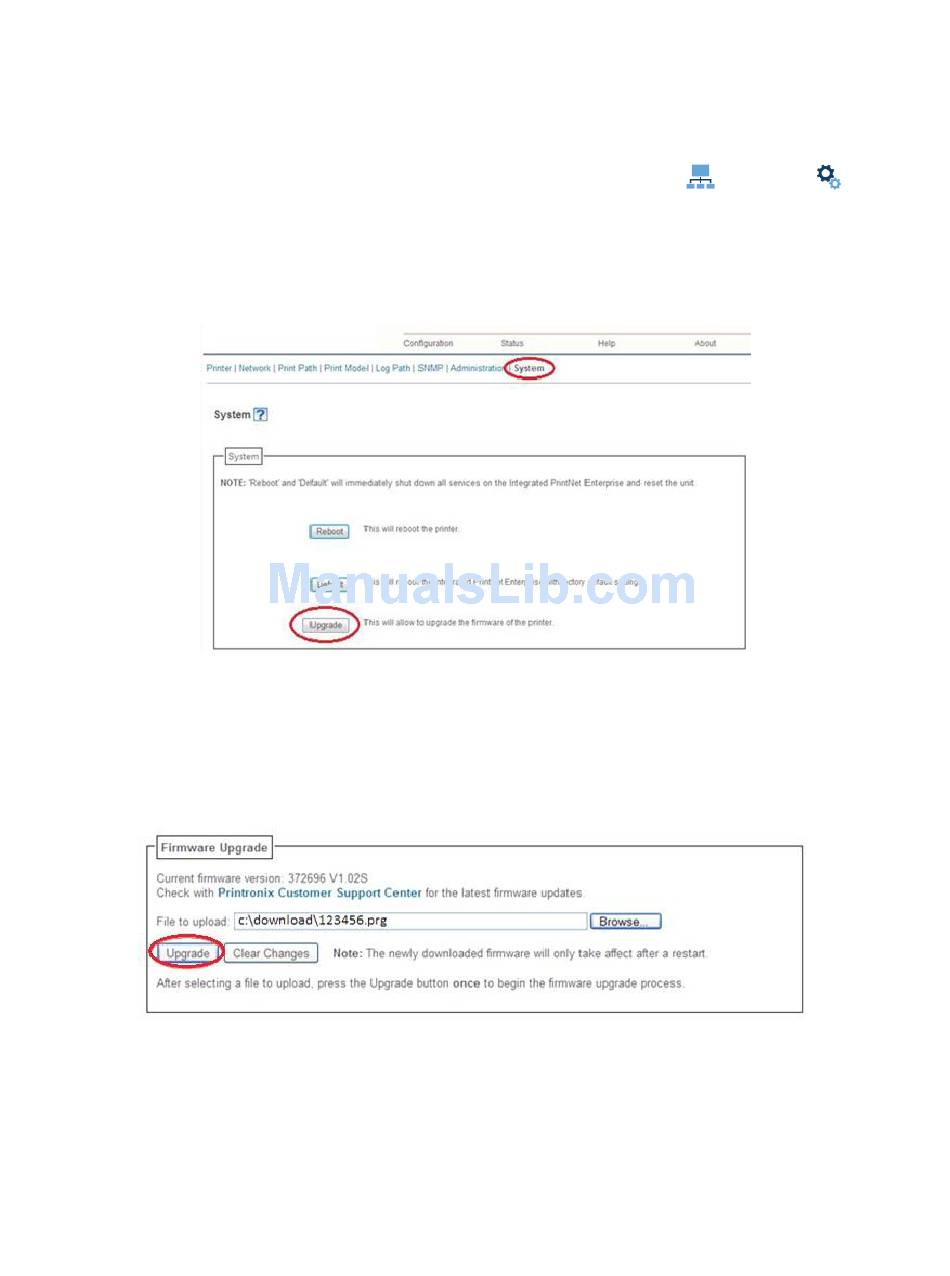

Figure 2 System Configuration Upgrade
6. Click the "Upgrade" button.
7. Browse to the directory or enter FILENAME.prg in the "File to upload" field and click
"Upgrade". A Warning message opens.
Figure 3 Uploading Firmware File for Upgrade
8. Click "Ok" to continue. After a few minutes, you are prompted to reboot.
9. Click "Yes".
210
