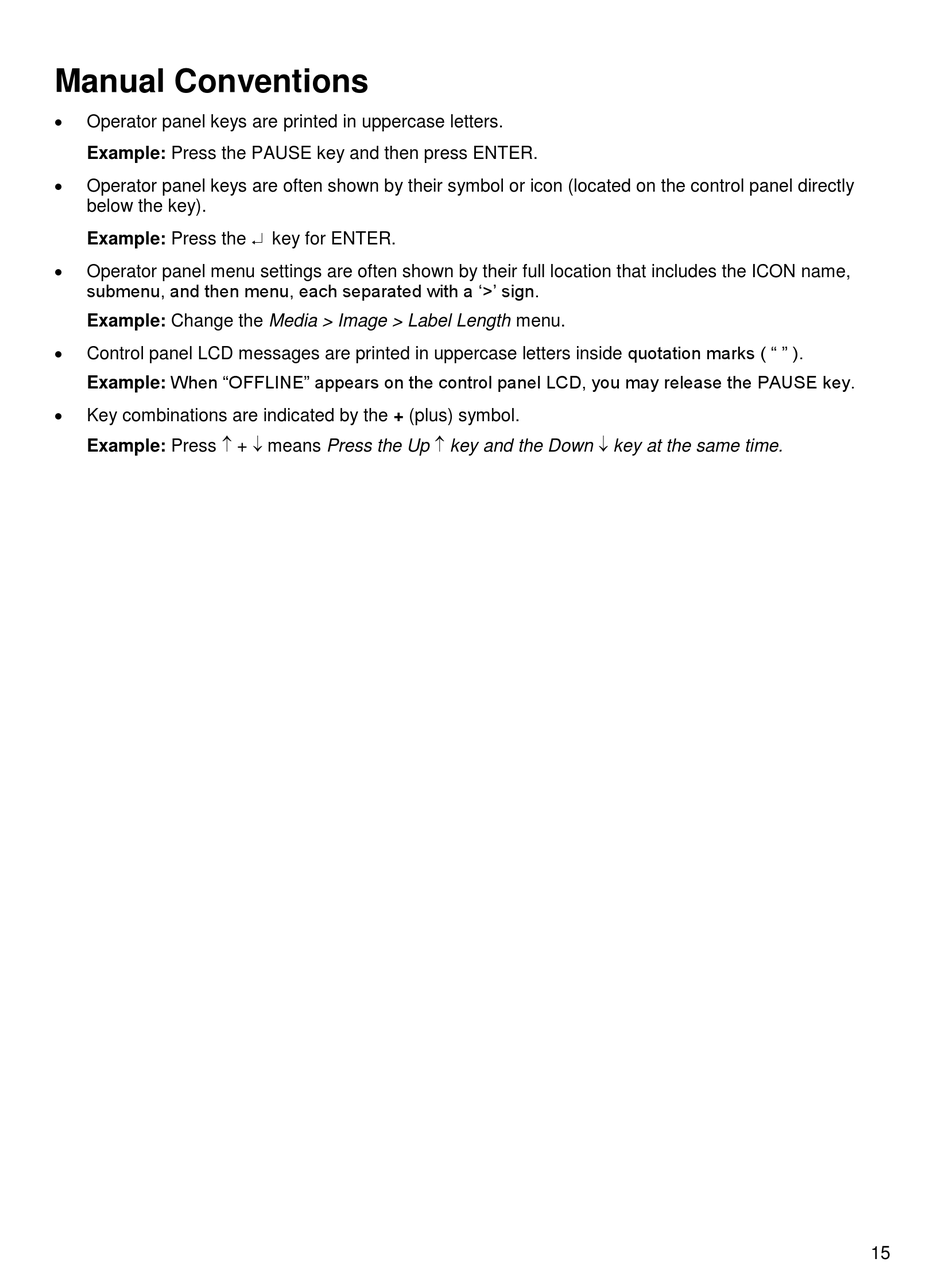

Manual Conventions


Operator panel keys are printed in uppercase letters.
Example: Press the PAUSE key and then press ENTER.

Operator panel keys are often shown by their symbol or icon (located on the control panel directly
below the key).
Example: Press the key for ENTER.

Operator panel menu settings are often shown by their full location that includes the ICON name,
submenu, and then menu, each separated with a '>' sign.
Example: Change the Media > Image > Label Length menu.

Control panel LCD messages are printed in uppercase letters inside quotation marks ( " " ).
Example: When "OFFLINE" appears on the control panel LCD, you may release the PAUSE key.

Key combinations are indicated by the + (plus) symbol.
Example: Press + means Press the Up  key and the Down key at the same time.
