Field
Gateway
DNS Server 1
DNS Server 2
NTP Server
Log Server
DHCP or Static
Speed
Link Up
Net Diag
SNMP

4.10.1 Network Diagnostics

Setup > Network > Net Diag
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide
Description
Current and configured gateway or router, which connects to other
networks (for example, to the Internet).
Domain Name Server 1, current and configured
Domain Name Server 2, current.
Network Time Protocol server, configured, where the correct time
will be obtained.
Server where the log files will be stored.
DHCP mode means that when the RS20i is connected to the
network, an IP Address is automatically assigned to it.
The boxes for IP Address, Mask, Broadcast Addr, Gateway and
DNS Server 1 are filled in.
In Static IP mode, the installer must assign the IP Address, Mask,
Gateway and DNS Server 1.
Auto, 100 MB/s or 10 Mb/s
When the RS20i is successfully connected to the network, the text
Link Up will be displayed along with the connection type. The
options are: 10Mbps Full-duplex or 100Mbps Full-duplex
See 4.10.1 Network Diagnostics, page 99.
See 4.10.2 SNMP Agent, page 100.

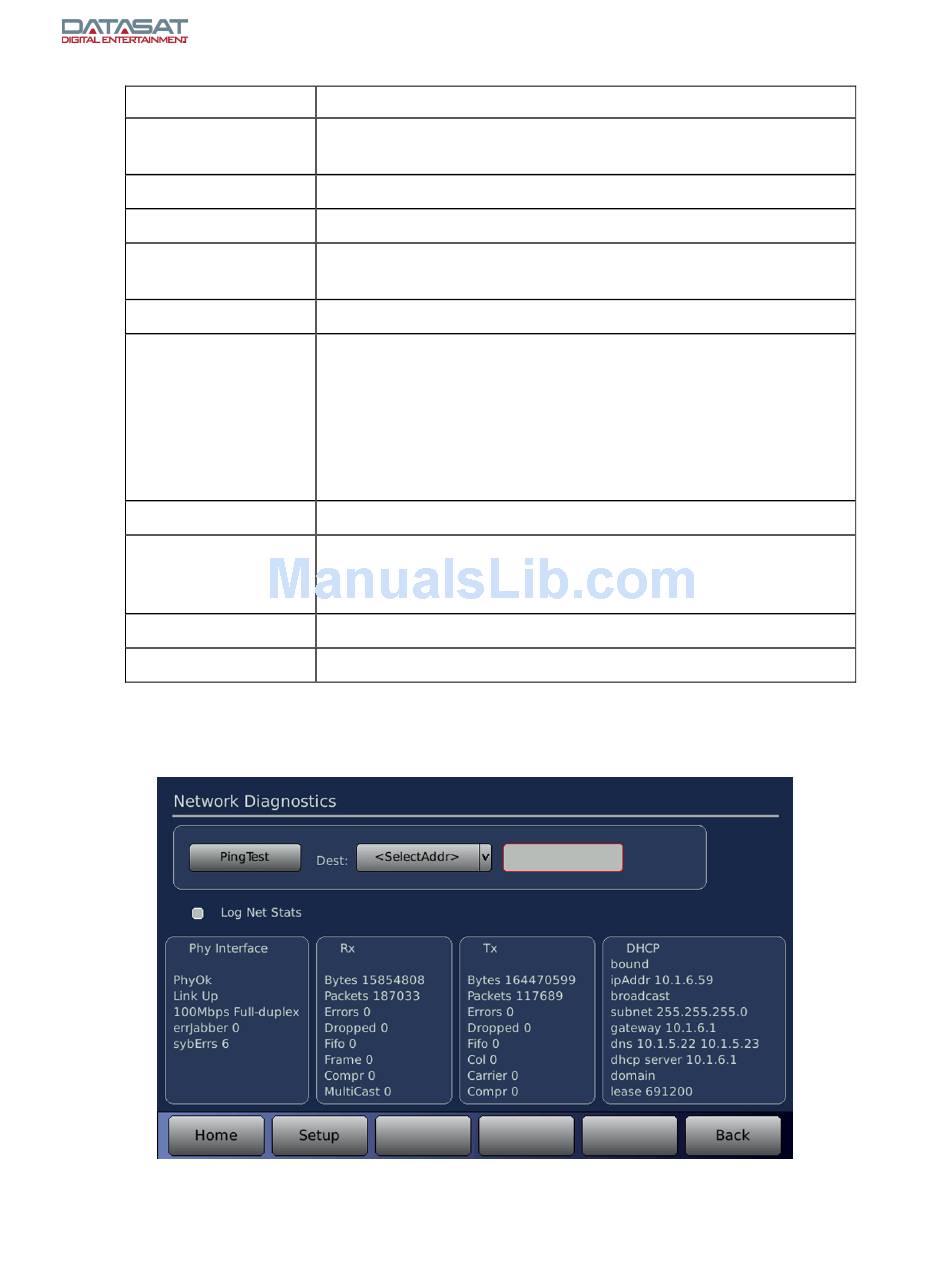

Figure 67. Network Diagnostics Screen
Page 99
Document # 9301H52900 Ver. 1.02
