Clear EQ on selected channel includes two check boxes to enable which settings are included in the
clear function (1) third octave EQ including bass and treble and/or (2) parametric filters. The text on the
right will reflect the selection on the left. Select the channel using the drop down list, then touch Clear to
complete the process.
Clear EQ on all channels clears third octave, bass, treble and parametric filters on all channels.
4.4.6

Audio Levels

The Audio Levels screen is used for these functions:
•
Set channel levels. Turn on the pink noise on any single channel to check and adjust the level.
With Master Volume control set to -15dB the output on each speaker should be 85dBC when using
an SPL meter.
•
Check channel phase. To do this, enable pink noise on more than one channel and check the
difference in sound level with an SPL meter or RTA.
•
General testing or troubleshooting. The installer may diagnose a problem by muting selected
channels while playing content, or playing pink noise on selected channels.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

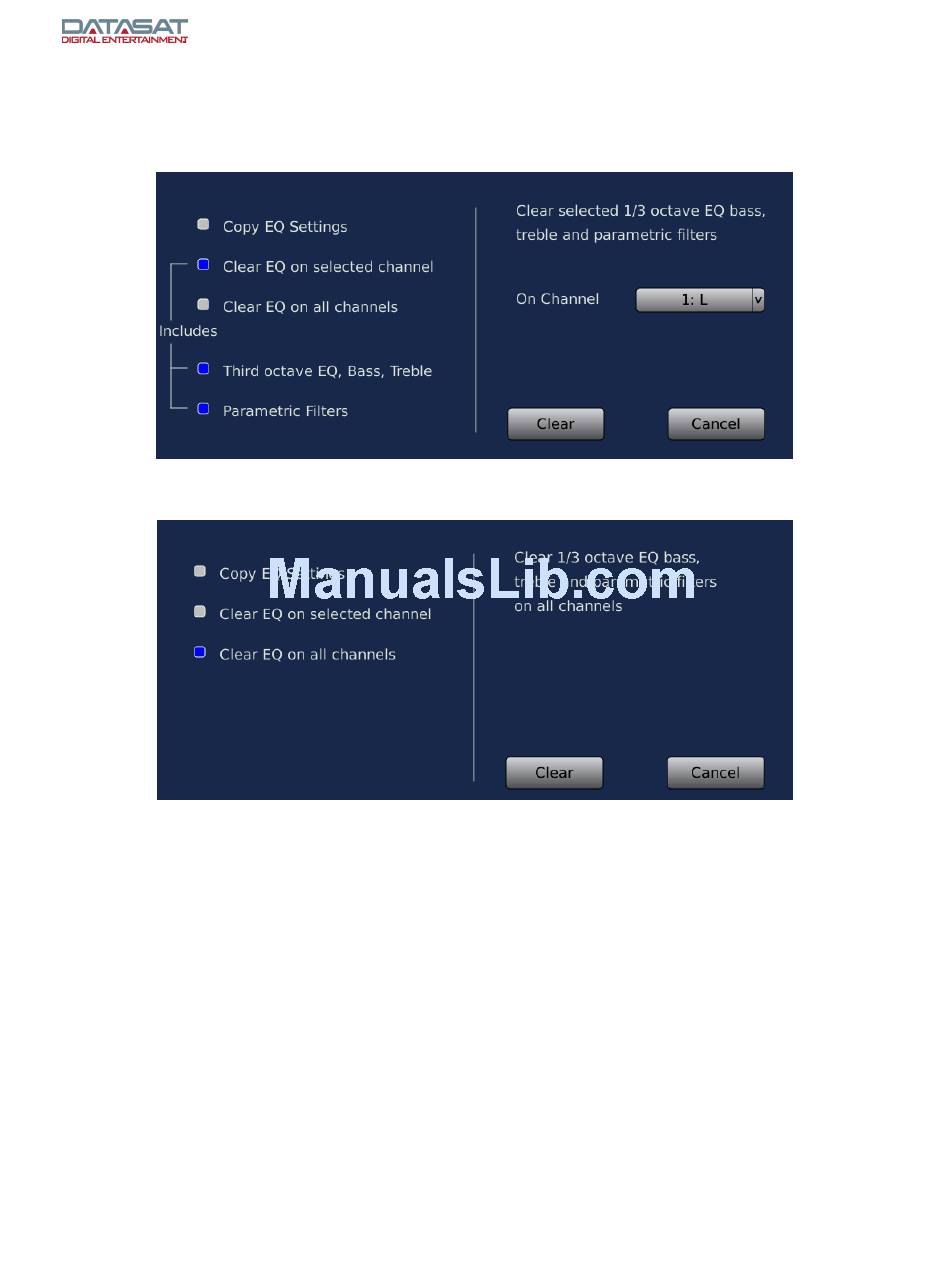

Figure 40. Clear EQ on selected channel
Figure 41. Clear EQ on all channels
