4.9 System Setup (2)

The second System Setup screen contains additional settings. To access this screen, touch the More
button in the Setup screen.
Setup > System > More
Date/Time – Touch this button to open the screen for setting the date and time. See 4.9.3 Date/Time,
page 97.
The settings available on this screen are described in this table.
Table 35. System Setup (2)
Setting
Power-On State
Dirac Version
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

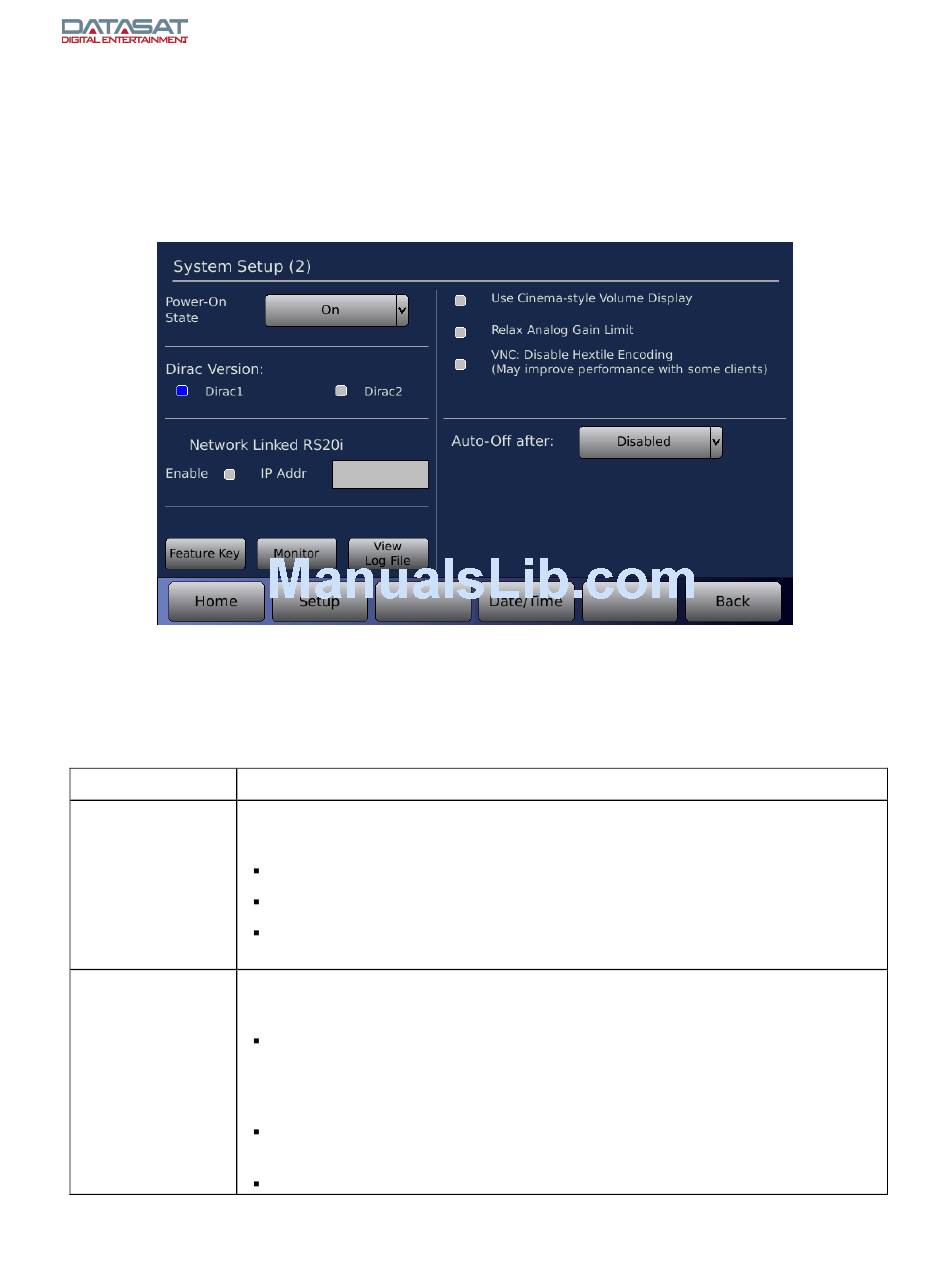

Figure 61. System Setup (2)
Description
Determines whether Standby mode will be enabled after a power-on event either
from the back panel switch, or after a power interruption.
On – The unit remains in the on state.
Off – The unit will boot up as normal, then power off (standby Mode).
Last Power State – After power up, the unit returns to the mode it was in
before the power was turned off (On or standby mode).
Select between the first (Dirac1) and second (Dirac2) version of Dirac filters for
all of the Dirac setups.
Select Dirac1 (default) if you are using that version of the Dirac Live setup
software for alignment. This version may be needed for installations that have
been setup before the Dirac 2 version was available. Refer to the Dirac Live
Installation Guide for information on how to use Dirac for RS20i setup.
Dirac 2 is recommended for all new installations provided that the installer
has Dirac 2 setup software.
After selecting the Dirac Version, the RS20i must be reset from the front
