2.4.4

Power Supply

WARNING: Before powering on the RS20i for the first time, verify that the correct
input voltage has been selected at the rear panel power entry module. Incorrect input
voltage setting will damage the RS20i.
The RS20i may be set for either 115V (105-130V operation) or 230V (215-260V operation).
2.4.4.1 Changing the Input Voltage Setting and Fuses
CAUTION: DOUBLE POLE/NEUTRAL FUSING
Open the fuse compartment door. A small flat blade screwdriver may be used to release the door.
Protect the RS20i metal finish, from damage by the screwdriver, with a rag or other soft material.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide
Figure 11. RS20i Feet
115V

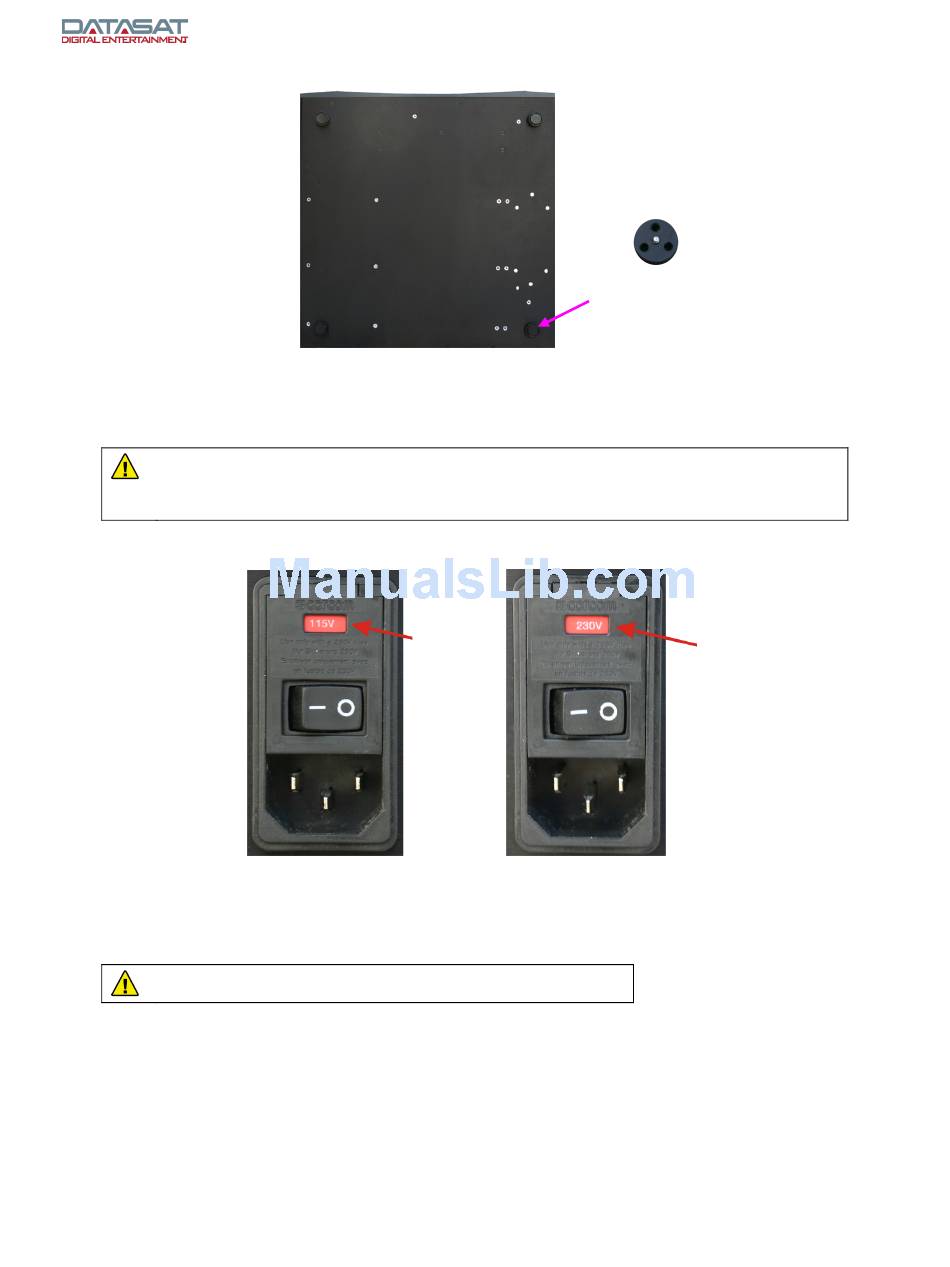

Figure 12. Power Entry Module – Voltage Input Settings
