To access Bass Management Setup:
Setup > Output Prst > BassMan
The screen above shows all available speakers for the selected Speaker Configuration.
Table 26. Bass Management Setup Screen
Controls
Speaker Configuration
Subwoofer Configuration
Enable Bass Management
Full Range to Subs
Speaker icons
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

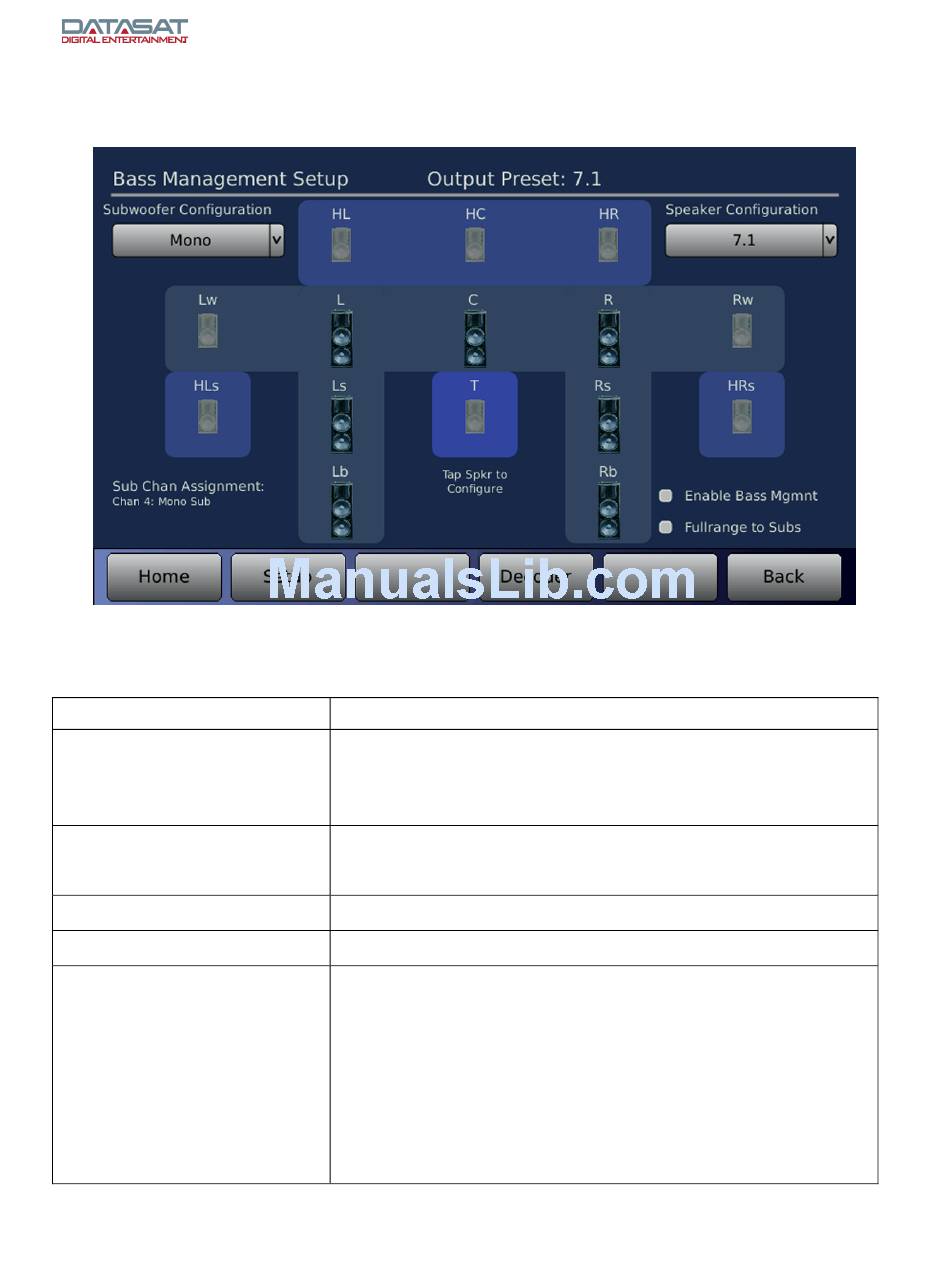

Figure 50. Bass Management Setup Screen
Description
Select speaker configuration that matches the installation. Only
the speakers available for the chosen configuration will be active
for setup. Unavailable speakers will be disabled and grayed out
on the screen.
Select number and positions for subwoofers.
See Subwoofer Configuration Options table, below.
On/Off— Enable all bass management functions.
On/Off – Select to remove all low pass filters to the subwoofers.
Touch an icon to open a speaker setup screen.
L/R – Left/Right speakers
C – Center speaker
Ls/Rs – Left/Right Surround speakers
Lb/Rb – Left/Right Back speakers
HL/HR – High Left / High Right speakers
Lw/Rw – Front Wide speakers
HLs/HRs – High Surround speakers
HC – High Center speaker
T – Top Center speaker
