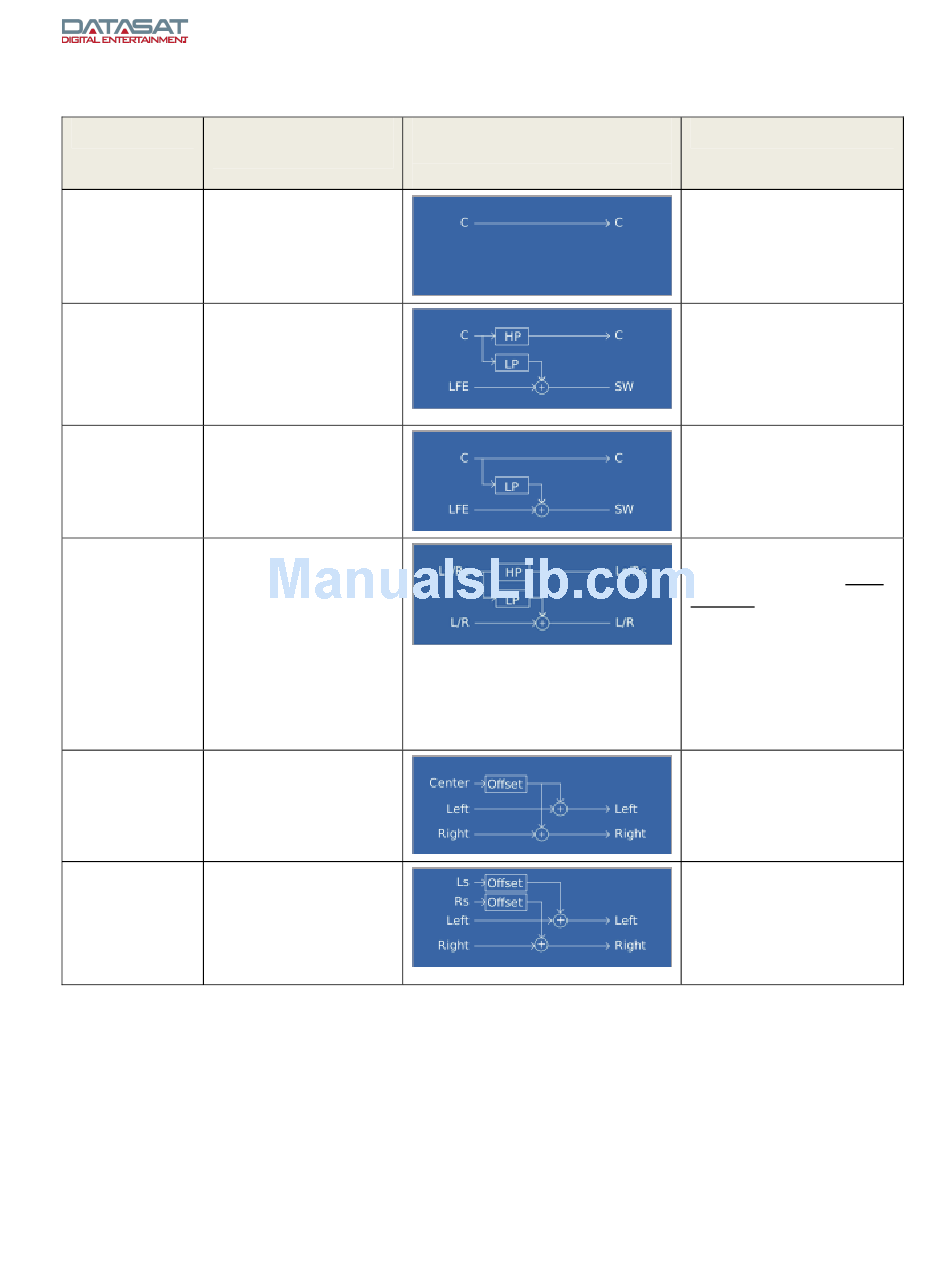

Table 28. Speaker Option with One or More Subwoofers
Controls Applicable
Channels
Large All
Small, All
Enable High
Pass
Small, Center, Left/Right
High Pass Not
Enabled
Small, cross to Depends on speaker:
(other speaker) C cross to L/R
Ls/Rs cross to L/R
Lb/Rb cross to L/R
HL/HR cross to L/R
HC cross to C
HLs/HRs cross to
Ls/Rs
T cross to L/R/LS/RS
Phantom Center
Center
Phantom Left Surround/
Surround Right Surround
Table 29 shows the possible types of speaker configuration options available when the speaker
configuration includes no subwoofer.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide
Diagram
(replace center with
applicable channel)
Page 77
Description
No modifications to
channel
Crossed with LFE
High pass on channel
audio
Low pass to LFE
Channel audio is crossed
with LFE
Low pass to LFE
When this option is used,
the "other" speaker must
be large. If it is not, there
will be an error message
in displayed
red text
below the diagram on the
screen.
Center channel offset and
mixed with Left and Right
channels.
Left Surround offset and
mixed with Left channel,
Right Surround offset and
mixed with the Right
channel.
