This appendix lists the pin-out of all of the connectors on the back panel of the Auro RS20i
Audio Processor.
TRIGGER OUT 12V – 3.5mm MONO
JACK
Pin Description
TIP Trigger out
SLEEVE Ground
AUTOMATION GPIO – DB25F
Pin Description
1 GPIO 1 (Input 0)
2 GPIO 2 (Input 1)
3 GPIO 3 (Input 2)
4 GPIO 4 (Input 3)
5 GPIO 5 (Input 4)
6 GPIO 6 (Input 5)
7 GPIO 7 (Input 6)
8 GPIO 8 (Input 7)
9 GPIO 17
10 GPIO 18
11 N/C
12 RS20i GND
13 RS20i Ext. 5 volts (140mA max)
14 GPIO 9 (Input ID 0)
15 GPIO 10 (Input ID 1)
16 GPIO 11 (Input ID 2)
17 GPIO 12 (Input ID 3)
18 GPIO 13 (Input ID 4)
19 GPIO 14 (Input ID 5)
20 GPIO 15 (Input ID 6)
21 GPIO 16 (Input ID 7)
22 GPO 19
23 GPO 20
24 N/C
25 PROJECTOR C/O (1 / 2)
N/C = No connection
Appendix A. Connector Pin-outs
RS20i Installation and Operating Guide
Appendix A. Connector Pin-outs

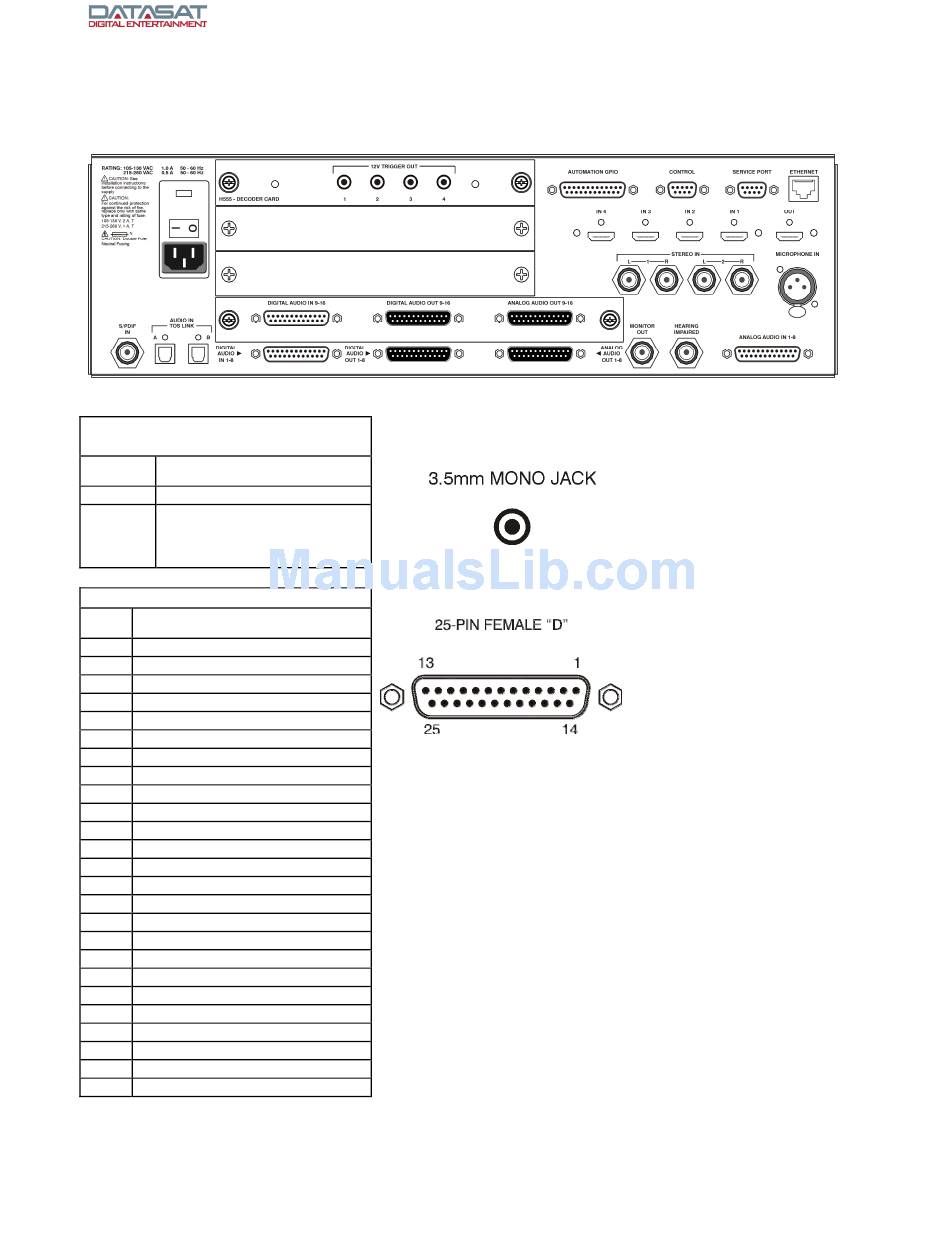

Figure 1. RS20i Rear Panel
