4.8 System Setup

The System Setup screen is used to set the brightness and select the screensaver on the LCD screen, in
addition to updating the RS20i operating system, setting access password, and saving or restoring the
RS20i configuration to/from a USB drive. To access this screen:
Setup > System
The settings and controls available on this screen are described in this table.
Table 31. System Setup (2)
Setting / Control
ScreenSaver Time
ScreenSaver
Mode
Digital Out Setup
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

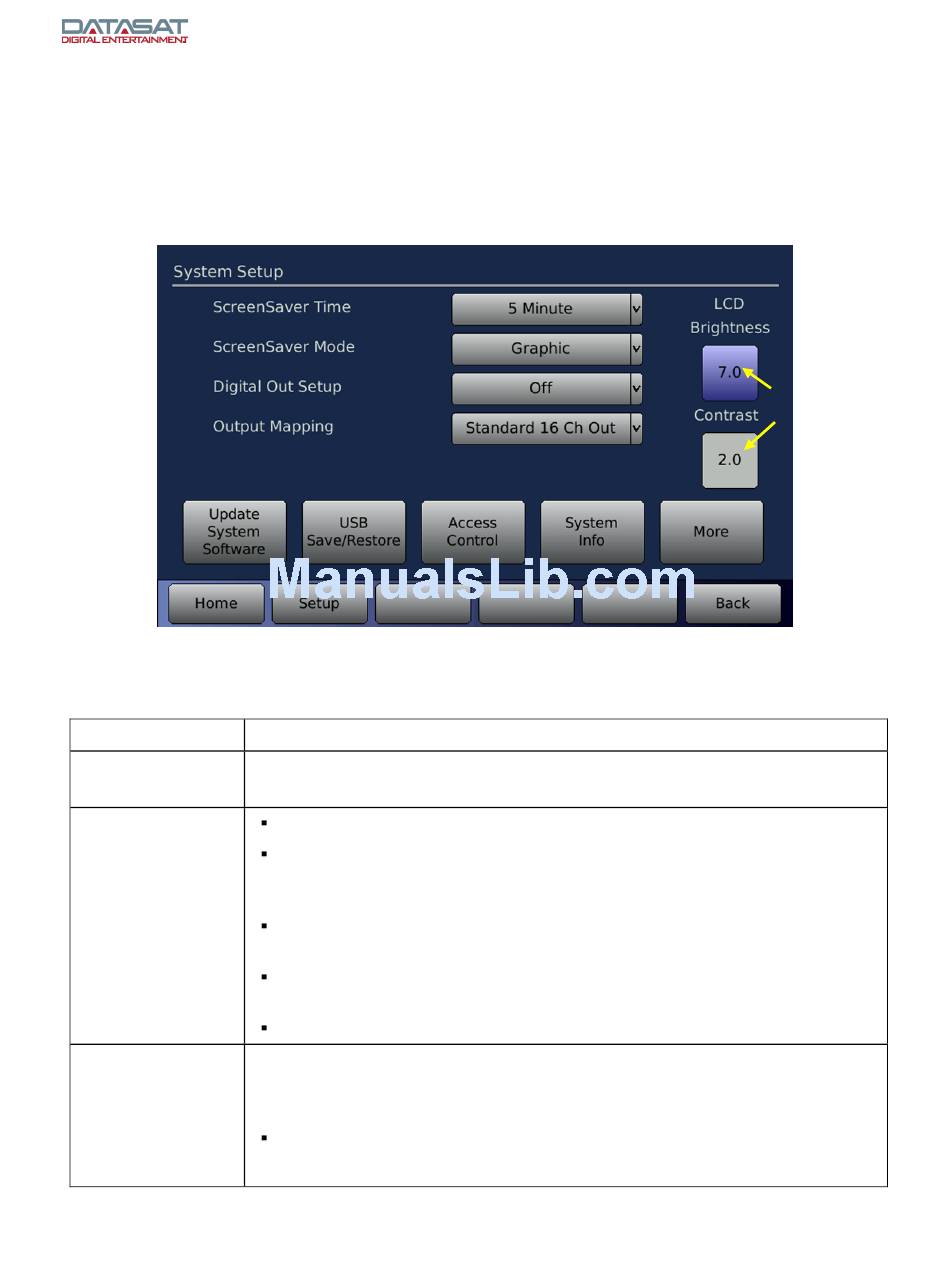

Figure 54. System Setup Screen
Description
Options include a 10 second delay, 1 minute delay, or 5 minute delay before
screen saver initiates.
Disabled will turn off the screen saver.
Dim Screen will reduce the touch screen brightness after the time specified
in the ScreenSaver Time. Touching the screen or turning the Volume
Control knob will restore the brightness.
Graphic mode uses the stored screen saver graphic. Touching the screen
or turning the Volume Control knob will restore the Home screen.
Black Screen will black out the screen after the specified time selected
under Screensaver Time.
Status Screen shows only the volume level and the current input.
When interfacing with external digital equipment select appropriate clock rate to
match that equipment. See 4.4.6 Audio Levels, page62, for how to configure the
digital output to follow the volume control. Select from the following options:
Off, 48kHz, 96kHz, or 192kHz
Select Off for best performance when using only analog outputs.
Page 86
Document # 9301H52900 Ver. 1.02
Turn Volume
Control knob to
adjust brightness
or contrast
