Setup > Output Prst > BassMan > Center
Options differ for other speakers, and the speaker function may change if there are no subwoofers.
Please refer to the tables in this section for options available depending on speaker.
Table 28. Speaker Options using one or more Subwoofers
Table 29. Speaker Options using no subwoofers
HP/LP Filter
This configures the high pass and low pass filters when Small speaker option is selected, as shown in
Figure 51, above. The slope can be set at either 12dB/octave or 24dB/octave. The cutoff frequency can
be set between 31Hz and 160Hz. The HP and LP both use the same slope and frequency.
Note: If the bass management option for full range to subs is selected, then there is
no low pass filter. All frequencies in the signal are sent to the sub.
Offset
The offset control appears when the phantom speaker option is selected. It allows the level for that
speaker to be adjusted before being mixed with another speaker. The offset level can be adjusted from
+3dB to -10dB.
Bass Management Options for Speakers
Table 28 shows the possible types of speaker configuration options available when the speaker
configuration includes one or more subwoofers.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

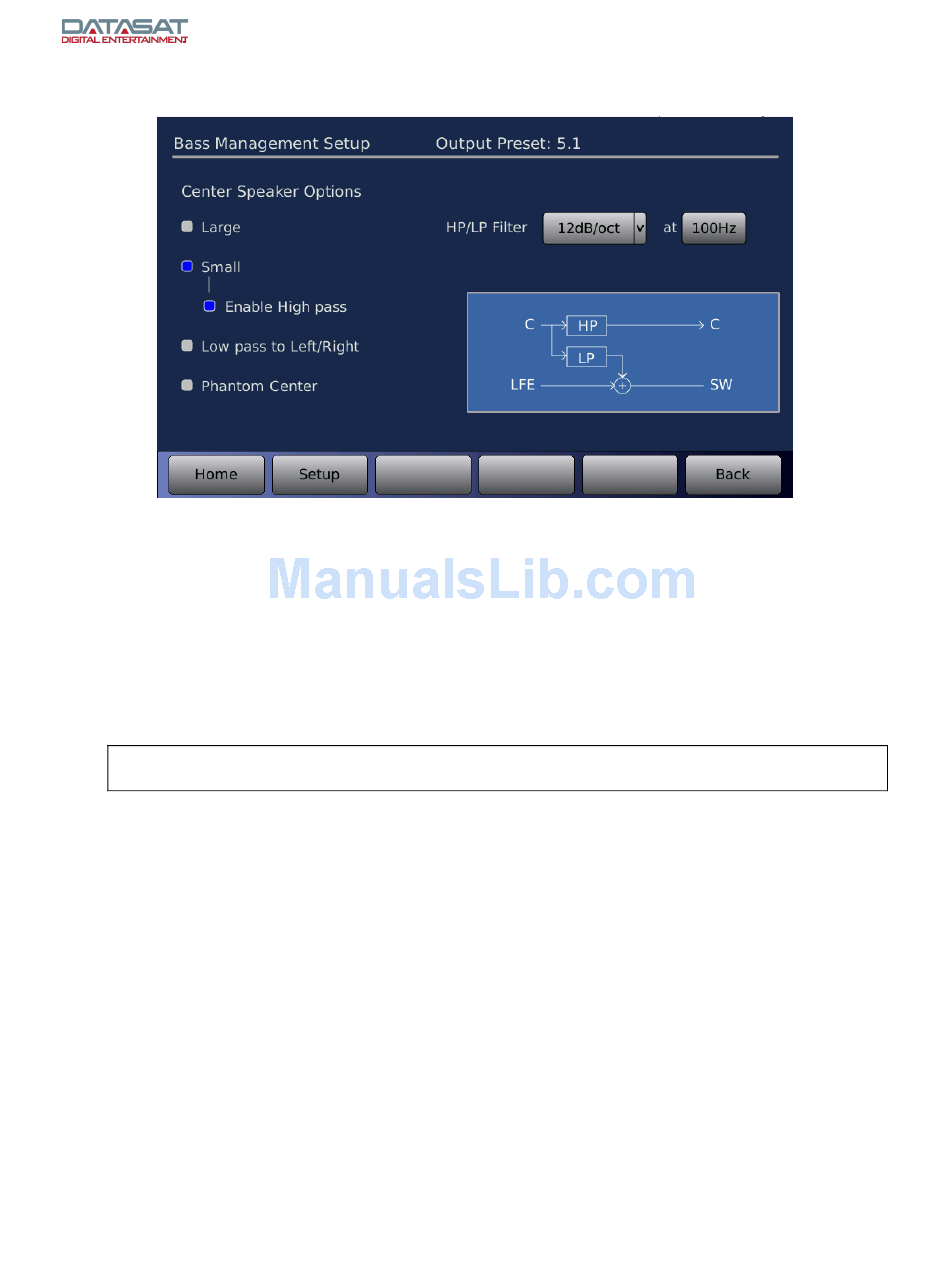

Figure 51. Bass Management Center Speaker Options
Page 76
Document # 9301H52900 Ver. 1.02
