Setup > Buttons
To configure a button, touch the button to select it.
A screen will open that allows both the button title and the event assignment to be configured.
To enter or change the button title, touch the Event Name box. A keyboard screen will open
allowing you to type a new title for this button.
To assign a macro to the button, touch the Run: Macro button, then touch the drop down list and
select from the listing. Touch OK when finished, or touch Cancel to cancel this task.
To assign an Action to the button, touch the Run: Action button and touch the white box that
appears below it. This will bring up the Automation Edit Action screen.
Touch OK when finished, or touch Cancel to cancel this task.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

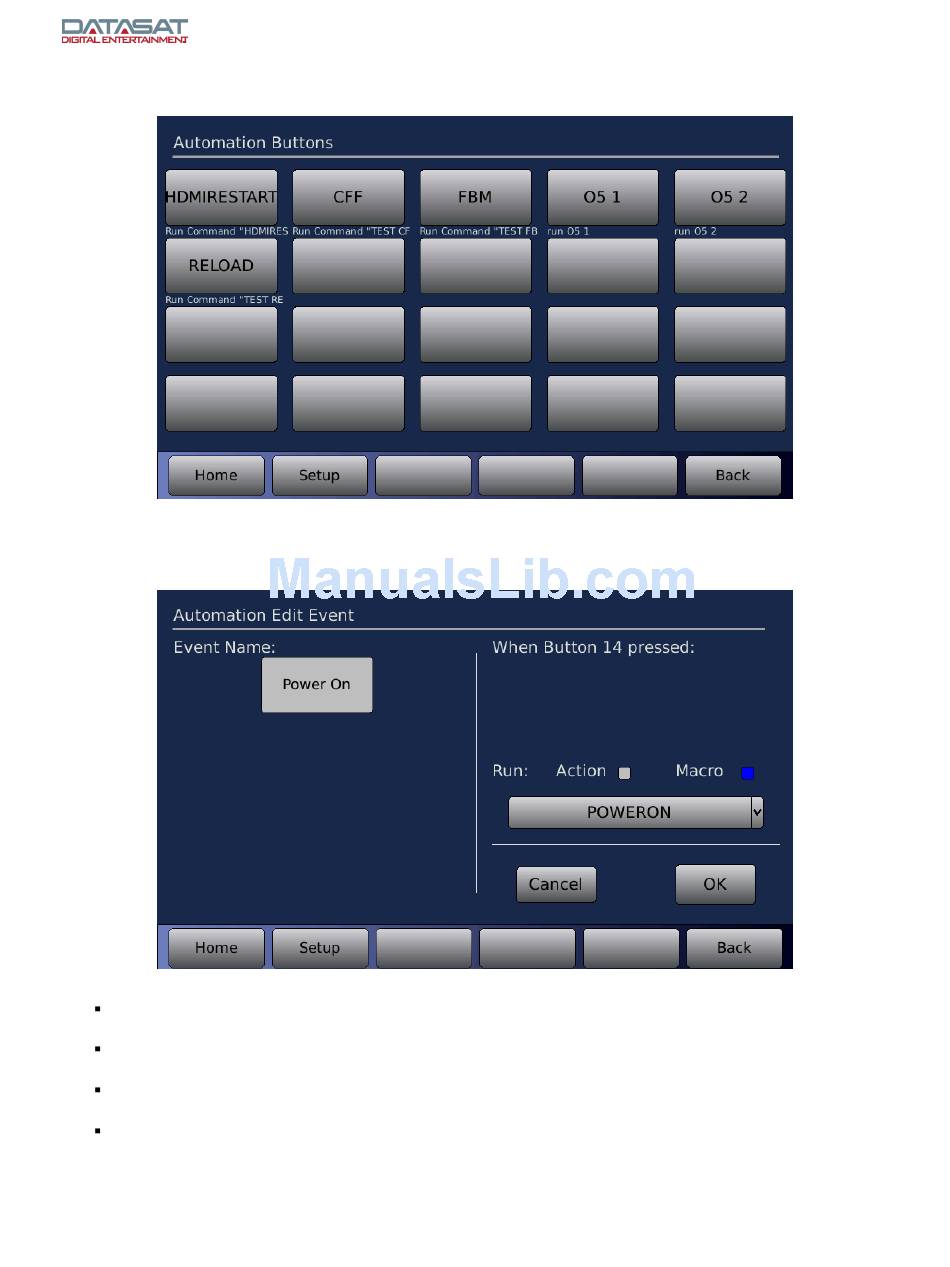

Figure 73. Automation Buttons
Figure 74. Automation Button Assignment
Page 107
Document # 9301H52900 Ver. 1.02
