RS20i Installation and Operating Guide
Soft rag
Screwdriver

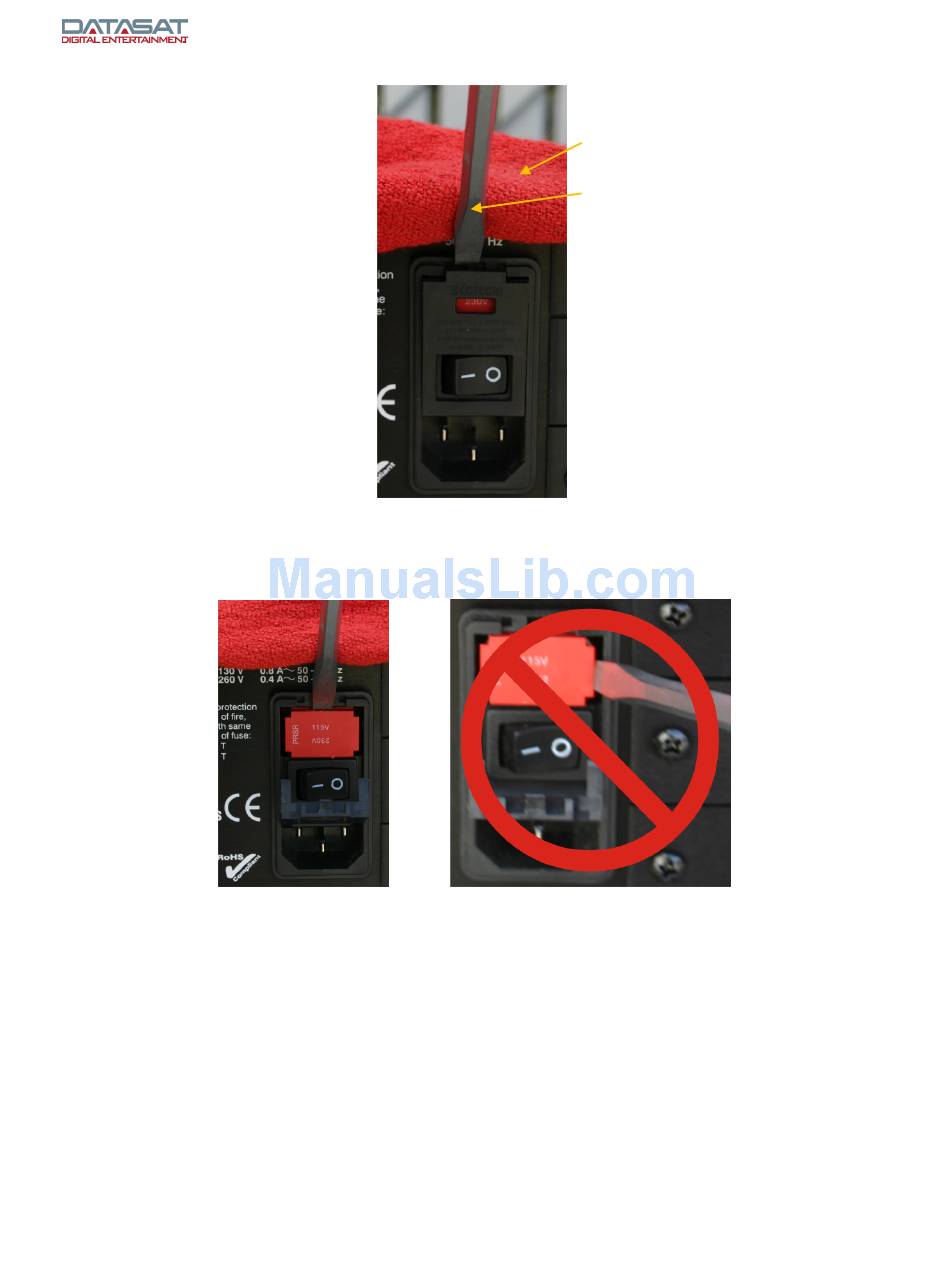

Figure 13. Power Entry Module – Releasing the Fuse Compartment Door
Remove the fuse block by freeing it with a small flat blade screwdriver. The block has slots for this
purpose in the top and bottom. Do not try to pry the block out from the sides, as this will damage the
block. Use a rag or other soft material to protect the RS20i metal finish.
Figure 14. Accessing Fuse Block. Pry from top or bottom only.
RS20i Installation & Operating Guide
Document # 9301H52900 Ver. 1.02
