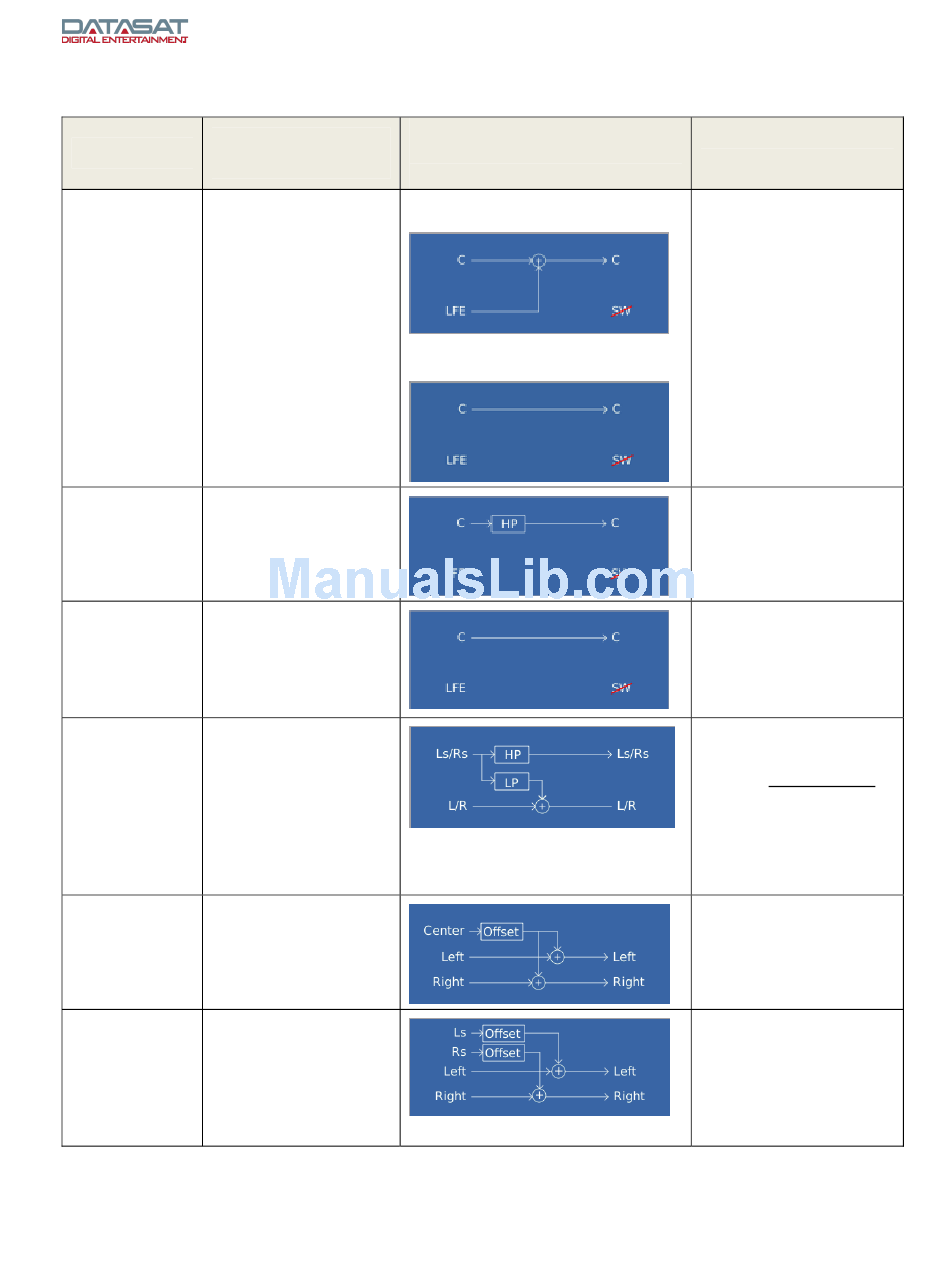

Table 29. Speaker Options with No Subwoofers
Applicable
Controls
Channels
Large All
Small, All
Enable High
Pass
Small, Center, Left/Right
High Pass Not
Enabled
Small, cross Depends on speaker:
to (other
C cross to L/R
speaker)
Ls/Rs cross to L/R
Lb/Rb cross to L/R
HL/HR cross to L/R
HC cross to C
HLs/HRs cross to Ls/Rs
T cross to L/R/LS/RS
Phantom Center
Center
Phantom Left Surround/
Surround Right Surround
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide
Diagram
(replace center with applicable
channel)
For L/R and Ls/Rs:
For other speakers:
Page 78
Description
For L/R and/or Ls/Rs:
the LFE signal will be
added to those
speakers.
No LFE added to audio
channel
High pass on channel
No LFE added to
channel
.
When this option is
used, the "other"
speaker must be large.
If it is not, there will be
an error message in
displayed
red text
below the diagram on
the screen.
Center channel offset
and mixed with Left
and Right channels.
Left Surround offset
and mixed with Left
channel, Right
Surround offset and
mixed with the Right
channel.
