4.4 Audio EQ Setup

The Audio EQ Setup screen allows you to set the Audio EQ for the current Input Preset and edit the EQ.
It also provides access to menus for modifying parameters for the current Audio EQ.
Setup > EQs
Controls and links on this screen are described in the table below.
Table 13. Audio EQ Setup
Control or Link
Current Audio EQ
Edit EQ
Dirac
Optimization
Audio Levels
Third Octave EQ
Parametric
Equalization
Copy/Clear EQ
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

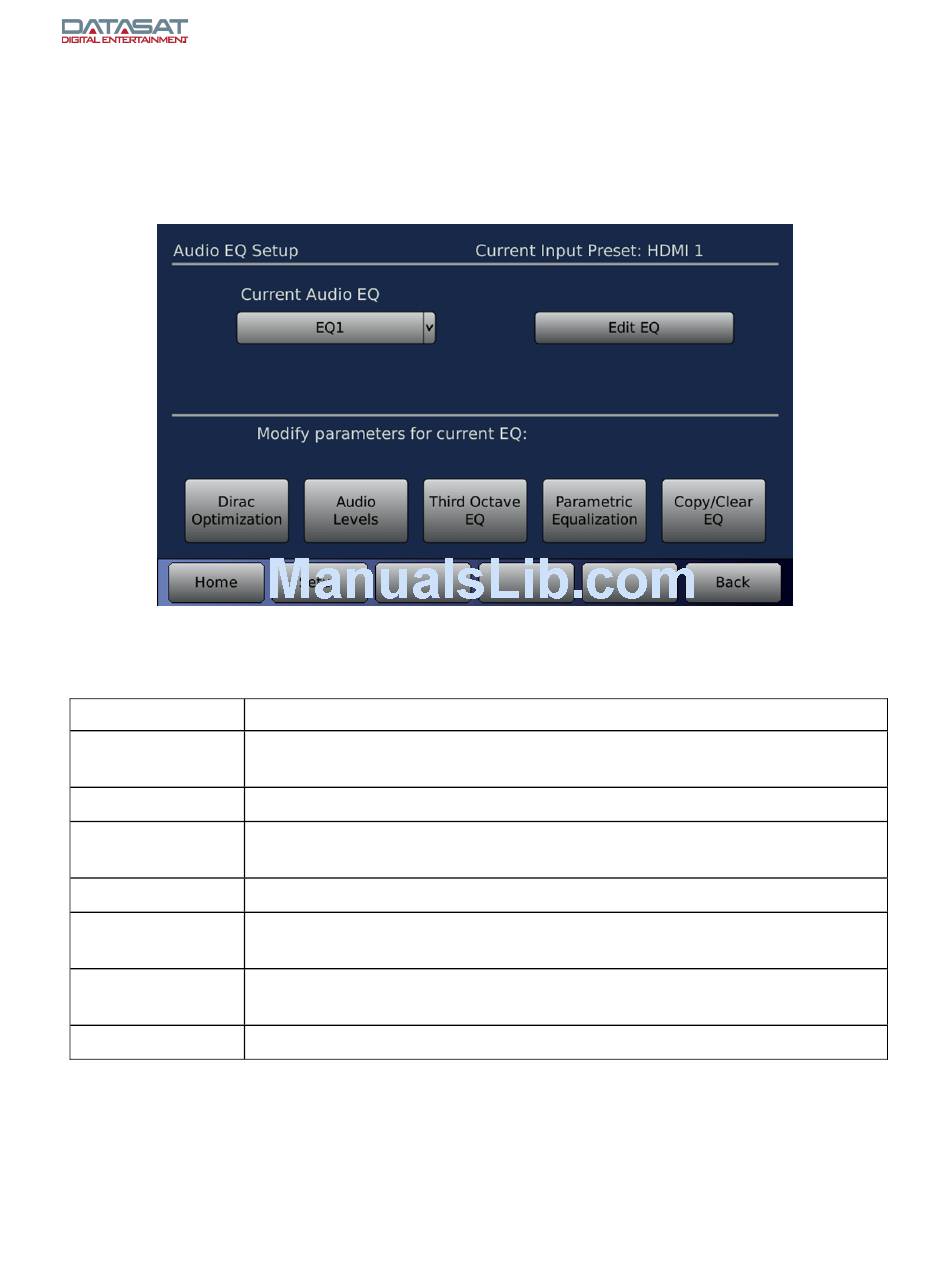

Figure 32. Audio EQ Setup Screen
Description
This drop-down list allows you to select from the list of available EQ setups.
The selection becomes the Audio EQ Setup for the current Input Preset.
Copy, Create, Rename or Delete an Audio EQ Setup. See 4.4.1 Edit, page 54.
Set up an audio optimization process. The button color turns light blue when
Dirac is enabled. See 4.4.2 Dirac Live Optimization, page 55.
See 4.4.6 Audio Levels, page 62.
The button color turns light blue when Third Octave EQ has been set (non-flat)
on at least one channel. See 4.4.3 Third Octave EQ, page 56.
The button color turns light blue when at least one filter has been set (non-flat)
on at least one channel. See 4.4.4 Parametric Equalization, page 60.
See 4.4.5 Copy/Clear EQ, page 61.
