4.2.2

Overview, Creating an Input Preset

This is an overall summary of the procedure for creating an audio input. Each is described in more detail
later in this section.
Assign Input Preset name. The RS20i comes with some Input Presets already installed which have
general names reflecting the input source. These Input Presets should be renamed to describe specific
installation inputs and/or configuration. Additional Input Presets can be created by copying an existing
Input Preset, or by creating a new Input Preset from a template. Unused Input Presets may be deleted.
All of these functions are available in the Input Setup screen.
Input Source. Define the physical input connector in the Input Source screen.
Input Options. Set Global Delay, Surround Decoder, and other options for the Input Preset. These are all
found under the Input Options selection.
Output Preset. Select the Output Preset desired for the Input Preset. This is set by entering the Output
Preset Setup screen and selecting the Current Output Preset using the list selection. The Output Preset
contains the channel names, Bass Management, channel delays, and crossover settings. See 4.5 Output
Preset on page 64 to create or configure an output preset.
EQ Setup. Select the EQ Setup desired for the Input Preset. This is set by entering the Audio EQ Setup
screen and selecting the Current Audio EQ Setup using the list selection. The Audio EQ contains the
Dirac Coefficients, 3rd Octave EQ, Parametric EQ, etc. See 4.4 Audio EQ Setup on page 53 to create or
configure an EQ Setup.
Assign Buttons. You can assign up to eight Input Preset buttons on the Home screen to provide quick
access to select an Input Preset. Optionally, one of the buttons can be assigned to have a pop-up where
up to 20 Inputs can be selected. This function is available in the Assign Buttons screen.

4.3 Input Preset Screen

The Input Preset screen is the base screen for creating and configuring an Input Preset. To access this
screen:
Setup > Inputs
From the Input Preset screen, you can configure or select the following:
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

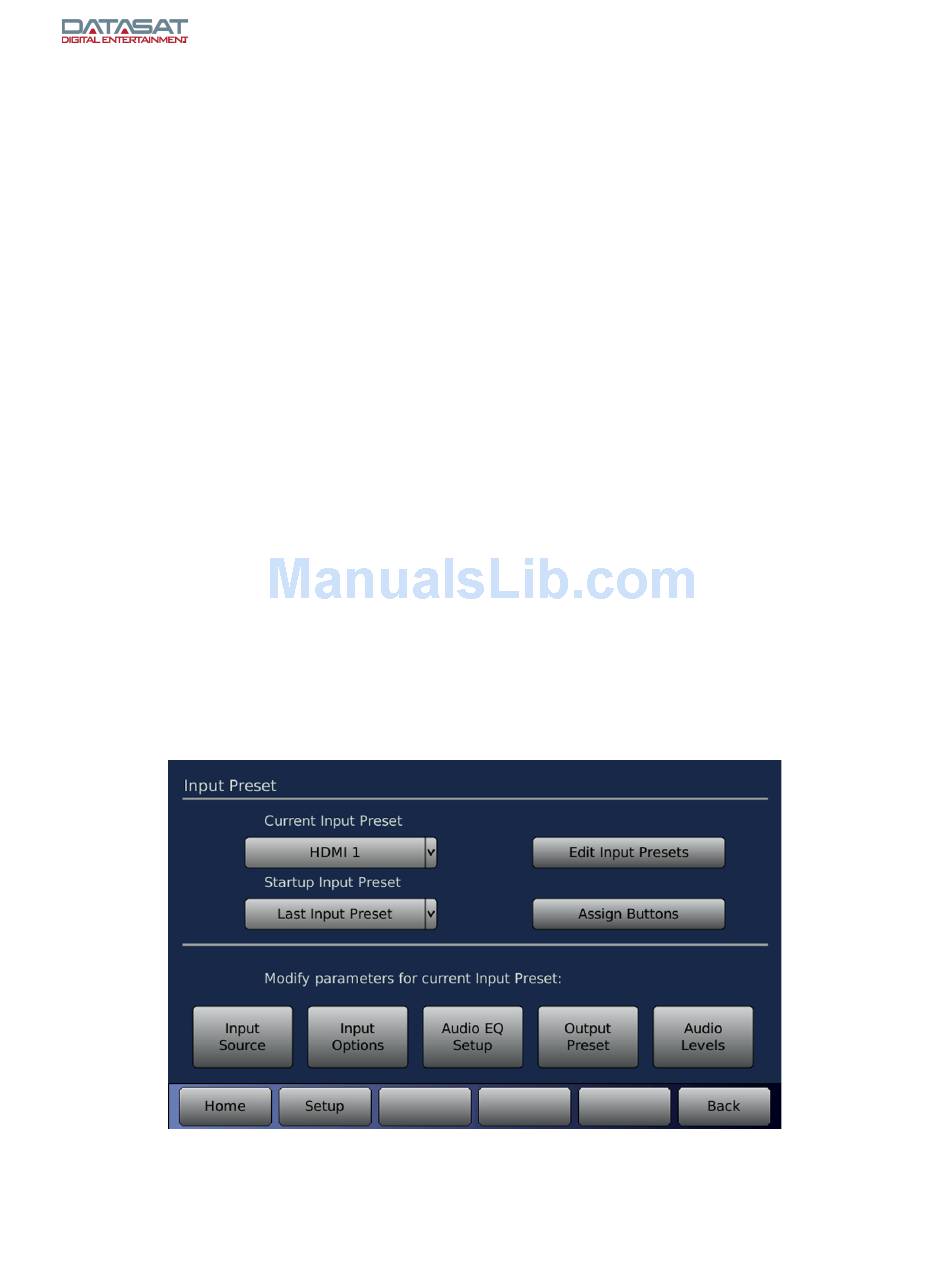

Figure 18. Input Preset Screen
