Datasat RS20i Installation And Operating Manual page 39

•
Current Input Preset – See Current Input Preset, page 39.
•
Startup Input Preset – See Startup Input Preset, page 40.
•
Edit Input Presets – See 4.3.1 Edit Input Presets, page 40.
•
Assign Buttons – See 4.3.2 Input Button Assignments, page 42.
•
Input Source – See 4.3.4 Input Source, page 43.
•
Input Options – See 4.3.5 Input Options, page 45.
•
Audio EQ Setup – See4.4 Audio EQ Setup, page 53.
•
Output Preset
•
Audio Levels
Current Input Preset
Select the Input Preset you wish to modify from the drop-down list of installed inputs. This is a convenient
way to select the Input Preset for configuration without going to the Home screen. Touch the drop down
list to open it, then touch the input name to select it. This will become the current Input Preset.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide
See 4.5 Output Preset, page 64.
See 4.4.6 Audio Levels, page 62.

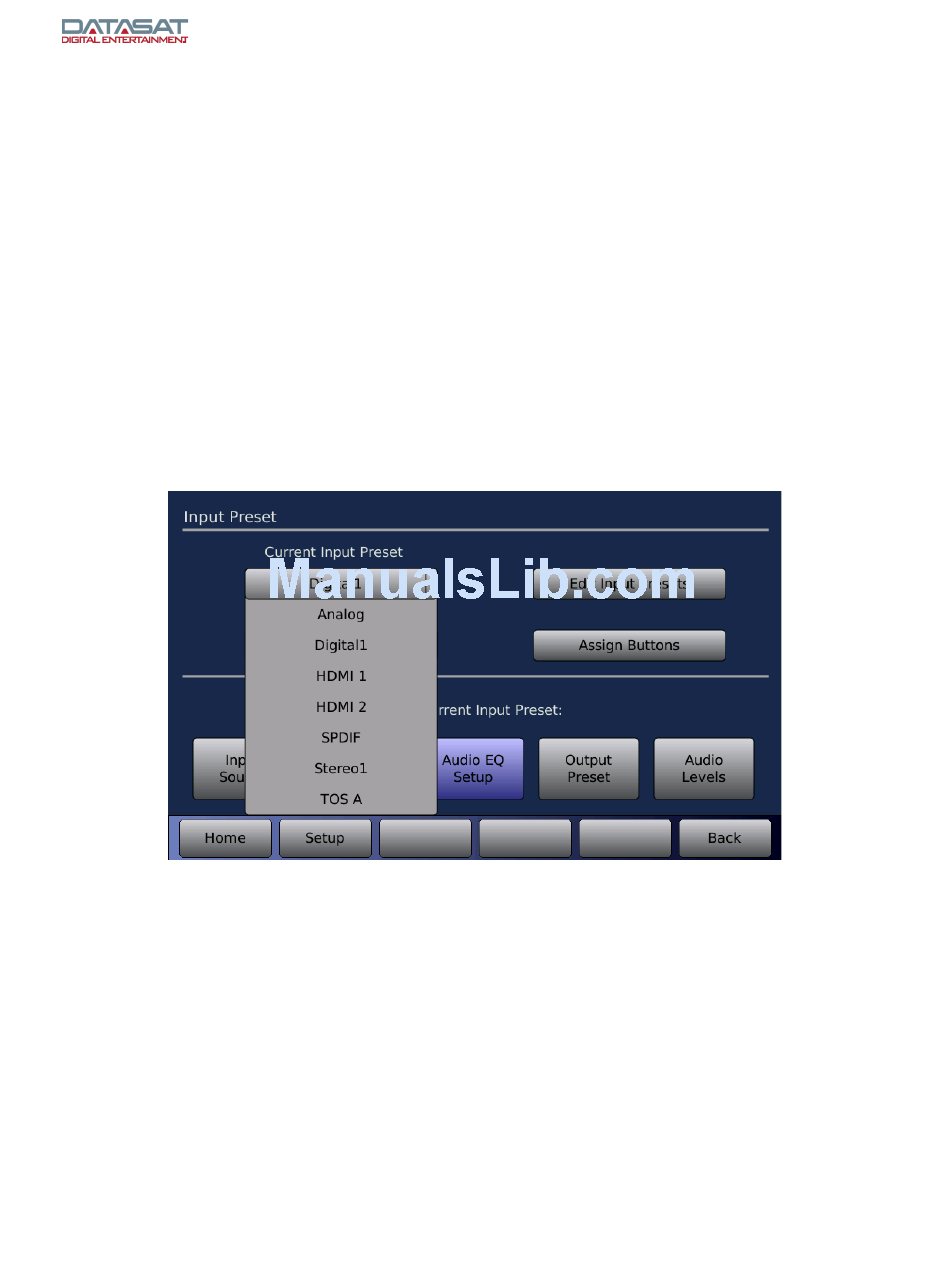

Figure 19. Select Current Input Preset
Page 39
Document # 9301H52900 Ver. 1.02
