Remove the fuse block and install correct fuses. The RS20i uses two 5x20 mm fuses (one on each side
of the fuse block):
For 115V operation, use two 2A, T fuses.
For 230V operation, use two 1A, T fuses.
Insert the fuses into the fuse block, as shown in Figure 15 below.
Replace the fuse block in the power entry module and verify that the correct voltage setting is shown (see
Figure 12).
3.0
How-To Procedures for Setup
This table provides a list of setup activities and provides instructions or a link to instructions elsewhere in
this manual.
Table 4.
Setup Procedures
Activity
Assign an Input button
Unassign / delete an Input
button
Configure power-on Input
(Startup Input)
Create an Input
Assign Channel Names and
Vu meters
USB Save / Restore / Load
Load a personalized screen
saver
Set up Global Audio Delay
for an input
Set up Digital Cinema option
View RS20i System
information
Update RS20i software
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

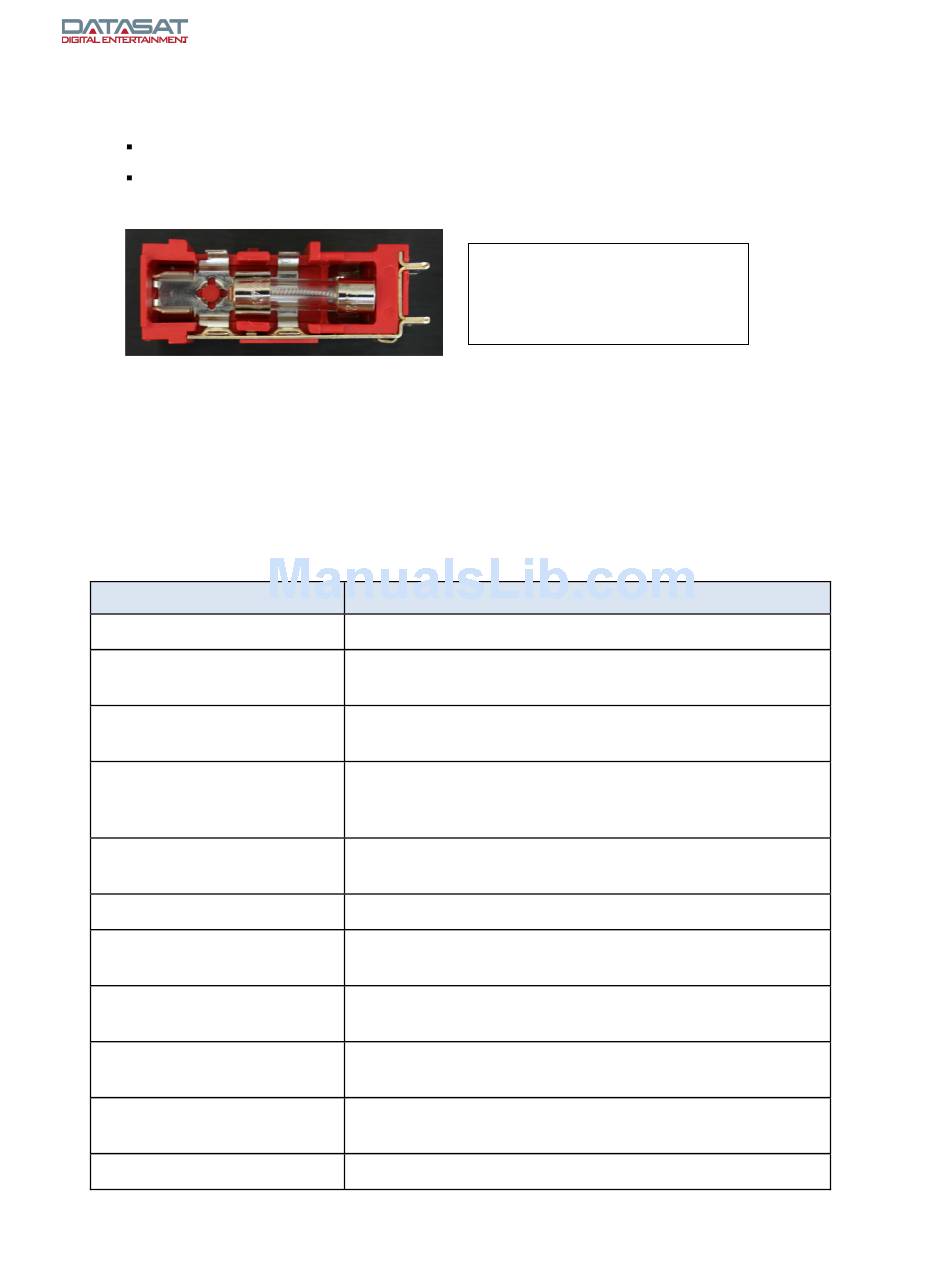

Figure 15. Fuse Correctly Positioned in Fuse Block
Instructions
See 4.3.2 Input Button Assignments, page 42.
See 4.3.2 Input Button Assignments, page 42 – select the
button and assign a "blank" input to it.
See Startup Preset Input, page 40.
See 3.1 Example: Creating an Input, below.
For detailed information about Inputs, see 4.2.1 About
Input Presets, page 36.
See 4.5.2 Channel Names, page 68.
See 4.8.2 USB Save/Restore, page 89.
To set screensaver time and mode, see 4.8 System Setup,
page 86.
See 4.3.5.1 Global Delay and Surround Offset, page 46.
For digital cinema input, see 4.3.7 Digital Cinema Options,
page 52
See 4.8.4 System Info, page 92.
See 4.8.1 Update System Software, page 87.
Note: When 5x20mm fuse is
used, make sure it is inserted
at the "live" end of the fuse
block, as shown.
Document # 9301H52900 Ver. 1.02
Page 27
