Table 5. RS20i Factory Presets
Input Assigned
Name Button
HDMI 1 1
HDMI 2 2
Digital1 3
TOS A 4
SPDIF 5
Analog 6
Stereo 1 7
The default EQ set is named EQ1 and includes all EQ settings flat and all filters off. This EQ set may be
used and altered during the theater setup process. The default output preset is 7.1, which includes the
default 8-channel assignments and trim values flat.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide
Signal Source
HDMI Port 1
HDMI Port 2
Digital Ch: 1-8
TosLink A
S/PDIF Coax
Analog 8Chan
Stereo1

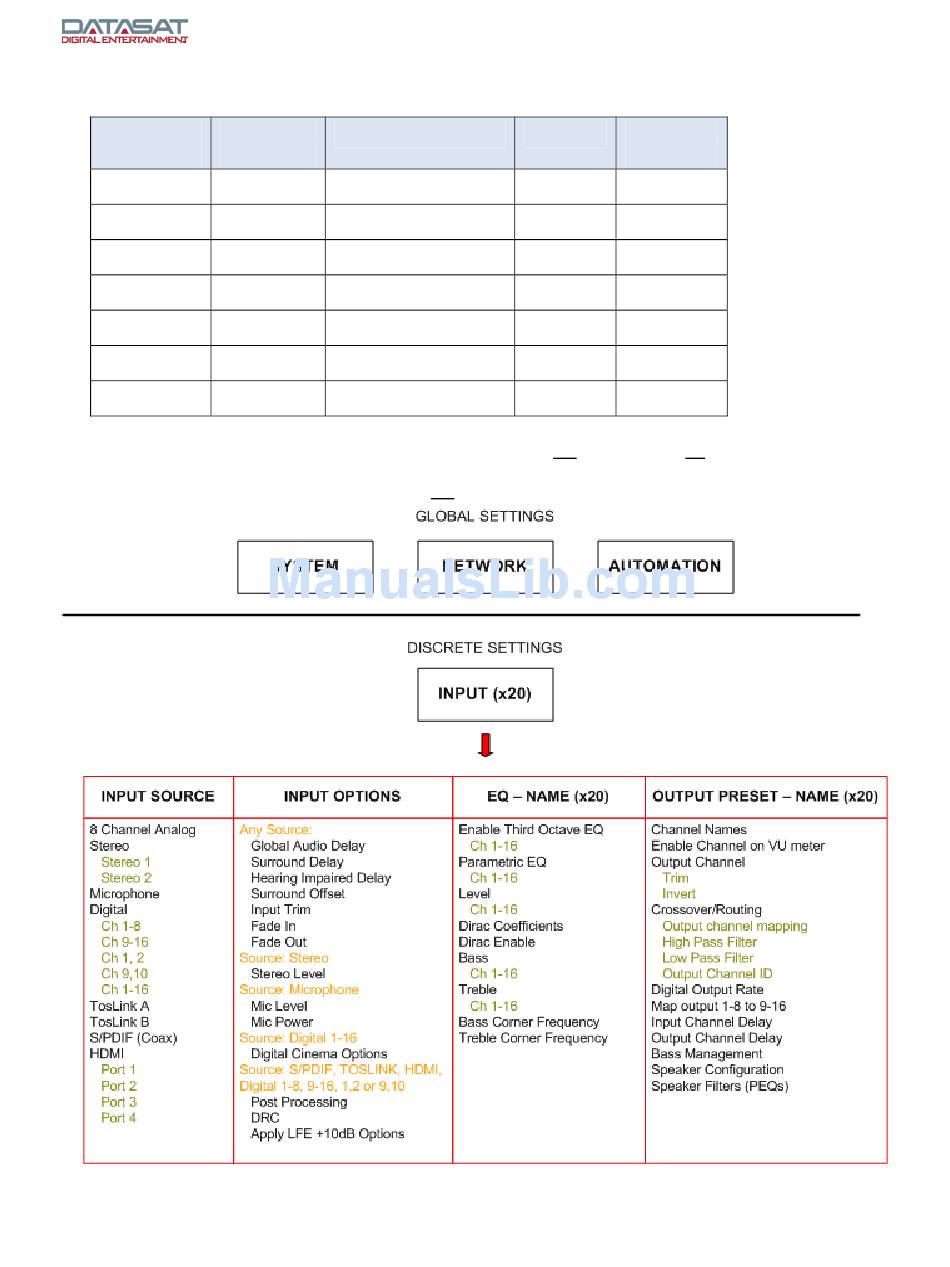

Figure 17. Global Settings and Input Discrete Settings
EQ Set Output
Preset
EQ1 7.1
EQ1 7.1
EQ1 7.1
EQ1 7.1
EQ1 7.1
EQ1 7.1
EQ1 7.1
