iPF830

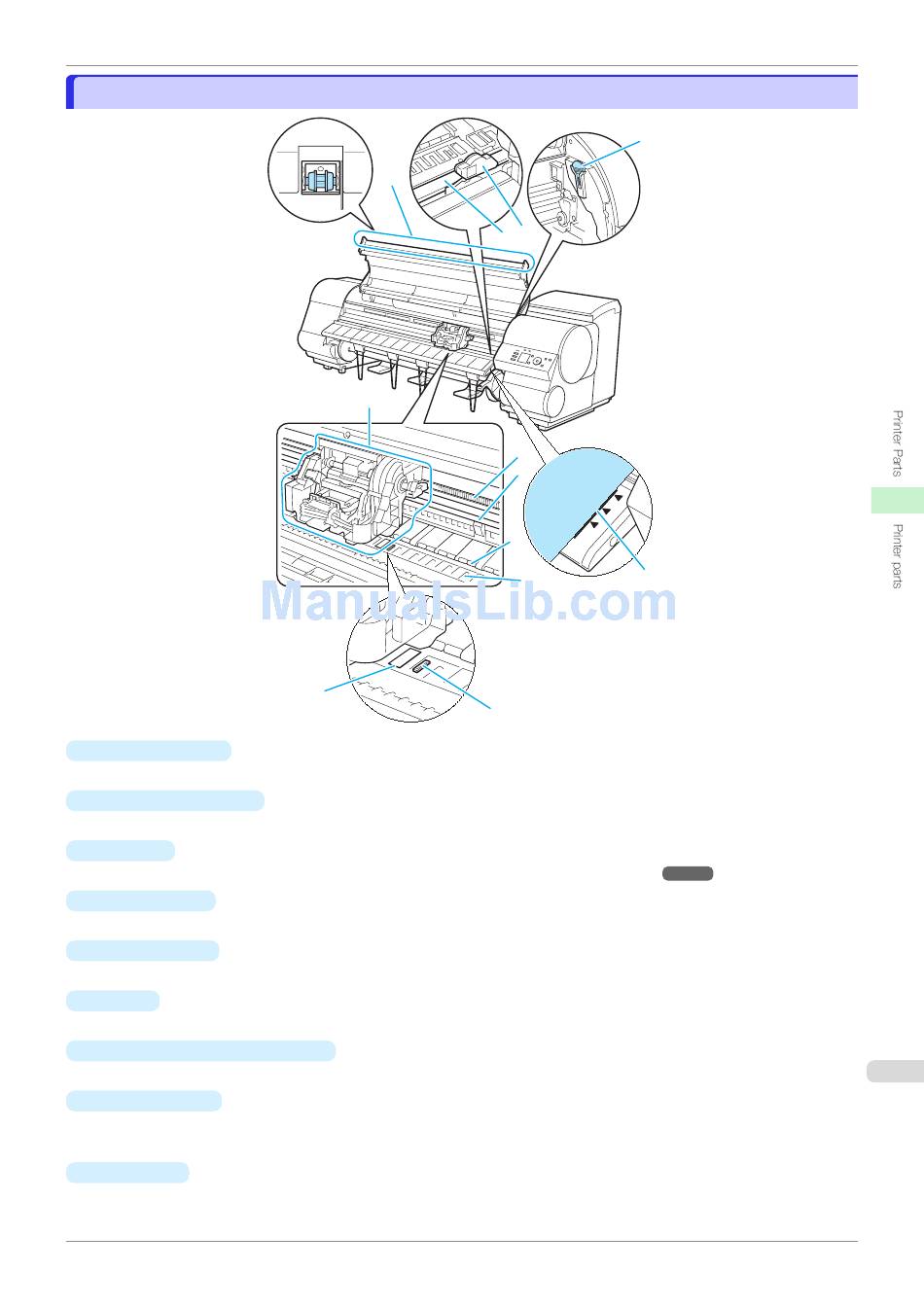

Top Cover (Inside)
Top Cover (Inside)
Top Cover Roller
a
Prevents paper from rising when ejected.
Paper Alignment Line
b
Align paper with this line when loading it.
Carriage
c
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.")
Carriage Shaft
d
The Carriage slides along this shaft.
Paper Retainer
e
Important in supplying the paper. This retainer holds paper as it is fed.
Platen
f
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
g
Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
Cleaning Brush
h
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
Also use the brush to move the blue Switch on the Platen.
Cutter Rail
i
The Cutter Unit passes over this rail to cut paper.
User's Guide
a
c
g
h
j
i
k
d
e
b
f
l
➔
Top Cover (Inside)
P.466
465
