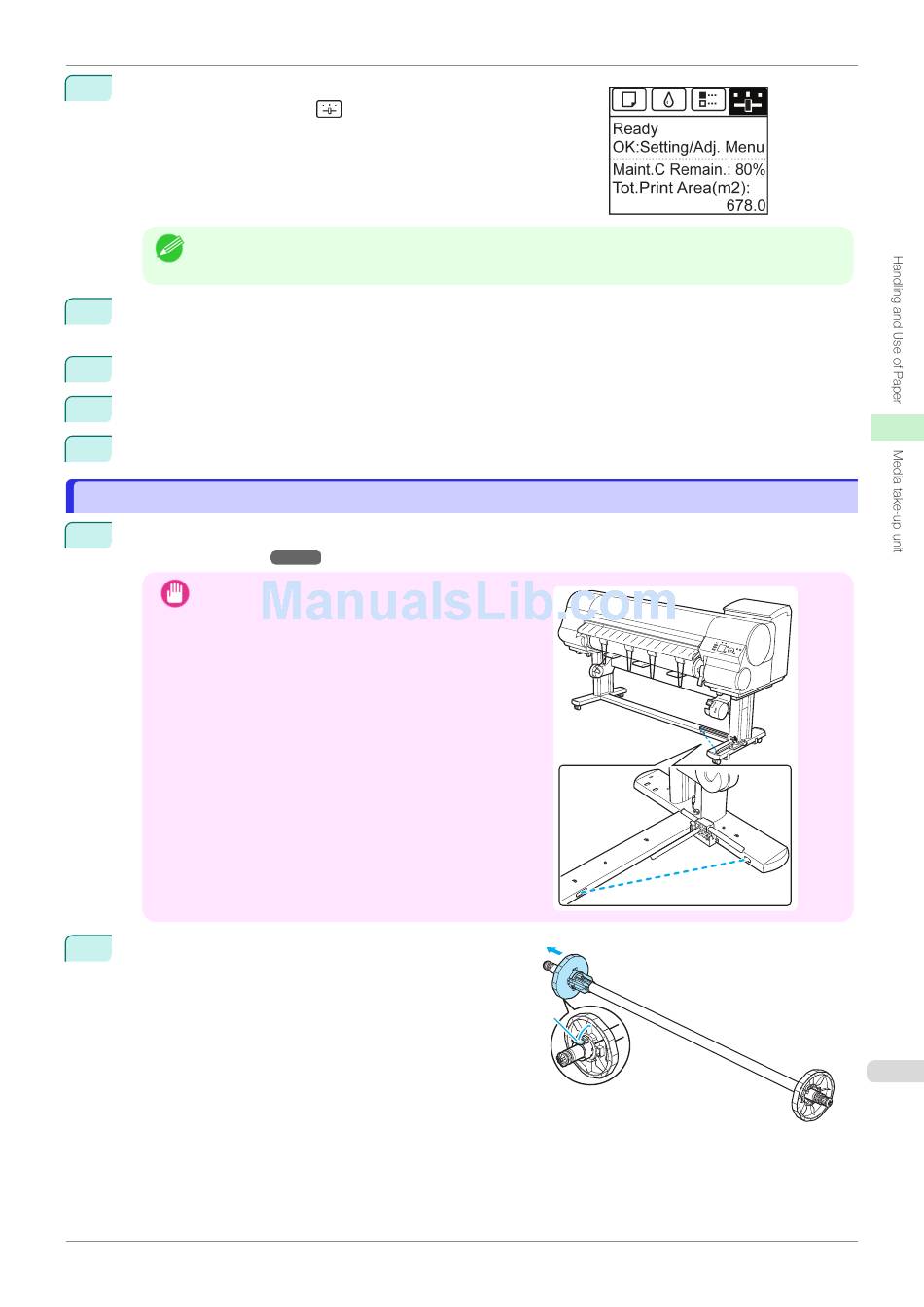

Loading The Rewind Spool On The Media Take-Up Unit - Canon imagePROGRAF iPF830 User Manual

iPF830
3
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to
select the Settings/Adj. tab (
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
4
Press the OK button.
The Set./Adj. Menu is displayed.
5
Press ▲ or ▼ to select Take-up Reel, and then press the OK button.
6
Press ▲ or ▼ to select Use Take-up Reel, and then press the OK button.
7
Press ▲ or ▼ to select Disable, and then press the OK button.

Loading the Rewind Spool on the Media Take-up Unit

Loading the Rewind Spool on the Media Take-up Unit

1
When using the Output Stacker, stow the Output Stacker before this procedure. (See "Stowing the Station-
ary Output Stacker.")
• Position the Basket Cloth and Basket Rod so they do
not interfere with the Media Take-up Sensor (wave
Important
portion). This may impair operation.
2
Unlock the flange on the left side of the Rewind Spool by
lifting the lever (a) from the shaft side. Remove the flange.
User's Guide
).
P.360
➔
Loading the Rewind Spool on the Media Take-up Unit
a
367
