iPF830
5

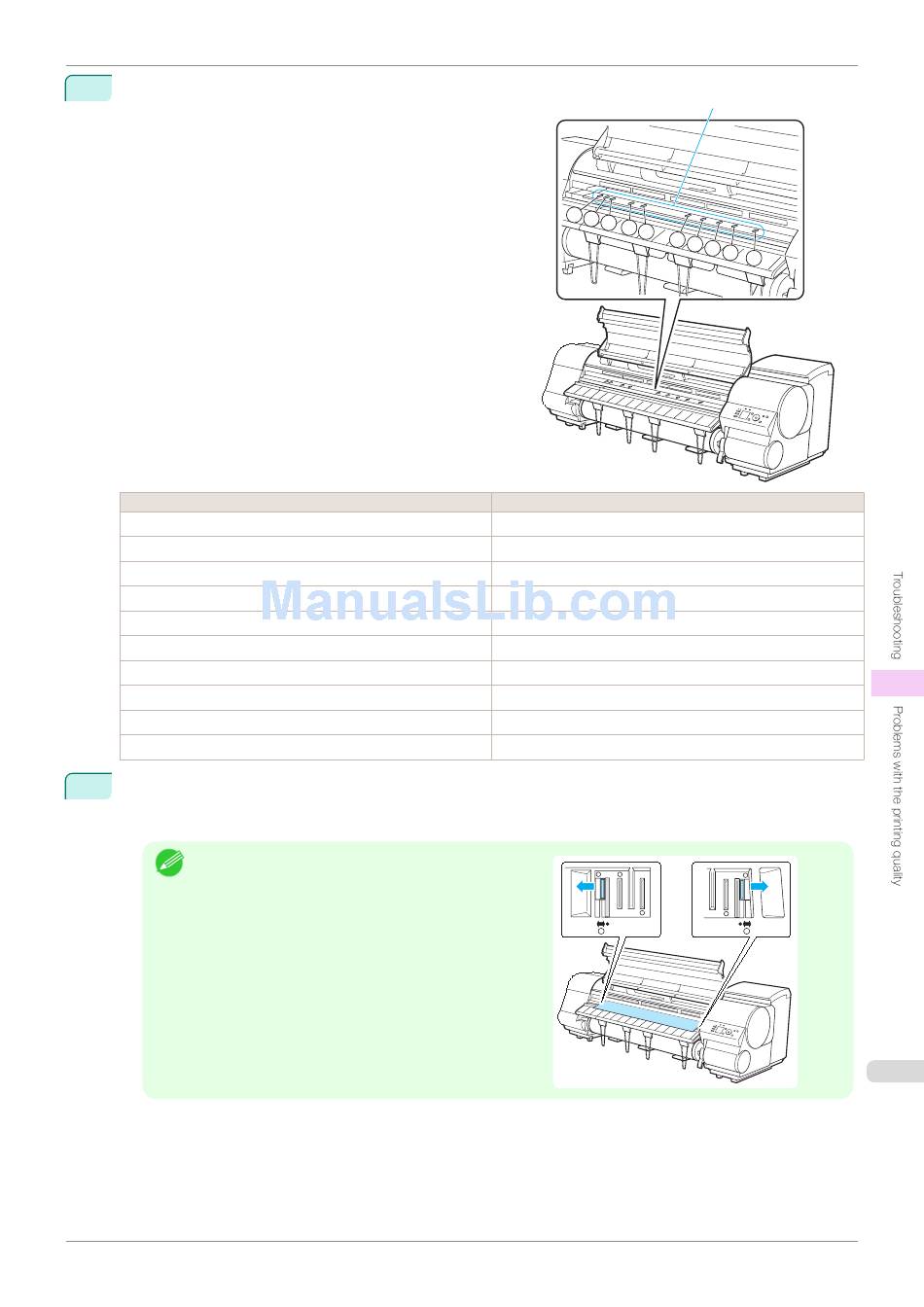

Refer to the following table to confirm the number on the
Platen (a) that corresponds to the size of paper for printing.
2
3
4
5
6
7
8
9
10
11
6
Using the back of the Cleaning Brush, move the Switch to the side opposite ●, corresponding to the size of
the paper for printing.
In this case, note that you will move the switch in the opposite direction from the direction in step 4.
The Switch only moves number 1 and the number that
•
matches the paper size. Set all of the switches where
Note
the number does not match the paper size in switches
number 2 and higher to the ● side.
User's Guide
Number
Setting the Blue Switch on the Platen
11
10
9
8
7
6 5
Dimensions
254.0 mm (10.00 in)
355.6 mm (14.00 in)
431.8 mm (17.00 in)
515.0 mm (JIS B2 or B3)
594.0 mm (ISO A1 or A2) or 609.6 mm (24.00 in)
841.0 mm (ISO A0 or A1)
914.4 mm (36.00 in)
1030.0 mm (JIS B0 or B1)
1066.8 mm (42.00 in)
1117.6 mm (44.00 in)
a
4 3
2
625
