iPF830
The following list identifies Weight Roll and Weight Flange you can use. A Color Label is applied to each
Weight Roll.
Weight Roll
Roll Width
B2 Width: 515.0 mm (20.3 in)
B1 Width: 728.0 mm (28.7 in)
B0 Width: 1,030.0 mm (40.6 in)
A1 Width: 594.0 mm (23.4 in)
A0 Width: 841.0 mm (33.1 in)
431.8 mm (17 in)
609.6 mm (24 in)
762.0 mm (30 in)
914.4 mm (36 in)
1,066.8 mm (42 in)
1,117.6 mm (44 in)
Weight Flange
Canon Premium Glossy Paper 2 280, Semi-Glossy Photo Paper, Canon Premium Glossy Paper 2 280,
Heavyweight SemiGlossy Photo Paper, Fine Art Photo, Fine Art Heavyweight Photo, Fine Art Textured,
Canvas Matte, Fine Art Block Print, Fine Art Watercolor, Canon Proofing Paper, Canon Coated Paper,
Canon Heavyweight Coated Paper, Extra Heavyweight Coated Paper, Colored Coated Paper, Adhe-
sive Synthetic Paper, Synthetic Paper, Backprint Film, Backlit Film, Canon Flame-Resistant Cloth, Fab-
ric Banner, Thin Fabric Banner
Premium Matte Paper
*1:If you cannot retract stiff paper well using Weight Flange 1 or if the diameter of the retracted paper is wider than the
Rewind Spool, use Weight Flange 2. When using Weight Flange 2, adjust the paper feed amount by executing Au-
to(GenuinePpr) or Auto(OtherPaper). (See "Automatic Banding Adjustment.")
•
Do not use combinations other than those identified here.
•
Insert the Weight Flange and Weight Joint firmly on the Weight Roll.
Important
•
Use identical Weight Flange on the left and right ends. Insert matching Weight Flanges (1 or 2) on both
ends of the Weight Roll.
•
Keep unused weight rolls, weight joints, and weight flanges handy by putting them in the box and putting
the box under the Stand.
Note
17

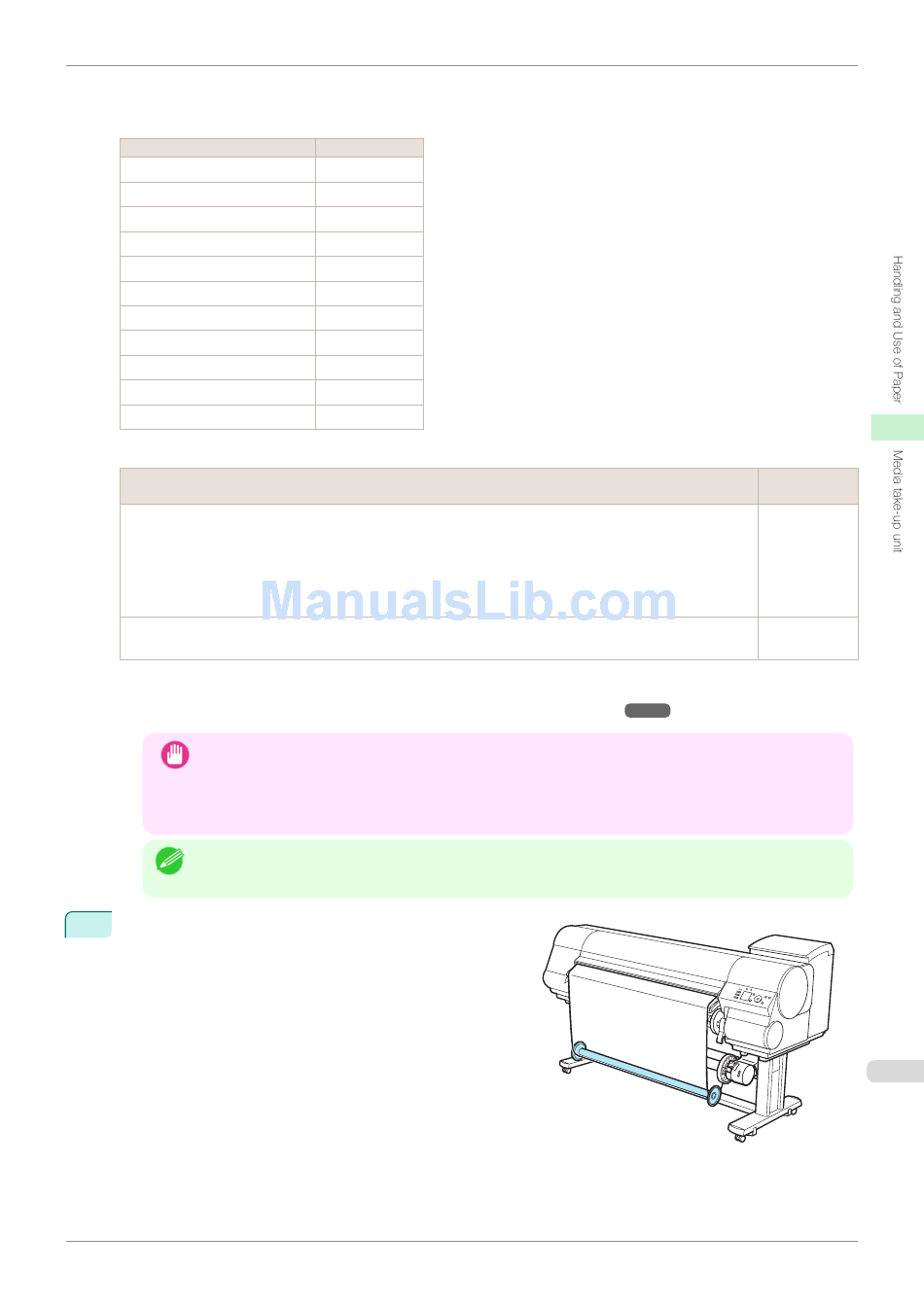

Set the Weight Roll gently on top of the slack in the roll pa-
per.
User's Guide
Weight Roll to Use
D
A+E
A+G
E
B+E
C
E
B+D
G
C+E
D+E
Roll Type
Loading the Rewind Spool on the Media Take-up Unit
P.559
➔
Weight Flange to
Use
Weight Flange
1 (*1)
Weight Flange
2
