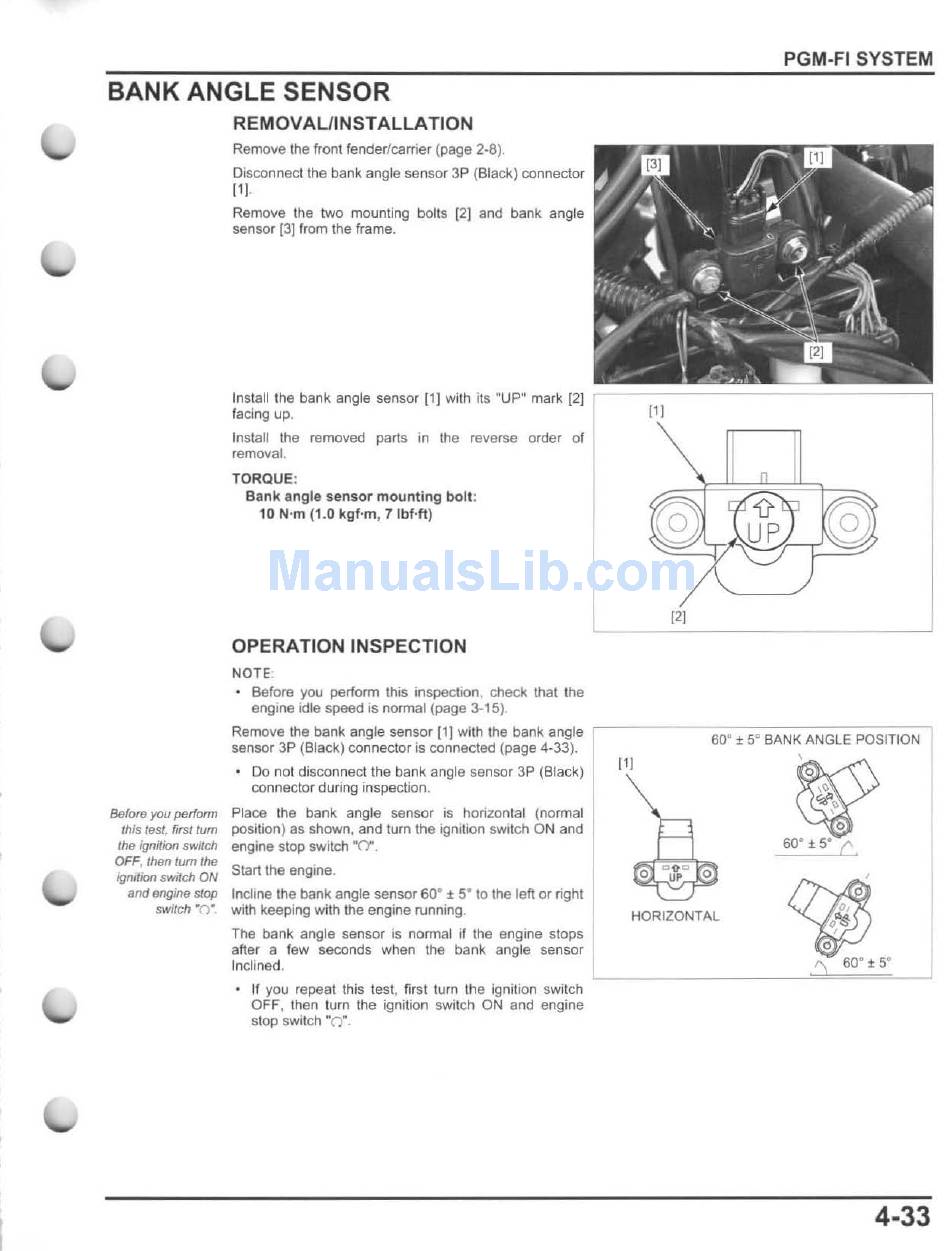

BANK ANGLE SENSOR
REMOVAL/INSTALLA n ON
Befora you perform
this test. first tum
the
Ignition switch
OFF,
then tum
Ihe
Ignition switch ON
Remove the front fender/carrier (page 2·6).
Disconnect the bank angle sensor 3P (Black) connector
[11·
Remove the two mounting bolts [2] and bank angle
sensor
[3J
from the frame.
Inslalilhe bank angle sensor [1] with its MUpM mark [2]
facing up.
It I
Install the removed parts in the reverse order of
removal.
TORQUE:
Bank angle sensor mounting bolt:
10 N·m (1.0 kgf·m , 7lbHt)
OPERAT[ON INSPECTION
NOTE
• Before you perform this inspectJon. check that the
engine idle speed is normal (page 3·15).
Remove the bank angle sensor [1) with the bank angle , - -
sensor
3P
(Black) connector is connected (page 4-33).
• Do not disconnect the bank angle sensor 3P (Black)
connector during inspection.
Place the bank angle sensor is horizontal (normal
position) as shown, and turn the ignition SWitch ON and
engine stop switch
orr.
Start the engine.
Incline the bank angle sensor 60- ± 5- to the left or right
[lJ
PGM·FI SYSTEM
[21
60· ± 5° BANK ANGLE POSITION
and engine stop
swirch ·0 ·
with keeping with the engine running.
l
HORIZONTAL
9/!
' '
."Ii
The bank angle sensor is normal if the engine stops
after a few seconds when the bank angle sensor
Inclined .
If you repeat this test, first turn the ignition switch
OFF, then turn the ignition switch ON and engine
stop SWitch R O".
,
'\
60·
±
5·
4·33
