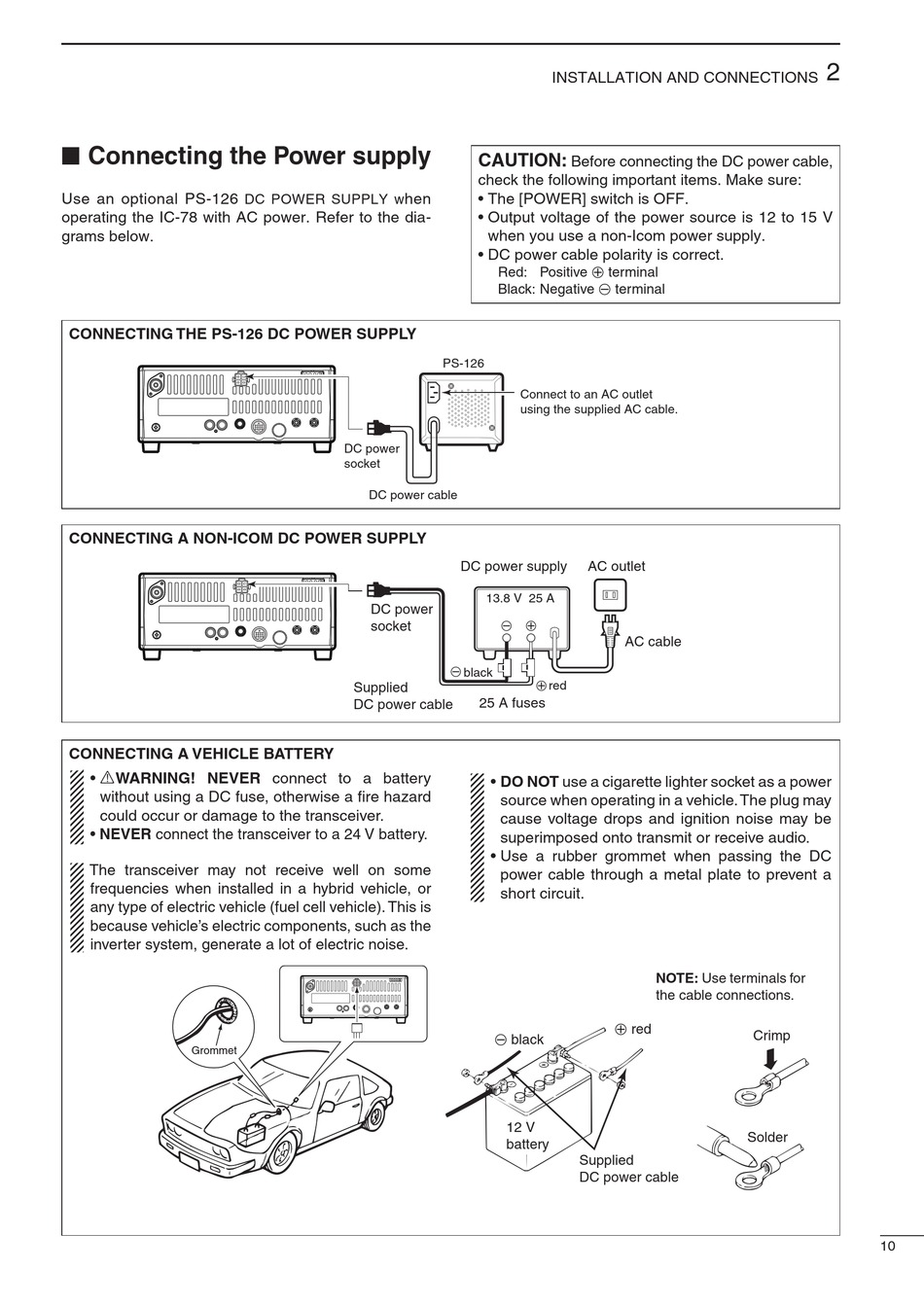

Connecting the Power supply

Use an optional PS-126
operating the IC-78 with AC power. Refer to the dia-
grams below.
CONNECTING THE PS-126 DC POWER SUPPLY
CONNECTING A NON-ICOM DC POWER SUPPLY
CONNECTING A VEHICLE BATTERY
• RWARNING! NEVER connect to a battery
without using a DC fuse, otherwise a fire hazard
could occur or damage to the transceiver.
• NEVER connect the transceiver to a 24 V battery.
The transceiver may not receive well on some
frequencies when installed in a hybrid vehicle, or
any type of electric vehicle (fuel cell vehicle). This is
because vehicle's electric components, such as the
inverter system, generate a lot of electric noise.
Grommet
hen
DC POWER SUPPLY w
13
9 10 11 12
5 6 7 8
1 2 3 4
DC power
socket
DC power cable
DC power
socket
13
9 10 11 12
5 6 7 8
1 2 3 4
Supplied
DC power cable
INSTALLATION AND CONNECTIONS
CAUTION:
Before connecting the DC power cable,
check the following important items. Make sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12 to 15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red: Positive + terminal
Black: Negative _ terminal
PS-126
Connect to an AC outlet
using the supplied AC cable.
DC power supply
AC outlet
13.8 V 25 A
_ +
_ black
+ red
25 A fuses
• DO NOT use a cigarette lighter socket as a power
source when operating in a vehicle. The plug may
cause voltage drops and ignition noise may be
superimposed onto transmit or receive audio.
• Use a rubber grommet when passing the DC
power cable through a metal plate to prevent a
short circuit.
+ red
_ black
12 V
battery
Supplied
DC power cable
AC cable
NOTE: Use terminals for
the cable connections.
Crimp
Solder
