CANISTER INSPECTION _ _
~_
3-30

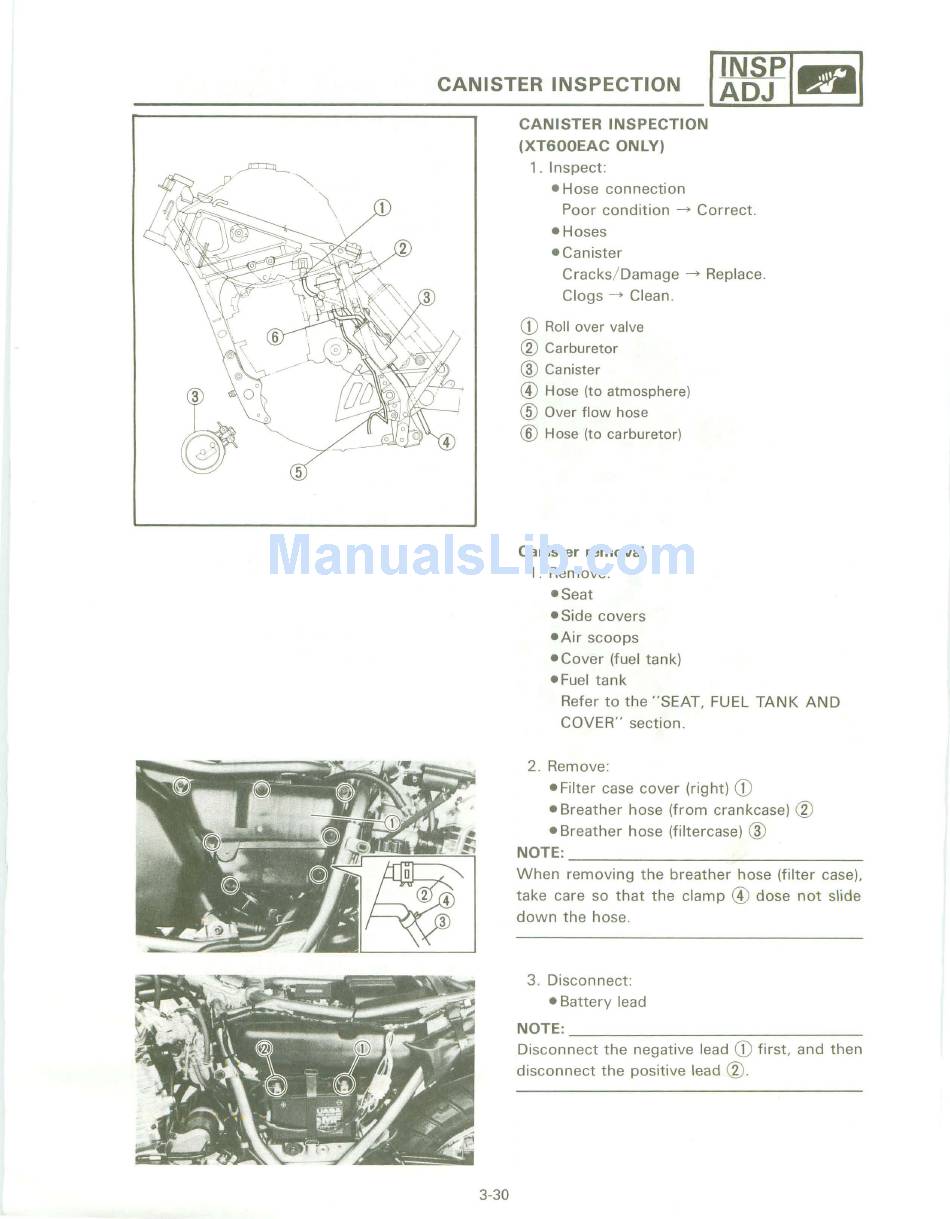

CANISTER INSPECTION
(XT600EAC ONLY)
1. Inspect:
- Hose connection
Poor condition
--4
Correct .
- Hoses
-Canister
Cracks/ Damage
--4
Replace .
Clogs
--4
Clean .
CD
Roll over valve
®
Carburetor
®
Canister
@
Hose (to atmosphere)
®
Over flow hose
®
Hose (to carburetor)
Canister removal
1. Remove :
-Seat
- Side covers
-Air scoops
- Cover (fuel tank)
-Fuel tank
Refer to the "SEAT, FUEL TANK AND
COVER" section.
2 . Remove:
- Filter case cover (right)
CD
- Breather hose (from crankcase)
®
- Breather hose (filtercase)
®
NOTE: __________________________ __
When removing the breather hose (filter case),
take care so that the clamp
@
dose not slide
down the hose .
3 . Disconnect:
- Battery lead
NOTE: ____________________________ _
Disconnect the negative lead
CD
first. and then
disconnect the positive lead
® .
