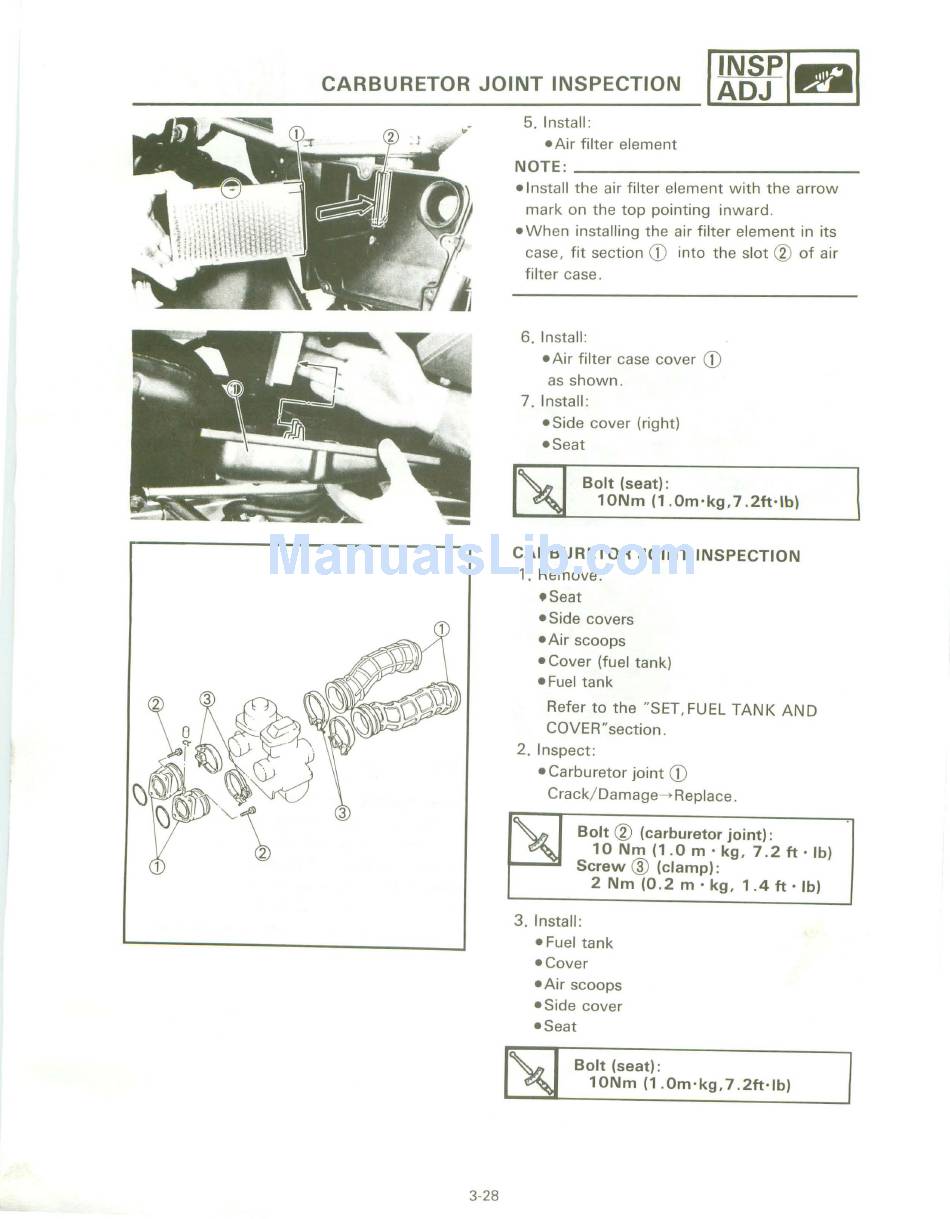

CARBURETOR JOINT INSPECTION _
_~_
------------------------------------------
3-28
5. Install:
- Air filter element
NOTE: ________________________ __
-Install the air filter element with the arrow
mark on the top pointing inward.
-When installing the air filter element in its
case, fit section
CD
into the slot
®
of air
filter case .
6 . Install:
- Air filter case cover
CD
as shown .
7. Install :
- Side cover (right)
-Seat
Bolt (seat):
10Nm (1 .Om-kg, 7 .2ft-Ib)
CARBURETOR JOINT INSPECTION
1. Remove :
.Seat
-Side covers
-Air scoops
- Cover (fuel tank)
-Fuel tank
Refer to the "SET,FUEL TANK AND
COVER"section .
2 . Inspect:
- Carburetor joint
CD
Crack/ Damage --> Replace .
Bolt
®
(carburetor joint):
10 Nm (1.0 m - kg, 7 . 2 ft -Ib)
Screw
@
(clamp):
2 Nm (0.2 m - kg, 1.4 ft - Ib)
3. Install:
- Fuel tank
-Cover
-Air scoops
-Side cover
-Seat
Bolt (seat) :
10Nm (1 .Om-kg, 7 .2ft-Ib)
