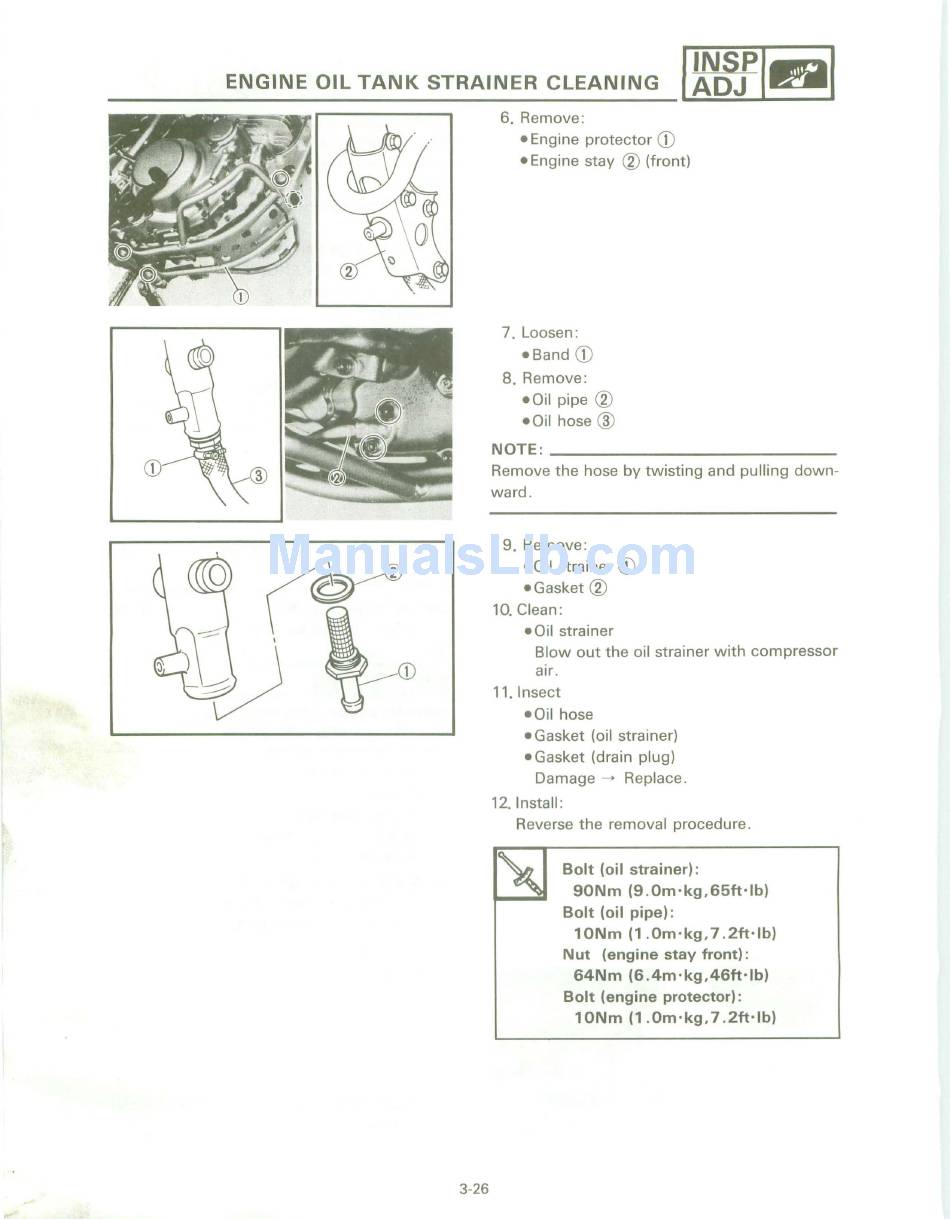

ENGINE OIL TANK STRAINER CLEANING _
_~_
CD
3-26
6. Remove :
- Engine protector
CD
- Engine stay
®
(front)
7 . Loosen:
-Sand
CD
8 . Remove:
-O il
pipe
®
-O il hose
®
NOTE: ________________________ __
Remove the hose by twisting and pulling down-
ward .
9. Remove:
-O il strainer
CD
-Gasket
®
10. Clean :
- Oil strainer
Slow out the oil strainer with compressor
air .
11. Insect
-O il
hose
- Gasket (oil strainer)
-Gasket (drain plug)
Damage -- Replace .
12. Install:
Reverse the removal procedure .
Bolt (oil strainer):
90Nm (9 .0m·kg,65ft-lb)
Bolt (oil pipe):
10Nm (1 .Om·kg , 7 .2ft·lb)
Nut (engine stay front):
64Nm (6.4m·kg,46ft·lb)
Bolt (engine protector):
10Nm (1 .Om·kg , 7 .2ft·lb)
