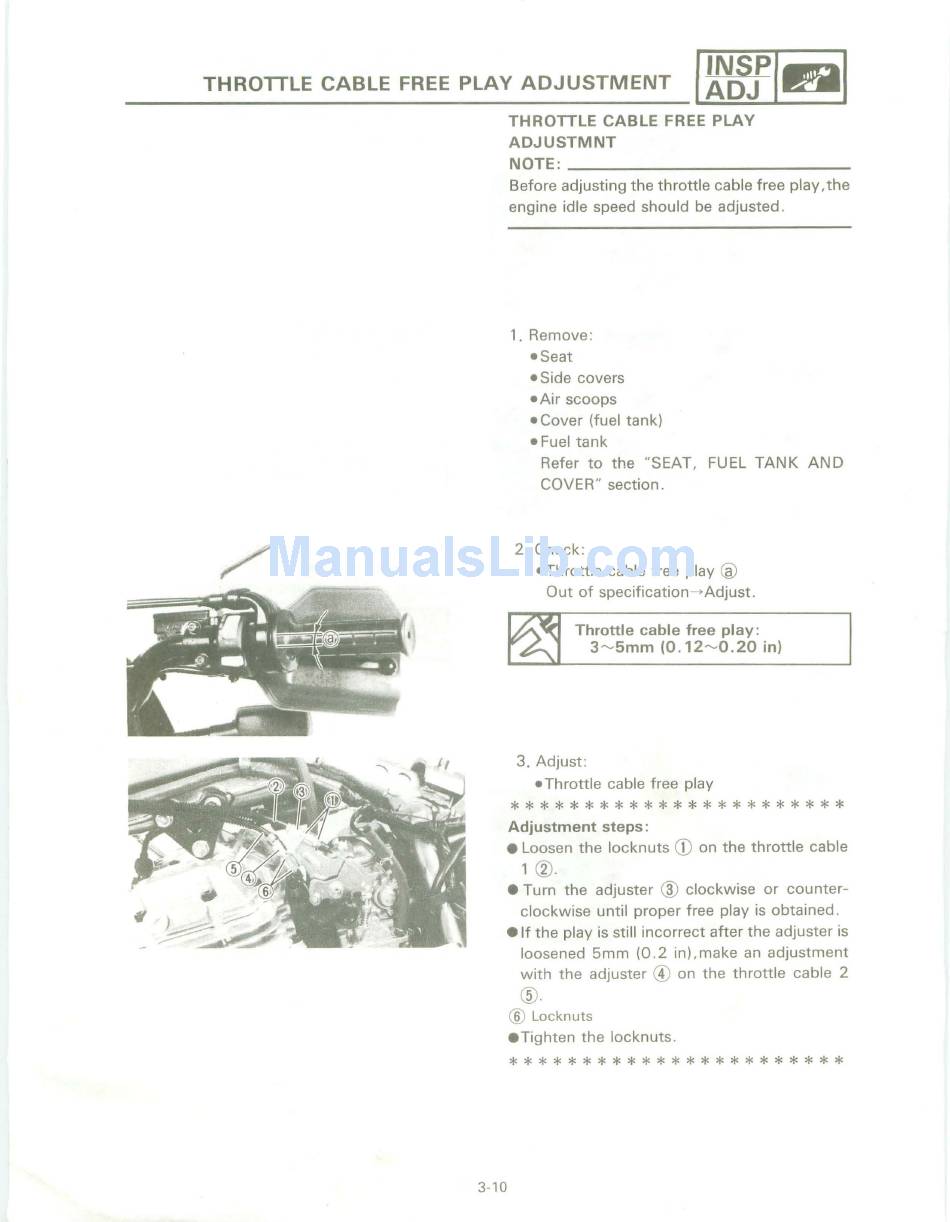

THROlTLE CABLE FREE PLAY ADJUSTMENT
I~J.r11ll!il1
THROTTLE CABLE FREE PLAY
ADJUSTMNT
3-10
NOTE: ________________________ _
Before adjusting the throttle cable free play, the
engine idle speed should be adjusted.
1. Remove:
-Seat
- Side covers
-Air scoops
-Cover (fuel tank)
- Fuel tank
Refer to the "SEAT, FUEL TANK AND
COVER" section.
2.
Check:
-Throttle cable free play
@
Out of specification-+Adjust.
Throttle cable free play:
3'"'-'5mm (0.12'"'-'0.20 in)
3.
Adjust:
-Throttle cable free play
***********************
Adjustment steps:
• Loosen the locknuts
CD
on the throttle cable
1
® .
• Turn the adjuster
®
clockwise or counter-
clockwise until proper free play is obtained .
• If the play is still incorrect after the adjuster is
loosened 5mm (0.2 in),make an adjustment
with the adjuster
®
on the throttle cable
2
@.
®
Locknuts
.Tighten the locknuts.
***********************
