CABLE ROUTING
I
SPEC
l 1 ' 1 1
--------------------------------------------------------

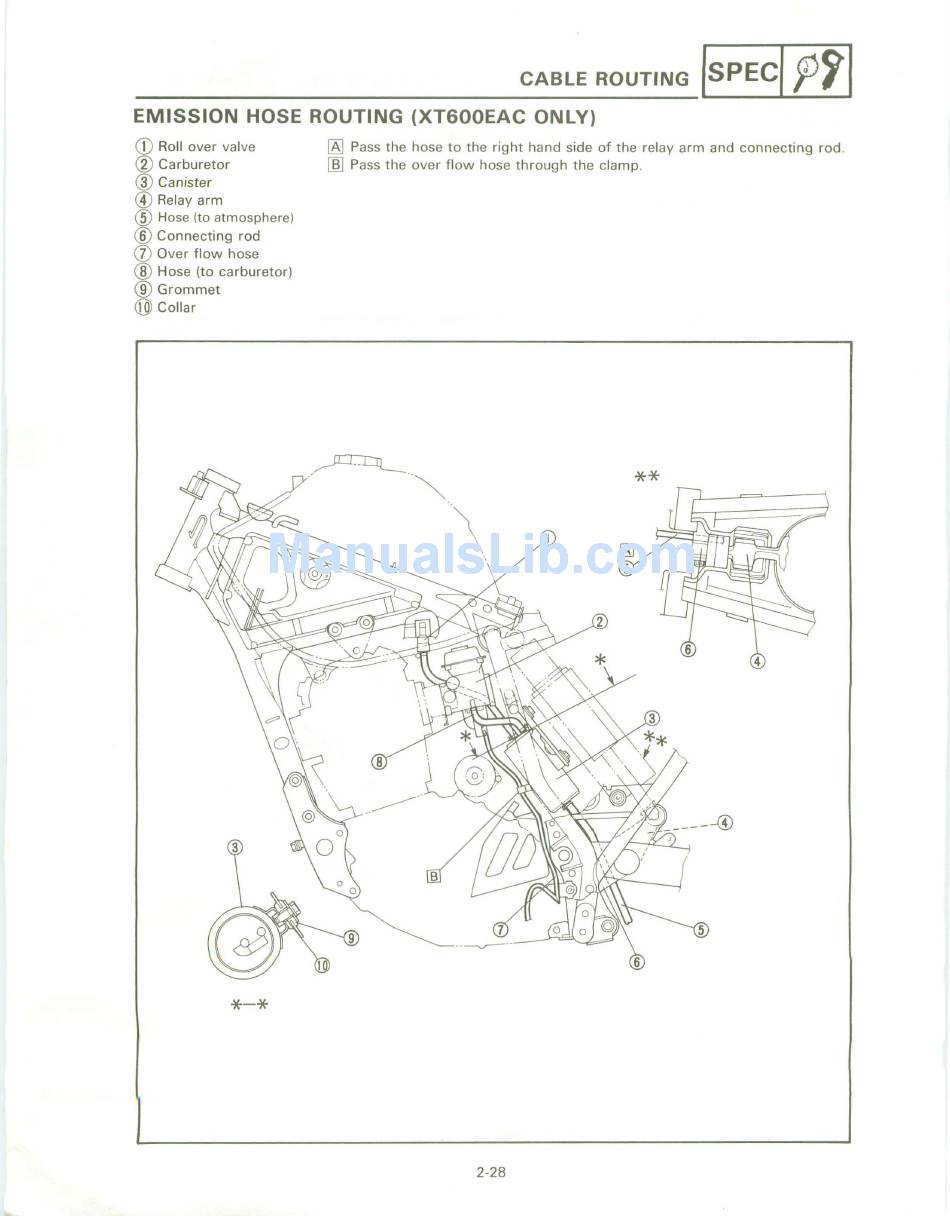

EMISSION HOSE ROUTING (XT600EAC ONLY)
CD
Rol l over valve
®
Carburetor
®
Canister
®
Relay arm
®
Hose (to atmosphere)
®
Connecting rod
(J)
Over flow hose
®
Hose (to carburetor)
®
Grommet
@
Collar
[AJ
Pass the hose to the right hand side of the rel ay arm and connecting rod .
rn:J
Pass the over flow hose through the clamp .
~
..~
\
2-28
!Al
5
**
6
