Yamaha XT 600 AC Service Manual page 48

Oil hose
High tention code
Ignition coil
Band
Vacuum hose
Starter relay lead
Flap
Clamp
Horn
6

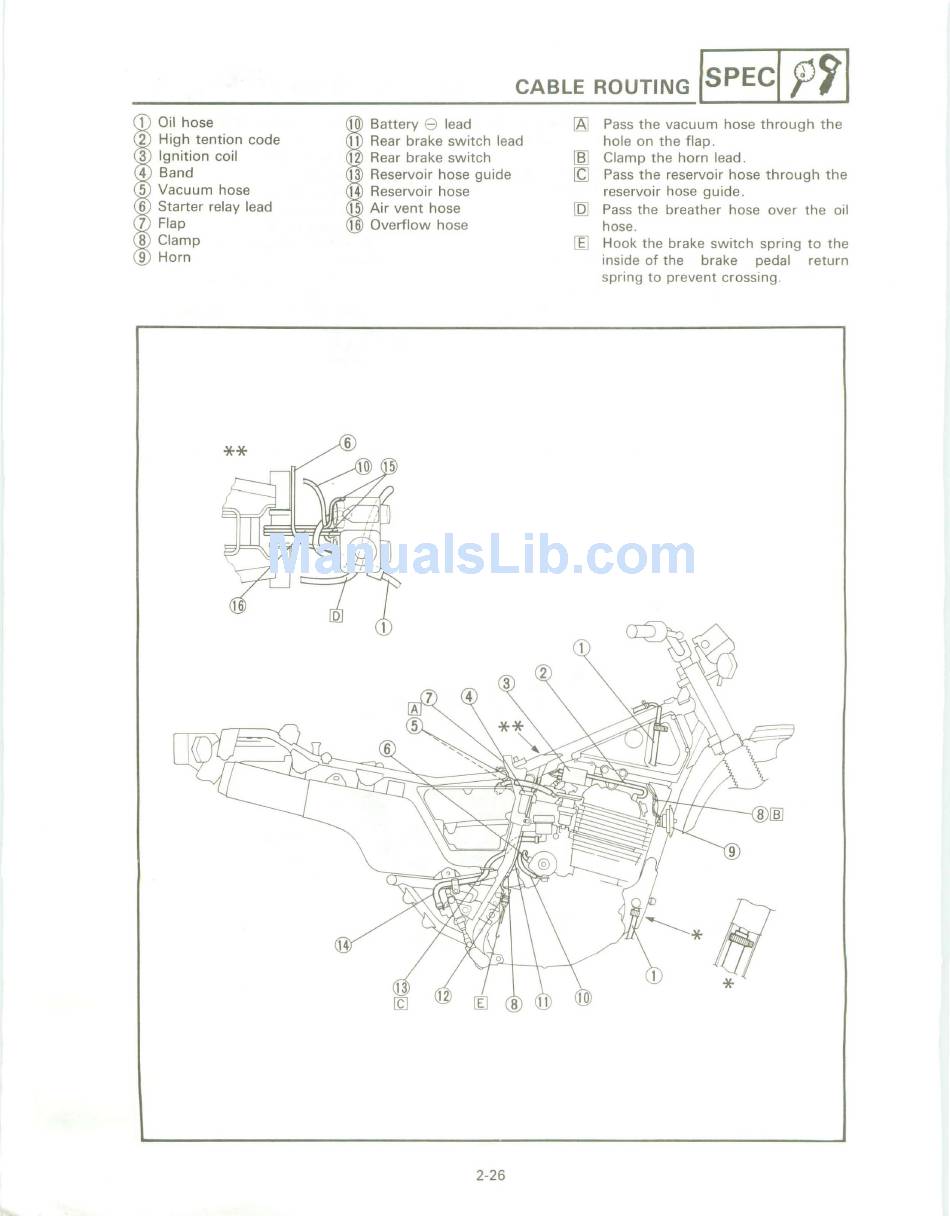

CABLE ROUTING
ISPECI7'~1
Battery
8
lead
Rear brake switch lead
Rear brake switch
Reservoir hose guide
Reservoir hose
Air vent hose
Overflow hose
2-26
181
Pass the vacuum hose through the
hole on the flap .
[BJ
Clamp the horn lead.
[g
Pass the reservoir hose through the
reservoir hose guide .
[Q]
Pass the breather hose over the oil
hose.
IE
Hook the brake switch spring to the
inside of the brake pedal ret urn
spring to prevent crossing .
