Oil pump
Oil filter
Cam shaft
Oil delivery pipe
Main axle
Drive axle
Oil hose

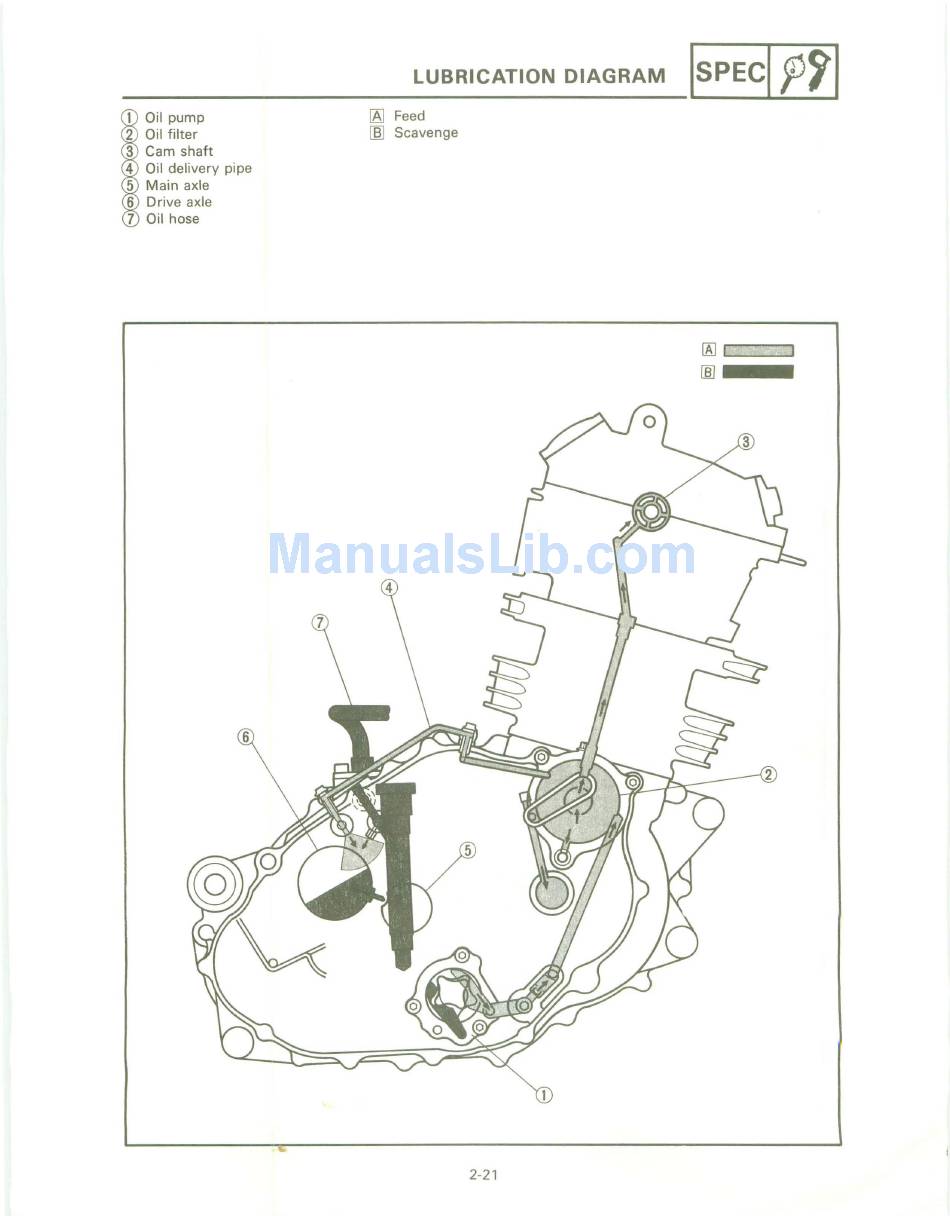

LUBRICATION DIAGRAM
ISPECI
jJ~1
IN
Feed
ffil
Scavenge
2-21
[A)
1 - 1 _ _
~
rID • • _
