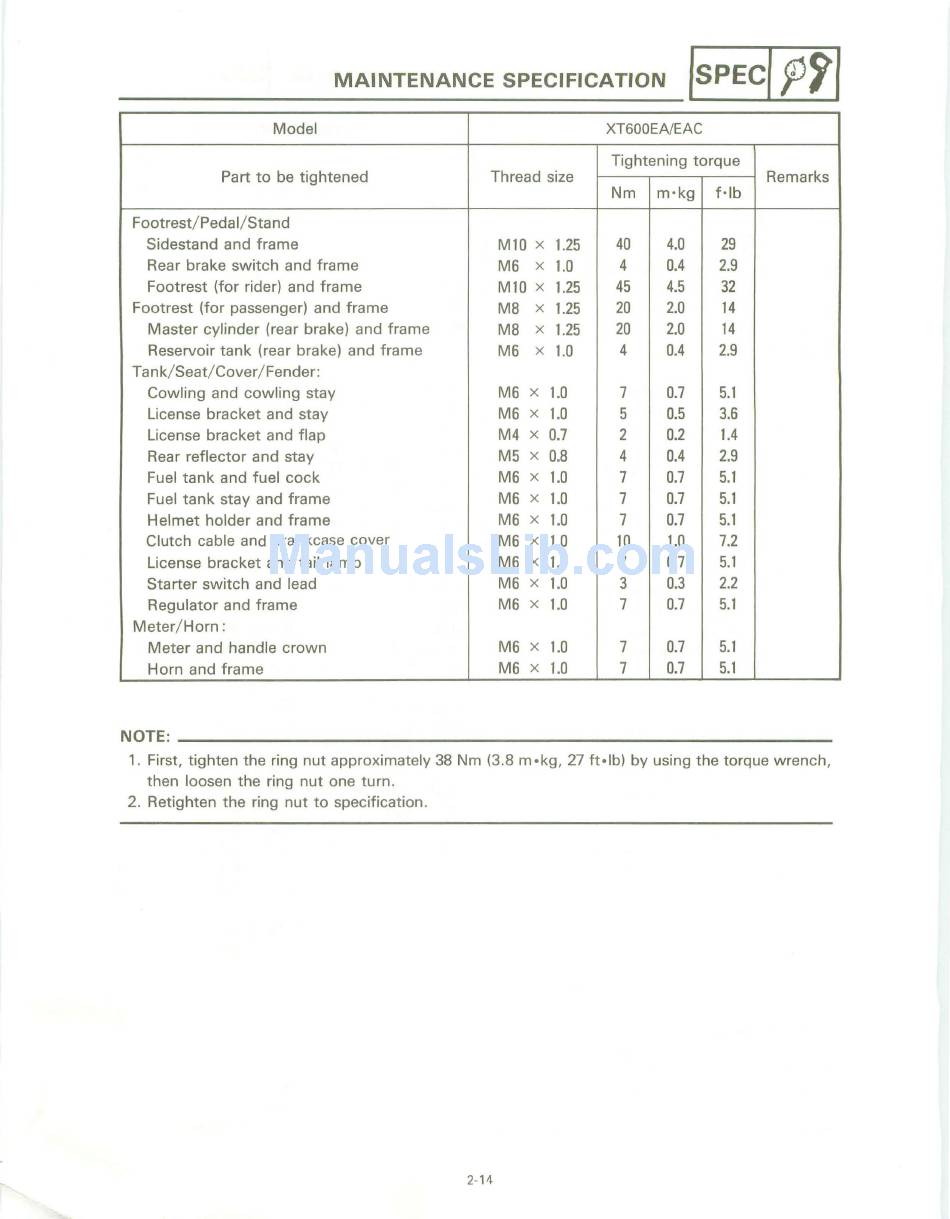

MAINTENANCE SPECIFICATION
ISPECI
Pfl
Model
XT600EA/EAC
Tightening torque
Part to be tightened
Thread size
Remarks
Nm
mokg
folb
Footrest/
Pedal
/
Stand
Sidestand and frame
Ml0
x
1.25
40
4.0
29
Rear brake switch and frame
M6
x
1.0
4
0.4
2.9
Footrest (for rider) and frame
Ml0
x
1.25
45
4.5
32
Footrest (for passenger) and frame
MS
x
1.25
20
2.0
14
Master cylinder (rear brake) and frame
MS
x
1.25
20
2.0
14
Reservoir tank (rear brake) and frame
M6
x
1.0
4
0.4
2.9
Tank/ Seat/ Cover/
Fender:
Cowling and cowling stay
M6
x
1.0
7
0.7
5.1
License bracket and stay
M6
x
1.0
5
0.5
3.6
License bracket and flap
M4
x
0.7
2
0.2
1.4
Rear reflector and stay
M5
x
O.S
4
0.4
2.9
Fuel tank and fuel cock
M6
x
1.0
7
0.7
5.1
Fuel tank stay and frame
M6
x
1.0
7
0.7
5.1
Helmet
holder and frame
M6
x
1.0
7
0.7
5.1
Clutch cable and crankcase cover
M6
x
1.0
10
1.0
7.2
License bracket and tail lamp
M6
x
1.0
7
0.7
5.1
Starter switch and lead
M6
x
1.0
3
0.3
2.2
Regulator and frame
M6
x
1.0
7
0.7
5.1
Meter/
Horn :
Meter and handle crown
M6
x
1.0
7
0.7
5.1
Horn and frame
M6
x
1.0
7
0.7
5.1
NOTE: __________________________________________________________ ___
1.
First, tighten the ring nut approximately 38 Nm (3 .8 m.kg, 27 ft.lb) by using the torque wrench,
then loosen the ring nut one turn.
2.
Retighten the ring nut to specification.
2-14
