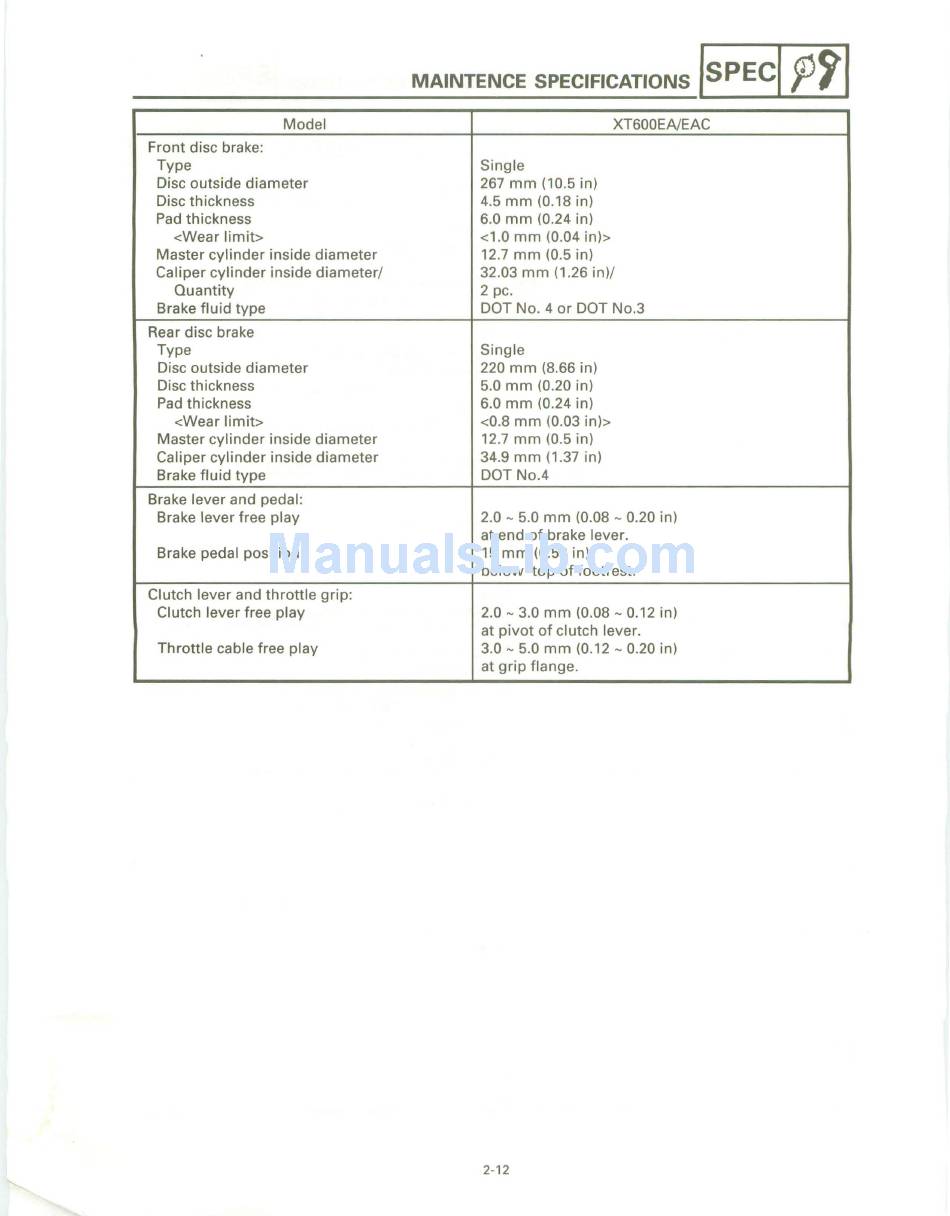

MAINTENCE SPECIFICATIONS
ISPEcl
9'11
Model
XT600EA/EAC
Front disc brake:
Type Single
Disc outside diameter 267 mm (10.5 in)
Disc thickness 4.5 mm (0.18 in)
Pad thickness
6.0 mm (0.24 in)
<Wear limit>
<1 .0 mm (0.04 in»
Master cylinder inside diameter 12.7 mm (0.5 in)
Caliper cylinder inside diameter/ 32 .03 mm (1 .26 in)/
Quantity 2 pc.
Brake fluid type DOT No.4 or DOT No.3
Rear disc brake
Type Single
Disc outside diameter
220 mm (8.66 in)
Disc thickness
5.0 mm (0.20 in)
Pad thickness 6.0 mm (0.24 in)
<Wear limit> <0.8 mm (0.03 in»
Master cylinder inside diameter
12.7 mm (0.5 in)
Caliper cylinder inside diameter 34.9 mm (1.37 in)
Brake fluid type DOT No.4
Brake lever and pedal :
Brake lever free play 2.0 - 5.0 mm (0.08 - 0.20 in)
at end of brake lever.
Brake pedal position
15 mm (0.59 in)
below top of footrest.
Clutch lever and throttle grip:
Clutch lever free play 2.0 - 3.0 mm (0.08 - 0.12 in)
at pivot of clutch lever.
Throttle cable free play 3.0 - 5.0 mm (0 .12 - 0.20 in)
at grip flange.
2-12
