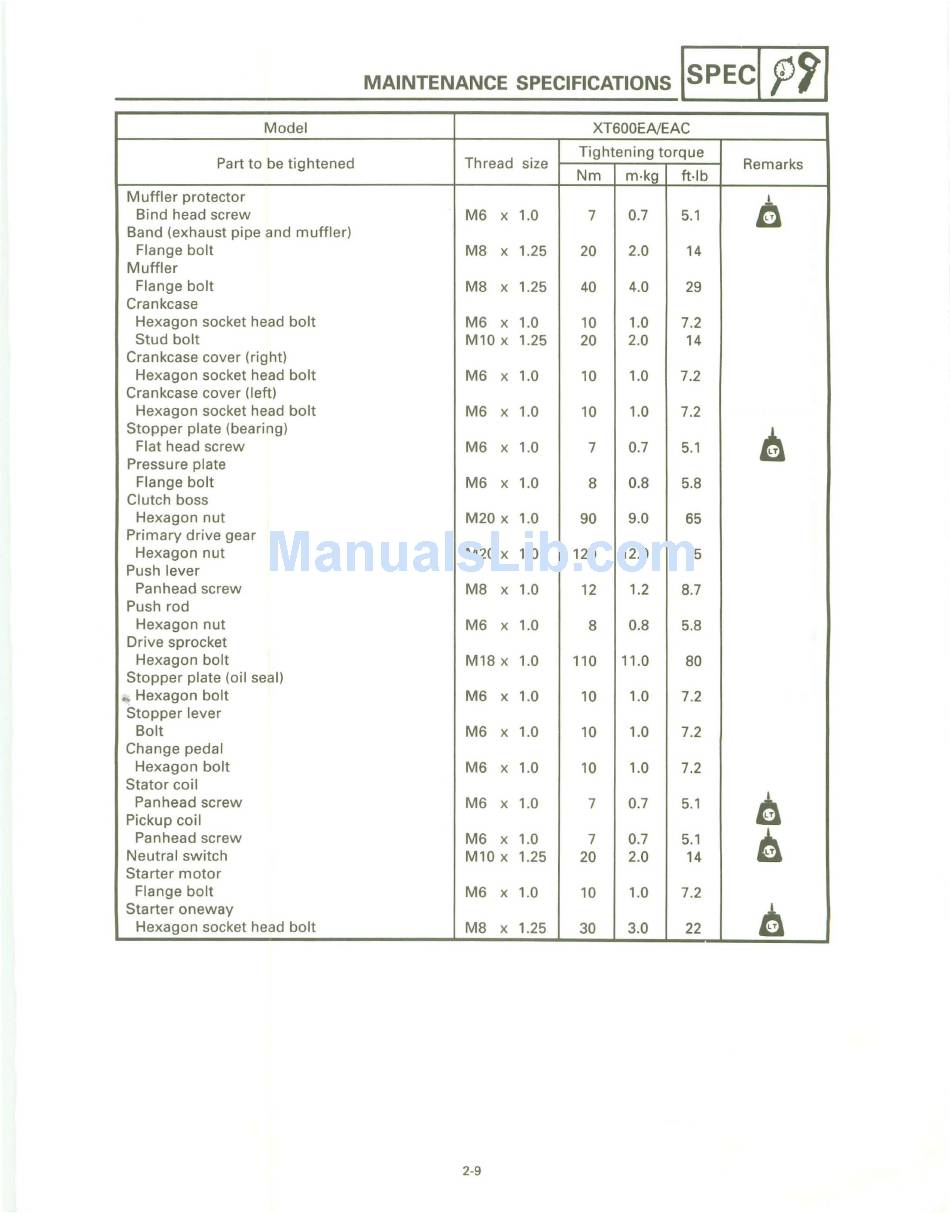

MAINTENANCE SPECIFICATIONS
ISPECI
)Ofl
Model
XT600ENEAC
Part to be tightened
Thread size
Tightening torque
Remarks
Nm
m·kg
ft·lb
Muffler protector
1
Bind head screw
M6 x 1.0
7
0.7
5.1
a
Band (exhaust pipe and muffler)
Flange bolt
M8 x 1.25
20
2.0
14
Muffler
Flange bolt
M8 x 1.25
40
4.0
29
Crankcase
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Stud bolt
M10 x 1.25
20
2.0
14
Crankcase cover (right)
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Crankcase cover (left)
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Stopper plate (bearing)
a
Flat head screw
M6 x 1.0
7
0.7
5.1
Pressure plate
Flange bolt
M6 x 1.0
8
0.8
5.8
Clutch boss
Hexagon nut
M20 x 1.0
90
9.0
65
Primary drive gear
Hexagon nut
M20 x 1.0
120
12.0
85
Push lever
Pan head screw
M8 x 1.0
12
1.2
8.7
Push rod
Hexagon nut
M6 x 1.0
8
0.8
5.8
Drive sprocket
Hexagon bolt
M18 x 1.0
110
11 .0
80
Stopper plate (oil seal)
...
Hexagon bolt
M6 x 1.0
10
1.0
7.2
Stopper lever
Bolt
M6 x 1.0
10
1.0
7.2
Change pedal
Hexagon bolt
M6 x 1.0
10
1.0
7.2
Stator coil
Pan head screw
M6 x 1.0
7
0.7
5.1
a
Pickup coil
Pan head screw
M6 x 1.0
7
0.7
5.1
A
Neutral switch
M10 x 1.25
20
2.0
14
Starter motor
Flange bolt
M6 x 1.0
10
1.0
7.2
Starter oneway
a
Hexagon socket head bolt
M8 x 1.25
30
3.0
22
2-9
