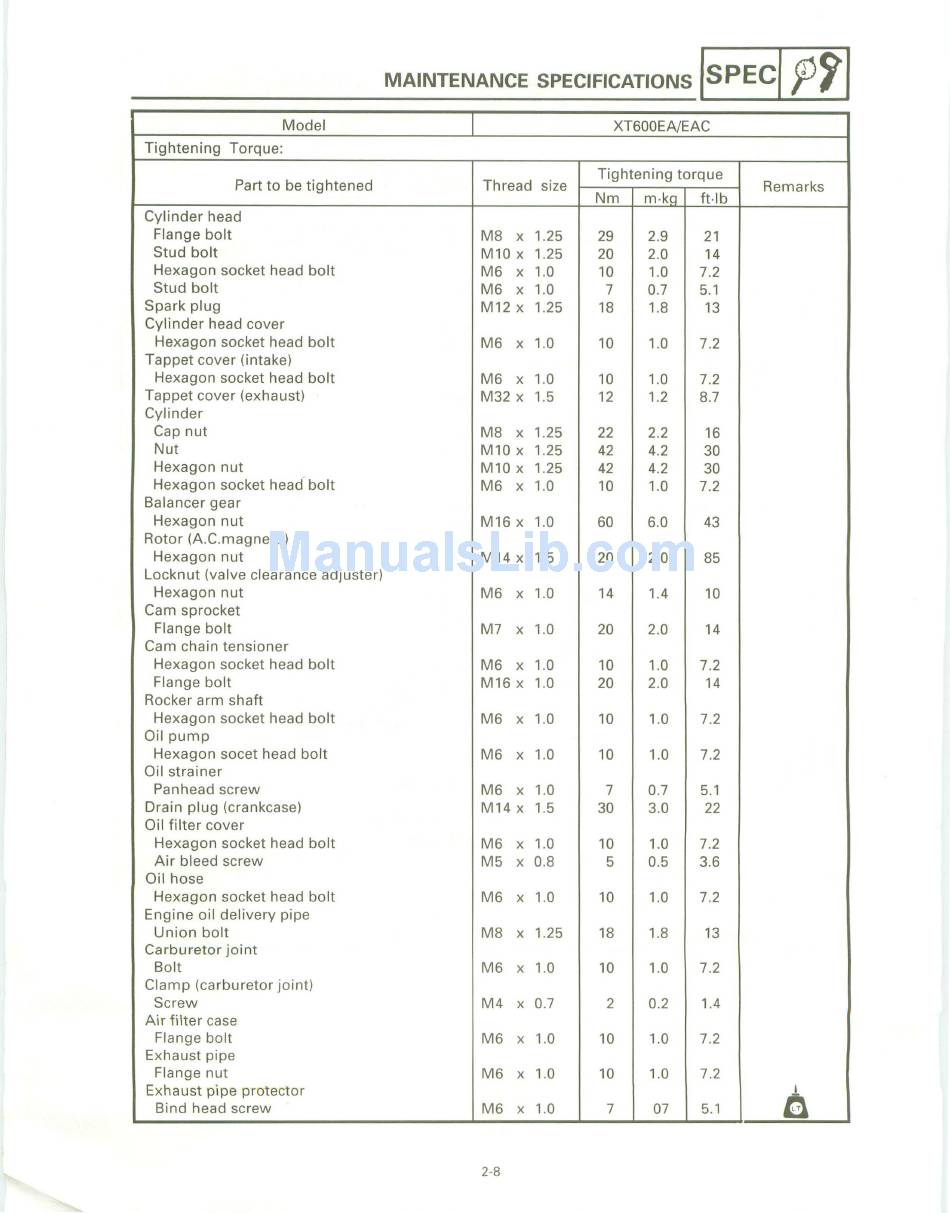

MAINTENANCE SPECIFICATIONS
ISPEC/
I'll
Model
XT600EA/EAC
Tightening
Torque:
Part to be tightened
Thread size
Tightening torque
Remarks
Nm
m·kg
ft ·lb
Cylinder head
Flange bolt
M8 x 1.25
29
2.9
21
Stud bolt
Ml0 x 1.25
20
2.0
14
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Stud bolt
M6 x 1.0
7
0.7
5.1
Spark plug
M12 x 1.25
18
1.8
13
Cylinder head cover
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Tappet cover (intake)
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Tappet cover (exhaust)
M32 x 1.5
12
1.2
8.7
Cylinder
Cap nut
M8 x 1.25
22
2.2
16
Nut
Ml0 x 1.25
42
4.2
30
Hexagon nut
Ml0 x 1.25
42
4.2
30
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Balancer gear
Hexagon nut
M16
x
1.0
60
6.0
43
Rotor (A.C.magneto)
Hexagon nut
M14
x
1.5
120
12.0
85
Locknut (valve clearance adjuster)
Hexagon nut
M6 x 1.0
14
1.4
10
Cam sprocket
Flange bolt
M7
x
1.0
20
2.0
14
Cam chain tensioner
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Flange bolt
M16
x
1.0
20
2.0
14
Rocker arm shaft
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Oil pump
Hexagon socet head bolt
M6
x
1.0
10
1.0
7.2
Oil strainer
Panhead screw
M6 x 1.0
7
0.7
5.1
Drain plug (crankcase)
M14
x
1.5
30
3.0
22
Oil filter cover
Hexagon socket head bolt
M6
x
1.0
10
1.0
7.2
Air bleed screw
M5
x
0.8
5
0.5
3.6
Oil hose
Hexagon socket head bolt
M6 x 1.0
10
1.0
7.2
Engine oil delivery pipe
Union bolt
M8 x 1.25
18
1.8
13
Carburetor joint
Bolt
M6
x
1.0
10
1.0
7.2
Clamp (carburetor joint)
Screw
M4
x
0.7
2
0.2
1.4
Air filter case
Flange bolt
M6
x
1.0
10
1.0
7.2
Ex
haust pipe
Flange nut
M6 x 1.0
10
1.0
7.2
Exhaust pipe protector
I
Bind head screw
M6
x
1.0
7
07
5.1
a
2-8
