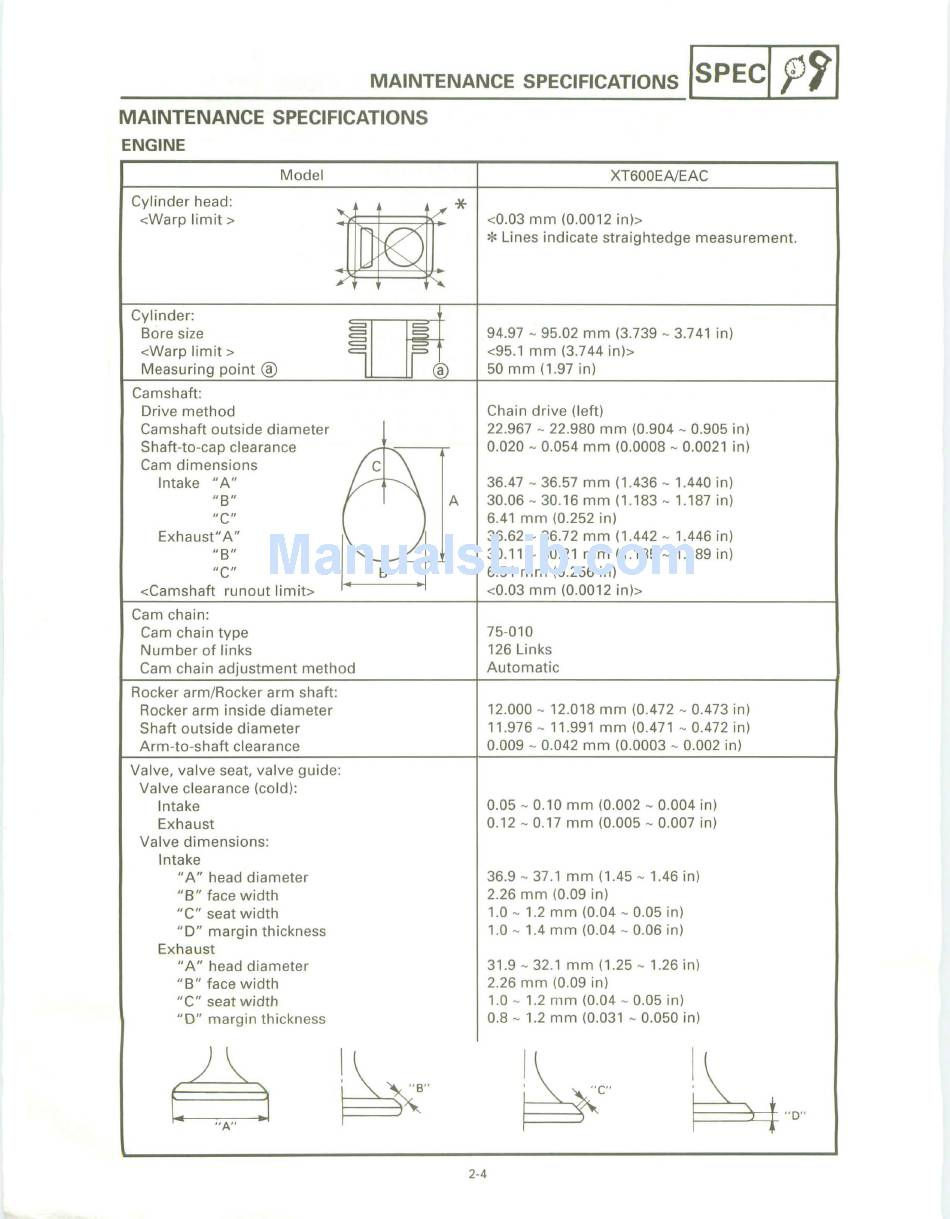

MAINTENANCE SPECIFICATIONS
ISPECI
Jl'~1
MAINTENANCE SPECIFICATIONS
ENGINE
Cylinder head:
<Warp limit>
Cylinder:
80re size
<Warp limit>
Measuring point
®
Camshaft:
Drive method
Model
Camshaft outside diameter
Shaft-to-cap clearance
Cam dimensions
Intake "A"
118
"
Jle"
Exhaust"A"
118"
lie"
<Camshaft runout limit>
Cam chain:
Cam chain type
Number of links
Cam chain adjustment method
Rocker arm/Rocker arm
shaft:
Rocker arm inside diameter
Shaft outside diameter
Arm-to-shaft clearance
Valve, valve seat, valve guide
:
Valve clearance (cold)
:
Intake
Exhaust
Valve dimensions:
Intake
"A" head diameter
"8" face width
"C" seat width
"D" margin thickness
Exhaust
"A" head diameter
"8" face width
"C" seat width
"0"
margin thickness
*
A
B
2-4
XT600EA/EAC
<0.03 mm (0.0012 in»
*
Lines indicate straightedge
measurement.
94.97
-
95.02 mm (3.739
-
3.741 in)
<95.1 mm (3.744 in»
50 mm (1 .97 in)
Chain drive (left)
22.967
-
22.980 mm (0.904
-
0.905 in)
0.020
-
0.054 mm (0.0008
-
0.0021 in)
36.47
-
36.57 mm (1 .436
-
1.440 in)
30 .06
-
30.16 mm (1 .183
-
1.187 in)
6.41 mm (0 .252 in)
36.62
-
36.72 mm (1.442
-
1.446 in)
30 .11
-
30 .21 mm (1 .185
-
1.189 in)
6.51 mm (0.256 in)
<0.03 mm (0.0012 in»
75-010
126 Links
Automatic
12.000
-
12.018 mm (0.472
-
0.473 in)
11.976
-
11.991 mm (0.471
-
0.472 in)
0.009
-
0.042 mm (0.0003
-
0.002 in)
0.05
-
0.10 mm (0.002
-
0.004 in)
0.12
-
0.17 mm (0.005
-
0.007 in)
36.9
-
37 .1 mm (1.45
-
1.46 in)
2.26 mm (0.09 in)
1.0
-
1.2 mm (0.04
-
0.05 in)
1.0
-
1.4 mm (0 .04
-
0.06 in)
31 .9
- 32.
1 mm (1 .25
-
1.26 in)
2.26 mm (0.09 in)
1.0
-
1.2 rnm (0 .04
-
0.05 in)
0.8
-
1.2 mm (0 .031
-
0.050 in)
