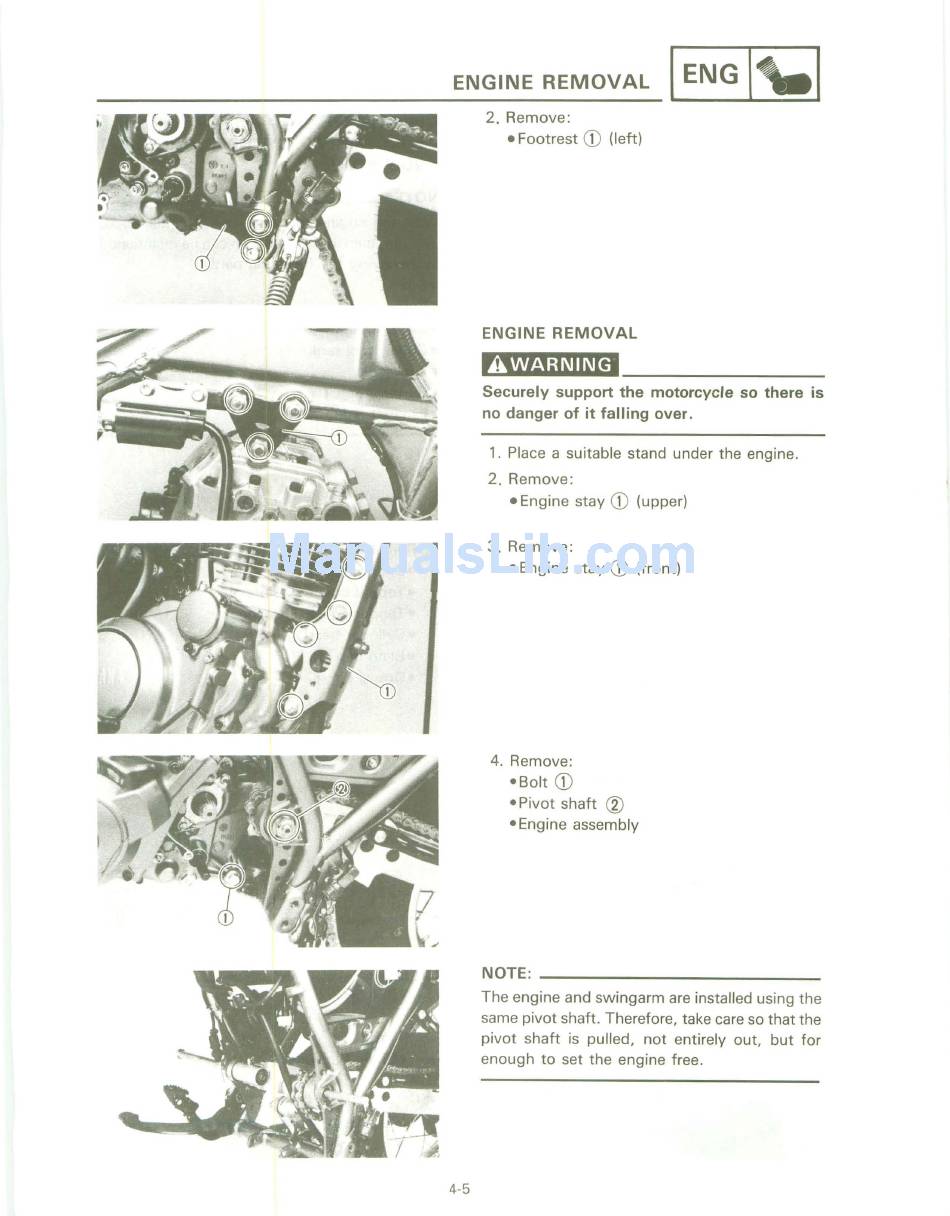

Yamaha XT 600 AC Service Manual page 111

_______________________
E_N_G_I_N_E_R_E_M_O_V_A_L_IENG
~I
4-5
2. Remove:
• Footrest
CD
(left)
ENGINE REMOVAL
AWARNING
Securely support the motorcycle so there is
no danger of it falling over.
1. Place a suitable stand under the engine.
2. Remove:
• Engine stay
CD
(upper)
3. Remove:
• Engine stay
CD
(front)
4. Remove:
-Bolt
CD
- Pivot shaft
®
- Engine assembly
NOTE: ________________________ _
The engine and swingarm are installed using the
same pivot shaft. Therefore, take care so that the
pivot shaft is pulled, not entirely out, but for
enough to set the engine free.
