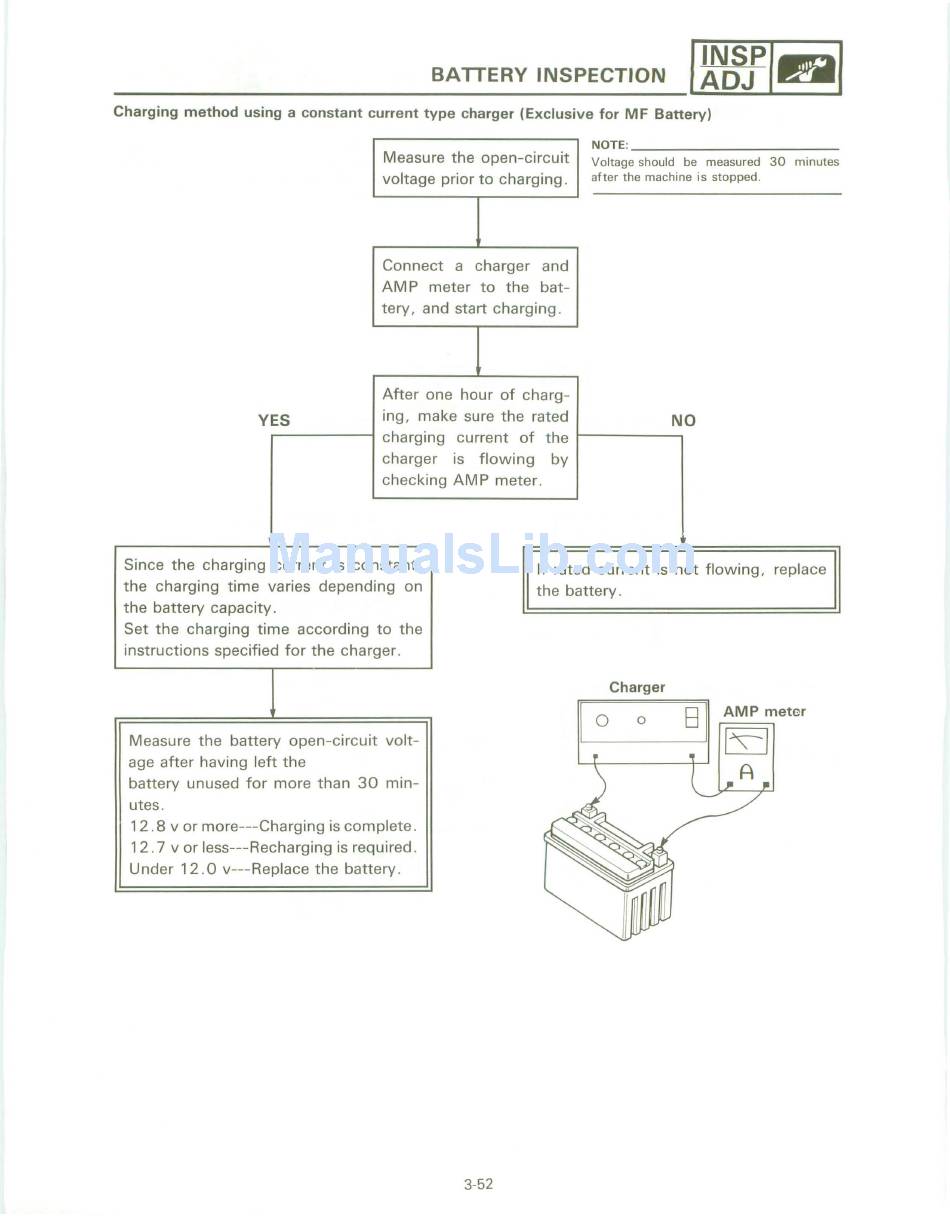

BATTERY INSPECTION
Charging method using a constant current type charger (Exclusive for MF Battery)
NOTE: _ _ _ _ _ _ _ _ _ _ _ _
Measure the open-circuit
V oltage should be measured 30 minutes
voltage prior to charging.
after the machine is stopped .
YES
Connect a charger and
AM P meter to the bat-
tery, and start charging .
After one hour of charg-
ing , make sure the ra t ed
NO
- - - - - - 1
charging current of t he
1--------..,
charger is flowing by
checking AM P meter .
Since the charging current is com:tant ,
the charging time varies depending on
the battery capacity.
If rated current is not flowing, replace
the battery.
Set the charging time according to the
instructions specified for the charger .
Measure the battery open-circuit volt-
age after having left the
battery unused for more than 30 min-
utes .
12.8 v or more---Charging is complete .
12.7 v or less---Recharging is required .
Under 12.0 v-- -Replace the battery .
