4.3 Points to Note on Disassembly and Reassembly

4.3.1 Note on locations prohibited from disassembly

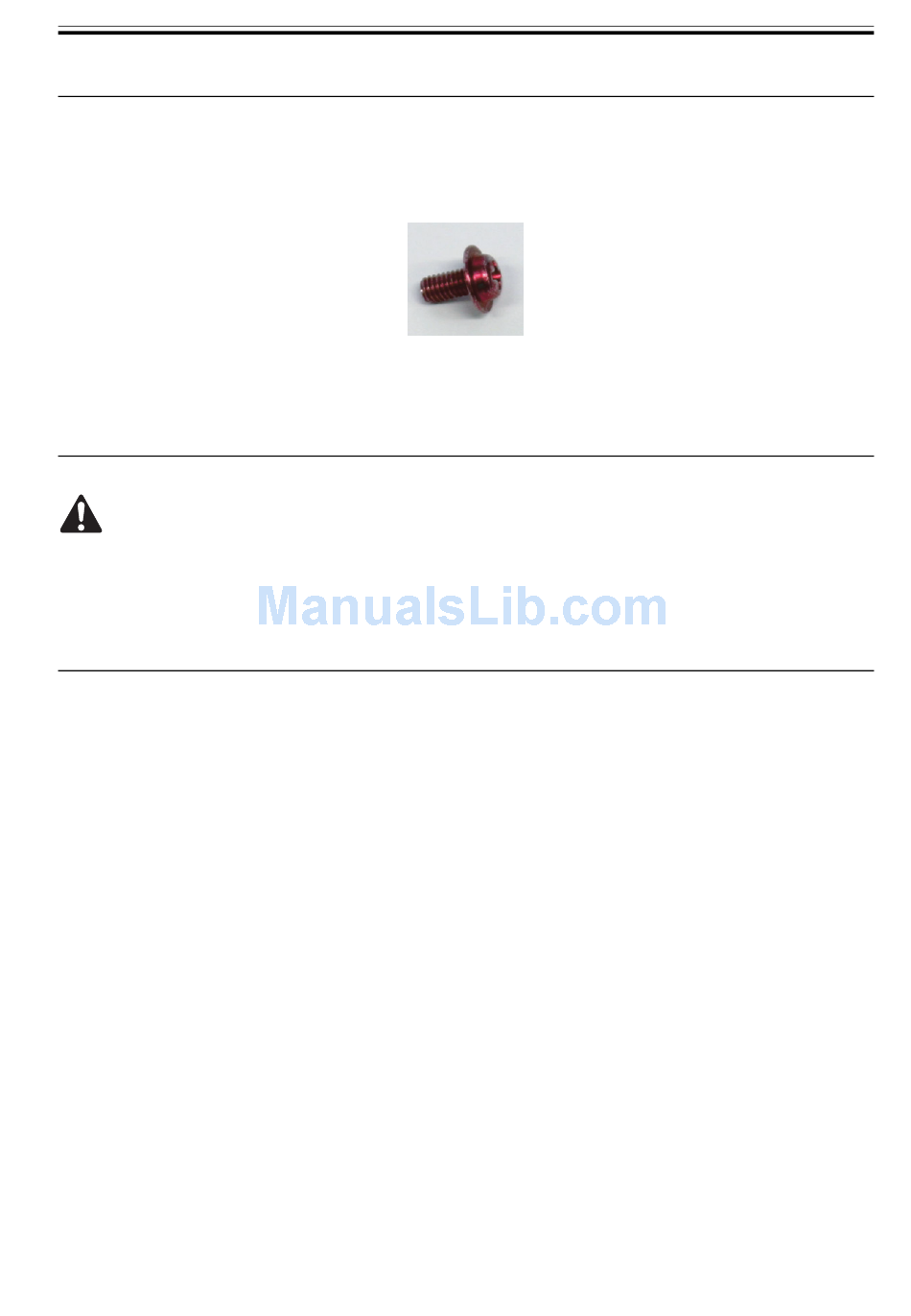

Locations that are prohibited from disassembly and cannot be adjusted outside of the factory have red screws
instead of the regular-colored screws.

4.3.2 Manual carriage movement

Move the carriage as necessary to keep it from coming into contact with any parts that may be removed
during disassembly/reassembly.
The carriage is not movable while it is capped.
In this case, uncap the printer before moving it.
See:
See Disassembly/Reassembly > Tips on Disassembly/Reassembly > Ink Drain > Open Cap/Shift Wiper Unit.
